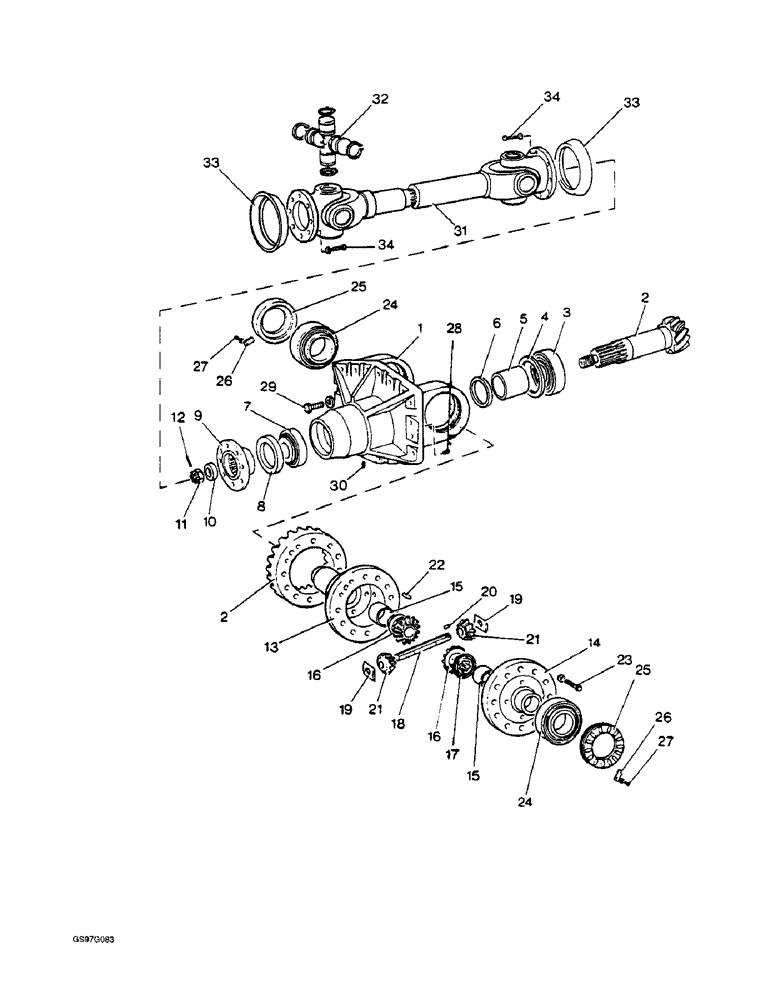

Запчасти Case IH 1210 (5-40) - FINAL DRIVESHAFT AND REDUCTION HOUSING, 1210, 1210Q, 1210G AND 1210SK FOUR-WHEEL DRIVE TRACTORS (05) - STEERING

K951829

DIFFERENTIAL

ASSEMBLY, Kramer 1022301307, no longer available, Includes: Ref. 1 - 30

1шт.

1

K954337

CARRIER

differential, no longer available

1шт.

2

K964827

WHEEL

PINION bevel, includes spiral gear, no longer available

1шт.

3

K964130

tapered roller (Replaces bearing K951832)

1шт.

4

K951833

SHIM

3.3 mm, Kramer 0009932952

1шт.

4

K951834

SHIM

3.4 mm, Kramer 0009933052

1шт.

4

K951835

SHIM

3.5 mm, Kramer 0009933152

1шт.

4

K951836

SHIM

3.6 mm, Kramer 0009933252

1шт.

4

K951837

SHIM

3.7 mm, Kramer 0009933352

1шт.

4

K951838

SHIM

3.8 mm, Kramer 0009933452

1шт.

4

K951839

SHIM

3.9 mm, Kramer 0009933552

1шт.

4

K951840

SHIM

4.0 mm, Kramer 0009933652

1шт.

4

K951841

SHIM

4.1 mm, Kramer 0009933752

1шт.

4

K951842

SHIM

4.2 mm, Kramer 0009933852, no longer available

1шт.

4

K951843

SHIM

4.3 mm, Kramer 0009933952

1шт.

4

K951844

SHIM

4.4 mm, Kramer 0009934052

1шт.

4

K951845

SHIM

4.5 mm, Kramer 0009934152

1шт.

4

K951846

SHIM

4.6 mm, Kramer 0009934252

1шт.

4

K951847

SHIM

4.7 mm, Kramer 0009934352

1шт.

4

K951848

SHIM

4.8 mm, Kramer 0009934452

1шт.

5

K951849

SLEEVE

distance, no longer available

1шт.

6

K951850

SHIM

4.60 mm, Kramer 0009937138

1шт.

6

K951851

SHIM

6.45 mm, Kramer 0009937238

1шт.

6

K951852

SHIM

6.50 mm, Kramer 0009937338

1шт.

6

K951853

SHIM

6.55 mm, Kramer 0009937438

1шт.

6

K951854

SHIM

6.60 mm, Kramer 0009937538, no longer available

1шт.

6

K951855

SHIM

6.65 mm, Kramer 0009937638

1шт.

6

K951856

SHIM

6.70 mm, Kramer 0009937738

1шт.

6

K951857

SHIM

6.75 mm, Kramer 0009937838

1шт.

6

K951858

SHIM

6.80 mm, Kramer 0009937938

1шт.

6

K951859

SHIM

6.85 mm, Kramer 0009938038

1шт.

6

K951860

SHIM

6.90 mm, Kramer 0009938138

1шт.

6

K951861

SHIM

6.95 mm, Kramer 0009938238

1шт.

6

K951862

SHIM

7.00 mm, Kramer 0009938338

1шт.

6

K951863

SHIM

7.05 mm, Kramer 0009938438

1шт.

6

K951864

SHIM

7.10 mm, Kramer 0009938538

1шт.

6

K951865

SHIM

7.15 mm, Kramer 0009938638

1шт.

6

K951866

SHIM

7.20 mm, Kramer 0009938738

1шт.

6

K954338

SHIM

7.25 mm, Kramer 1009976501

1шт.

6

K954339

SHIM

7.30 mm, Kramer 1009976601

1шт.

6

K954340

SHIM

7.35 mm, Kramer 1009976701

1шт.

6

K954341

SHIM

7.40 mm, Kramer 1009976801

1шт.

6

K954342

SHIM

7.45 mm, Kramer 1009976901

1шт.

6

K954343

SHIM

7.50 mm, Kramer 1009977001

1шт.

6

K954344

SHIM

7.55 mm, Kramer 1009977101

1шт.

6

K954345

SHIM

7.60 mm, Kramer 1009977201

1шт.

7

K951867

BEARING

tapered roller, no longer available

1шт.

8

K963976

SEAL

oil (Replaces seal K951868)

1шт.

9

K951869

FLANGE

driveshaft

1шт.

10

K954346

WASHER

Kramer 1009935467

1шт.

11

K951871

NUT

Kramer 0009902624

1шт.

12

K954347

PIN

ion nut, Kramer 7514682141, no longer available

1шт.

13

K951873

HOUSING

CAGE, Kramer 1022330615

1шт.

14

K951874

PLATE

end, cage, Kramer 1022330908

1шт.

15

K951875

BUSHING

Kramer 0009947051

2шт.

16

K951876

GEAR

bevel, Kramer 1022320510

2шт.

17

K951877

WASHER

thrust, Kramer 0009935967

2шт.

18

K951878

PIN

bevel pinions, Kramer 1022320215

1шт.

19

K951879

WASHER

thrust, Kramer 0022320228

2шт.

20

K951880

PIN

locking, Kramer 7512034112

1шт.

21

K951881

GEAR

PINION bevel, Kramer 1022300108

2шт.

22

K951885

PIN

DOWEL differential cage, Kramer 7512034193

2шт.

23

K951886

SCREW

set, M14 x 40 mm, Kramer 7241678099

12шт.

K964108

WASHER

14 mm (Replaces washer K951887)

12шт.

24

K951772

BEARING

tapered roller, Kramer 7618320112, no longer available

2шт.

25

K951888

NUT

ADJUSTER bearing, Kramer 1022320089, no longer available

2шт.

26

K951889

WASHER

PLATE locking, bearing adjuster, Kramer 1009924930

2шт.

27

K951757

SCREW

set, M8 x 15 mm, Kramer 7236667129

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

28

K951890

PIN

DOWEL carrier to front axle, Kramer 7512034195, no longer available

2шт.

29

K951891

SCREW

set, M14 x 40 mm, carrier to front axle, Kramer 7236677219

20шт.

K964108

WASHER

14 mm, carrier to front axle (Replaces washer K951892)

20шт.

30

K951893

SCREW

locating, M10, Kramer 7330670001

2шт.

31

K963983

SHAFT ASSEMBLY -riving (Replaces shaft assembly K944165), Includes: Ref. 32 and Fitting's

1шт.

32

K954334

JOINT

KIT universal joint, Kramer 0002290330, no longer available

2шт.

K954061

FITTING

grease, M8, angled, Kramer 7761675203

2шт.

K950342

FITTING

grease, M10, straight, Kramer 7761675005

1шт.

33

K951712

GUARD

driveshaft, Kramer 0022670251

2шт.

34

626-11020

BOLT hex, full threads, 10 - 1.5 x 20 mm, class 10.9 (Replaces bolt K951710)

16шт.

K964106

WASHER, LOCK

10 mm (Replaces washer K951711)

16шт.
