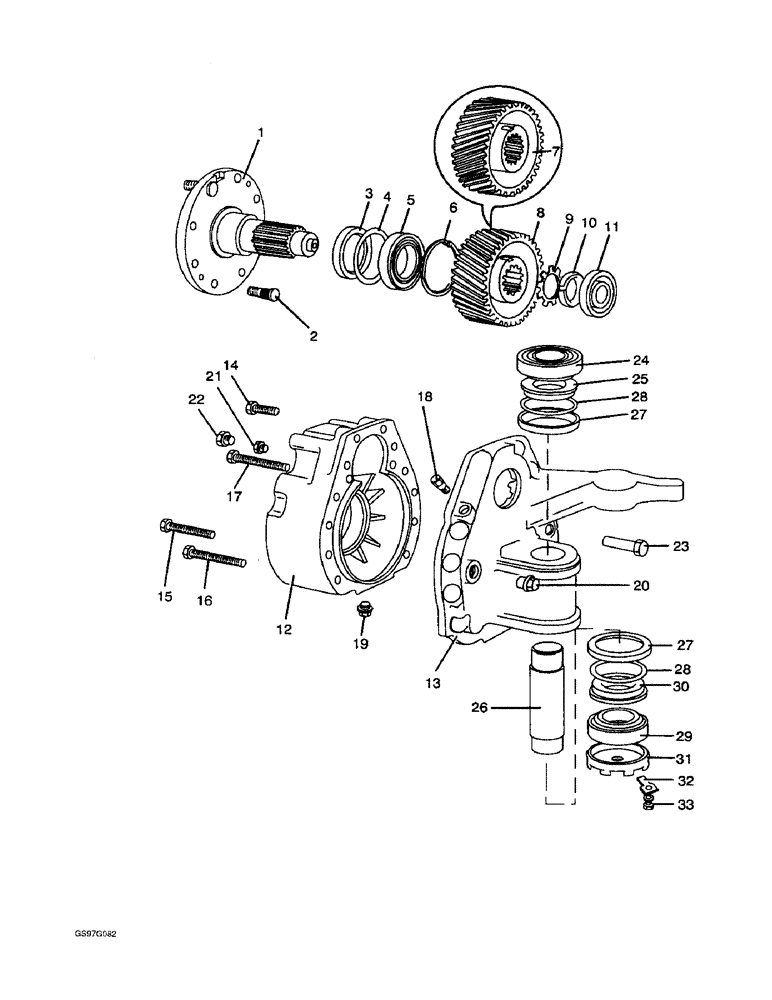

Запчасти Case IH 1210 (5-36) - FINAL DRIVESHAFT AND REDUCTION HOUSING, 1210, 1210Q AND 1210G FOUR-WHEEL DRIVE TRACTORS (05) - STEERING

1

K951799

DRIVE

SHAFT ASSEMBLY final, Kramer 1022300819, no longer available, Includes: Ref. 2, Nut, and Washer

2шт.

2

K951801

BOLT

STUD wheel, Kramer 0009900908

8шт.

K964139

NUT

wheel (Replaces nut K951824)

8шт.

K964140

WASHER

lock (Replaces lock K951825)

8шт.

3

K951802

OIL SEAL

oil, Kramer 0009969621, no longer available

2шт.

4

K951803

SHIM

0.2 mm, Kramer 0009931838

1шт.

4

K951804

SHIM

0.3 mm, Kramer 0009931938

1шт.

4

K951805

SHIM

0.5 mm, Kramer 0009932038, no longer available

1шт.

5

K954351

BEARING

roller, no longer available

2шт.

6

K951807

RING, SNAP

CLIP circular, Kramer 7491682125

2шт.

7

K951808

GEAR

left-hand, Kramer 1022361014

1шт.

8

K951809

GEAR

right-hand, Kramer 1022361114

1шт.

9

K951811

WASHER

tab, Kramer 0009925030, no longer available

2шт.

10

K951812

NUT

ring, M62, Kramer 1009901920

2шт.

11

K951810

BEARING

roller, Kramer 7622000089, no longer available

2шт.

12

K951769

DRIVE

HOUSING reduction units, Kramer 1022362005

2шт.

K951767

DRIVE

CARRIER left-hand, Kramer 1022663003

1шт.

13

K951768

DRIVE

CARRIER right-hand, Kramer 1022663103

1шт.

14

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

hex, 10 - 1.5 x 45 mm (Replaces screw K951813)

4шт.

15

K951814

BOLT

set, M10 x 125 mm, Kramer 7234677517

16шт.

16

K951815

SCREW

set, M10 x 105 mm, Kramer 7234677531

4шт.

17

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

Hex, 10 - 1.5 x 70 mm (Replaces screw K951816)

4шт.

K964104

10 mm (Replaces washer K950777)

28шт.

18

K963956

BREATHER

PLUG, M22 (Replaces plug K951817)

2шт.

19

K963955

PLUG

magnetic, M22 (Replaces plug K950778)

2шт.

K950779

SEAL

WASHER sealing, 22 mm, Kramer 7593641035

2шт.

20

K951818

PLUG

level, M16, Kramer 7336673005

2шт.

K951819

WASHER

sealing, 16 mm, Kramer 7593641024

2шт.

21

K951820

PLUG

M12, Kramer 7332637002, no longer available

2шт.

K951821

WASHER

sealing, 12 mm, Kramer 7593641020

2шт.

22

K954352

PLUG

M22, Kramer 7336673007

2шт.

K950779

SEAL

WASHER sealing, 22 mm, Kramer 7593641035

2шт.

23

K951822

SCREW

adjusting, M16, steering stop, Kramer 0009959470, no longer available

2шт.

K951823

NUT

lock, M16, Kramer 7403677014

2шт.

24

K951763

BEARING

tapered roller, upper, Kramer 0009940185 and 0009940284, no longer available, order bearings K964236 and K964237 below

2шт.

K964236

DIFFERENTIAL

BEARING outer, Kramer 0009940185

2шт.

K964237

BEARING

inner, Kramer 0009940284

2шт.

25

K951736

WASHER

distance, 8.0 mm, Kramer 0009935048

1шт.

25

K951737

WASHER

distance, 8.2 mm, Kramer 0009935148, no longer available

1шт.

25

K951738

WASHER

distance, 8.4 mm, Kramer 0009935248, no longer available

1шт.

25

K951739

WASHER

distance, 8.6 mm, Kramer 0009935348, no longer available

1шт.

25

K951740

WASHER

distance, 8.8 mm, Kramer 0009935448, no longer available

1шт.

25

K951741

WASHER

distance, 9.0 mm, Kramer 0009935548, no longer available

1шт.

25

K951742

WASHER

distance, 9.2 mm, Kramer 0009935648, no longer available

1шт.

25

K951743

WASHER

distance, 9.4 mm, Kramer 0009935748

1шт.

25

K951744

WASHER

distance, 9.6 mm, Kramer 0009935848

1шт.

25

K951745

WASHER

distance, 9.8 mm, Kramer 0009935948

1шт.

25

K951746

WASHER

distance, 10.0 mm, Kramer 0009936048, no longer available

1шт.

25

K951747

WASHER

distance, 10.2 mm, Kramer 0009936148

1шт.

25

K951748

WASHER

distance, 10.4 mm, Kramer 0009936248

1шт.

26

K951754

LARGE PIN

swivel, Kramer 1022610893, no longer available

2шт.

27

K951752

RING

SEAL, Kramer 0022610552

4шт.

28

K951753

O-RING

Kramer 0009968806

4шт.

29

K951764

BEARING

tapered roller, lower, Kramer 0009940285 and 0009940284, no longer available, order bearings K964237 and K964238 below

2шт.

K964237

BEARING

inner, Kramer 0009940284

2шт.

K964238

BEARING

outer, Kramer 0009940285

1шт.

30

K951749

WASHER

lower, Kramer 1009936767

2шт.

31

K951755

NUT

adjusting, Kramer 1022610491, no longer available

2шт.

32

K951756

WASHER

PLATE lock, Kramer 1009925630

2шт.

33

K951757

SCREW

set, Kramer 7236677129

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

K954355

FITTING

grease, angled, no longer available

2шт.
