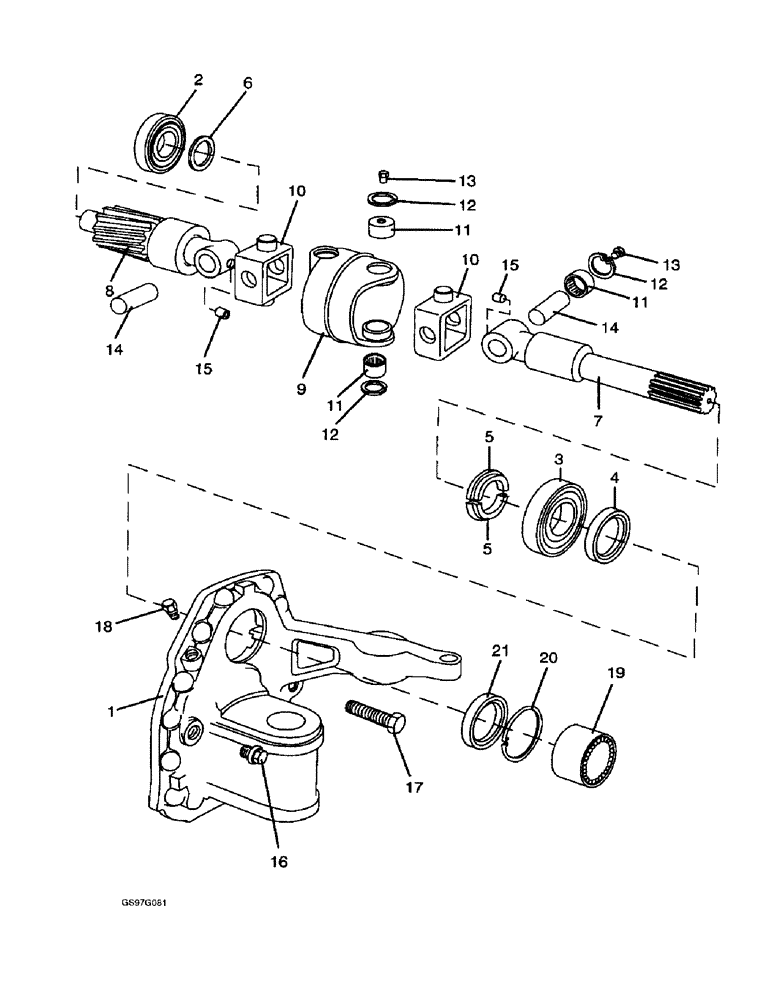

Запчасти Case IH 1210 (5-34) - FRONT AXLE DRIVESHAFT AND HOUSING, 1210, 1210Q AND 1210G FOUR-WHEEL DRIVE TRACTORS (05) - STEERING

K951765

DRIVE

ASSEMBLY final, left-hand, Kramer 1022604316, no longer available, Includes: Ref. 1 - 21

1шт.

K951766

DRIVE

ASSEMBLY final, right-hand, Kramer 1022604416, no longer available, Includes: Ref. 1 - 21

1шт.

1

K951767

DRIVE

CARRIER left-hand, Kramer 1022663003

1шт.

1

K951768

DRIVE

CARRIER right-hand, Kramer 1022663103

1шт.

K951769

DRIVE

HOUSING final, Kramer 1022362005

2шт.

2

K964134

BEARING

tapered roller (Replaces bearing K951773)

2шт.

3

K951772

BEARING

tapered roller, Kramer 7618320112, no longer available

2шт.

4

K951774

OIL SEAL

oil, pinion shaft, Kramer 0009969821, no longer available

2шт.

5

K951775

BUSHING

split, halves, Kramer 1022610250

4шт.

6

K951776

WASHER

distance, 1.60 mm, Kramer 0009936748, no longer available

1шт.

6

K951777

WASHER

distance, 1.65 mm, Kramer 0009936848

1шт.

6

K951778

WASHER

distance, 1.70 mm, Kramer 0009936948

1шт.

6

K951779

WASHER

distance, 1.75 mm, Kramer 0009937048

1шт.

6

K951780

WASHER

distance, 1.80 mm, Kramer 0009937148

1шт.

6

K951781

WASHER

distance, 1.85 mm, Kramer 0009937248

1шт.

6

K951782

WASHER

distance, 1.90 mm, Kramer 0009937348

1шт.

6

K951783

WASHER

distance, 1.95 mm, Kramer 0009937448

1шт.

6

K951784

WASHER

distance, 2.00 mm, Kramer 0009937548

1шт.

6

K951785

WASHER

distance, 2.05 mm, Kramer 0009937648

1шт.

6

K951786

WASHER

distance, 2.10 mm, Kramer 0009937748

1шт.

6

K951787

WASHER

distance, 2.15 mm, Kramer 0009937848

1шт.

6

K951788

WASHER

distance, 2.20 mm, Kramer 0009937948

1шт.

6

K951789

WASHER

distance, 2.25 mm, Kramer 0009938048

1шт.

6

K951790

WASHER

distance, 2.30 mm, Kramer 0009938148

1шт.

6

K951791

WASHER

distance, 2.35 mm, Kramer 0009938248, no longer available

1шт.

6

K951792

WASHER

distance, 2.40 mm, Kramer 0009938348

1шт.

6

K951793

WASHER

distance, 2.45 mm, Kramer 0009938448, no longer available

1шт.

6

K951794

WASHER

distance, 2.50 mm, Kramer 0009938548

1шт.

6

K951795

WASHER

distance, 2.55 mm, Kramer 0009938648

1шт.

6

K951796

WASHER

distance, 2.60 mm, Kramer 0009938748, no longer available

1шт.

6

K951797

WASHER

distance, 2.65 mm, Kramer 0009938848

1шт.

6

K951798

WASHER

distance, 2.70 mm, Kramer 0009938948

1шт.

K951770

SHAFT

ASSEMBLY drive, left-hand, long, Kramer 1022601821, Includes: Ref. 7 - 12 and Shaft

1шт.

K951771

SHAFT

ASSEMBLY drive, right-hand, short, Kramer 1022601921, Includes: Ref. 7 - 12 and Shaft

1шт.

K954360

JOINT

SHAFT left-hand, long, includes joint, Kramer 0022615220, no longer available

1шт.

7

K954362

JOINT

SHAFT right-hand, short, includes joint

1шт.

K954361

DRIVE

SHAFT left-hand, includes gear

1шт.

8

K954363

DRIVE SHAFT

right-hand, includes gear, no longer available

1шт.

9

K954364

CASE

YOKE center, no longer available

1шт.

10

K954366

YOKE

PIECE cross, Kramer 0022610469

2шт.

11

K954368

BEARING

needle roller, Kramer 0009942313

8шт.

12

K954369

RING, SNAP

CLIP circular, Kramer 0009925327

8шт.

13

K954370

PLUG

M10, Kramer 0009906410

8шт.

14

K954367

PIN

Kramer 0022611293

2шт.

15

K954371

SCREW

set, M10, Kramer 0009950885, no longer available

2шт.

K964142

FITTING

grease, M8 (Replaces fitting K951759)

2шт.

16

K951818

PLUG

level, M16, Kramer 7336673005

2шт.

K951819

WASHER

sealing, 16 mm, Kramer 7593641024

2шт.

17

K951822

SCREW

adjusting, M16, steering stop, Kramer 0009959470, no longer available

2шт.

K951823

NUT

lock, M16, Kramer 7403677014

2шт.

18

K963956

BREATHER

PLUG, M22 (Replaces plug K951817)

2шт.

19

K951731

BEARING

needle roller, axle housing, Kramer 0009949412

2шт.

20

K954354

RING, SNAP

CLIP circular, 52 mm, internal, axle housing, Kramer 0009925427

2шт.

21

K951732

OIL SEAL

oil, 42 x 52 x 7 mm, axle housing, Kramer 0009952121

2шт.
