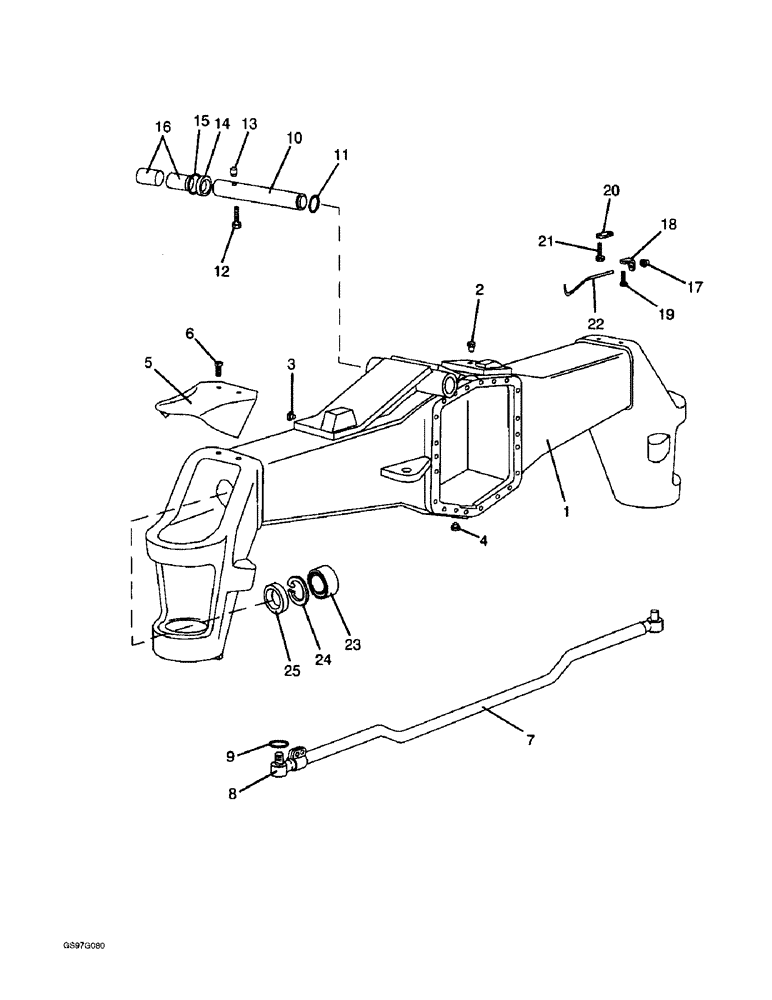

Запчасти Case IH 1210 (5-32) - FRONT AXLE, 1210, 1210G, 1210Q AND 1210SK FOUR-WHEEL DRIVE TRACTORS (05) - STEERING

K953866

AXLE ASSEMBLY front, complete, no longer available, Includes: Ref. 1 - 9, Drive Assembly's, Differential Assembly, Cylinder Assembly, Nut, Pin, and Fitting

1шт.

K951765

DRIVE

ASSEMBLY final, left-hand, parts list Figure 5-34

1шт.

K951766

DRIVE

ASSEMBLY final, right-hand, parts list Figure 5-34

1шт.

K951829

DIFFERENTIAL

ASSEMBLY - parts list Figure 5-40

1шт.

K950325

CYLINDER

ASSEMBLY steering, parts list Figure 5-24

1шт.

1

K954336

SHAFT

HOUSING axle, with hole for breather, no longer available

1шт.

1

K951828

SHAFT

HOUSING axle, without hole for breather, no longer available

1шт.

2

K951817

BREATHER

M10

1шт.

3

K963952

BOLT

PLUG filler, M22 (Replaces plug K951894)

1шт.

4

K950778

PLUG

magnetic, M22

1шт.

K950779

SEAL

WASHER sealing, 22 mm

1шт.

5

K954356

COVER

PLATE, no longer available

2шт.

6

K954357

SCREW

set

4шт.

K951762

WASHER

lock, no longer available

4шт.

K964142

FITTING

grease, straight (Replaces fitting K951759)

2шт.

7

K951895

ROD

track

1шт.

8

K953532

BALL

JOINT

1шт.

9

K954350

COVER

EXCLUDER dirt

2шт.

K951714

NUT

M20

2шт.

K954348

SPLIT PIN/SAFETY PIN

2шт.

K951759

FITTING

grease, ball joint

2шт.

10

K200986

TRUNNION

(Replaces pin K952586)

1шт.

11

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING, 1-1/4 inch ID

1шт.

12

K600505

BOLT

hex, 3/8 NC x 2-3/4 inch

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

13

K913092

NUT

BUSHING threaded, 3/8 inch NC

1шт.

14

K915421

WASHER

thrust

2шт.

15

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

(Replaces O-ring K623524) -227, 70 Duro, 2.109" ID x .139" Thk

2шт.

16

K15597

BUSHING

main frame

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

17

K622255

FITTING

grease, special, 1/8 BSP

1шт.

18

K948809

BRACKET

support, grease fitting

1шт.

19

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

(Replaces screw K602802) Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

20

K952592

PLATE

axle housing, used with 1210Q and 1210Sk four-wheel drive tractors

1шт.

21

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Hex, 5/16"-18 x 7/8", G5, Used with 1210Q and 1210Sk four-wheel drive tractors (Replaces screw K602804)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with 1210Q and 1210Sk four-wheel drive tractors (Replaces washer K19481) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, used with 1210Q and 1210Sk four-wheel drive tractors (Replaces nut K607001)

1шт.

22

K948808

TUBE

grease fitting

1шт.

23

K951731

BEARING

needle roller

2шт.

24

K954354

RING, SNAP

CLIP circular, internal, 52 mm

2шт.

25

K951732

OIL SEAL

oil, 42 x 52 x 7 mm

2шт.
