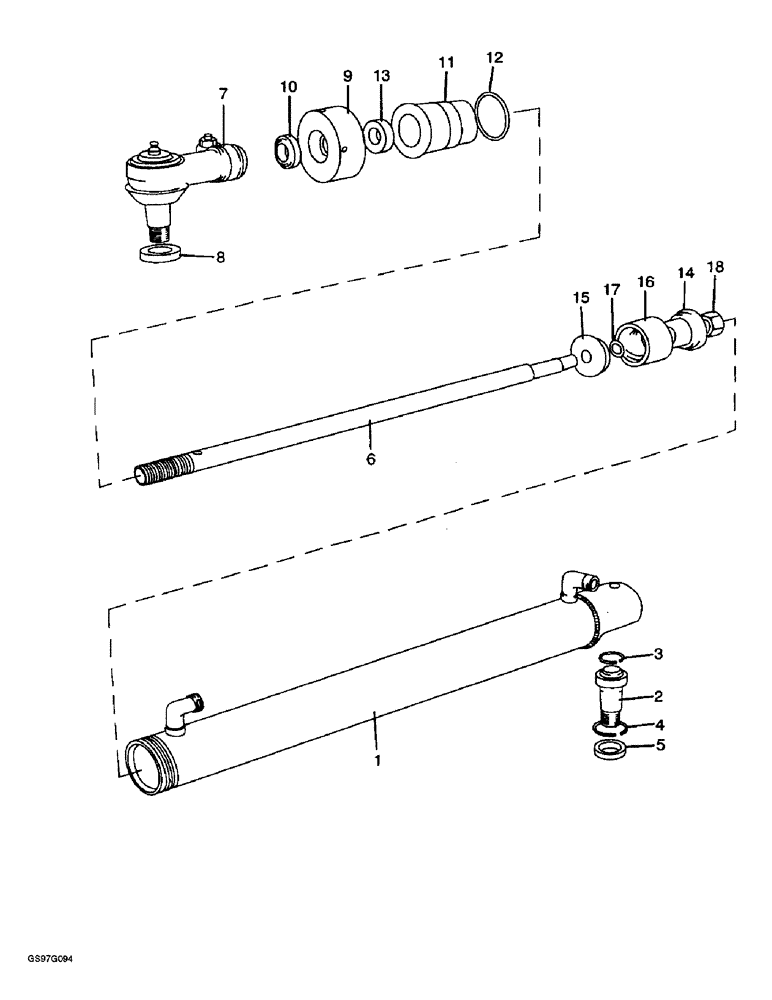

Запчасти Case IH 1210 (5-24) - STEERING CYLINDER, 1210, 1210Q, 1210G AND 1210SK 4WD TRACTORS, INSTALLED BEHIND THE AXLE (05) - STEERING

K950325

CYLINDER

ASSEMBLY steering, Includes: Ref. 1- 18

1шт.

1

K950326

CYLINDER

HOUSING steering

1шт.

2

K951705

PIN

pivot, includes bushing, no longer available, order pin K964239 and bearing K950339

1шт.

K964239

SOCKET

PIN pivot, Kramer 1023610257

1шт.

K950339

BEARING

ball, used with pin K964239

1шт.

3

K954359

RING, SNAP

CLIP circular, 20 mm external

1шт.

4

K950341

CIRCLIP

CLIP circular

1шт.

5

K951708

SEAL

EXCLUDER dirt

1шт.

K951714

NUT

castle, M20

1шт.

K954348

SPLIT PIN/SAFETY PIN

4 x 36 mm

1шт.

K950342

FITTING

grease, M10

1шт.

6

K950338

PISTON

ROD

1шт.

7

K950327

BALL

JOINT ASSEMBLY, no longer available, Includes: Ref. 8 and Fitting

1шт.

8

K954350

COVER

EXCLUDER dirt

1шт.

K964142

FITTING

grease, M8 (Replaces fitting K954349)

1шт.

K951714

NUT

castle, M20

1шт.

K954348

SPLIT PIN/SAFETY PIN

4 x 36 mm

1шт.

9

K950330

COVER

end, no longer available

1шт.

10

K950328

SEAL

wiper

1шт.

11

K950331

SLEEVE

cylinder

1шт.

12

K950332

O-RING

44 mm ID

1шт.

13

K950329

SEALING RING

piston rod

1шт.

14

K950336

PISTON

inner half, no longer available

1шт.

15

K950333

PISTON

outer half

1шт.

16

K950335

PISTON

SEAL

1шт.

17

K950334

O-RING

16 mm ID

1шт.

18

K950337

LOCK

NUT M16, no longer available

1шт.

K964824

SEAL

KIT, steering cylinder

1шт.
