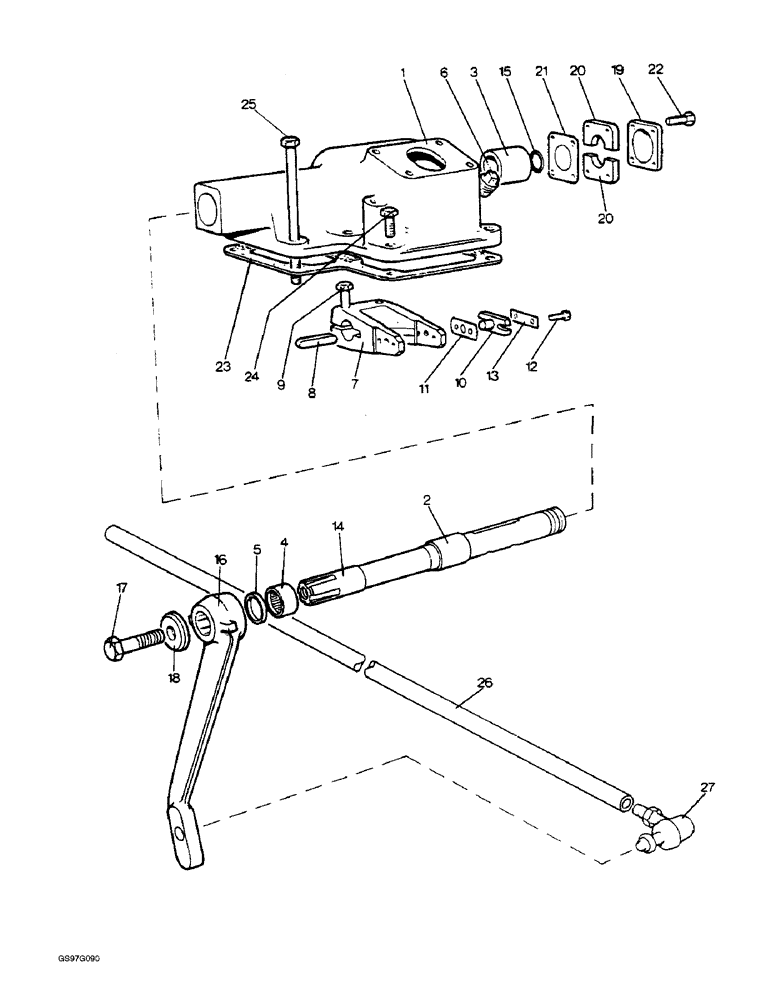

Запчасти Case IH 1210 (5-16) - STEERING BOX AND DRAG LINK, 1210 AND 1210G TRACTORS WITHOUT HYDROSTATIC STEERING (05) - STEERING

1

K963553

BOX

ASSEMBLY steering, no longer available, Includes: Ref. 2 - 5

1шт.

2

K621365

BUSHING

inner

1шт.

3

K917090

BUSHING

outer

1шт.

4

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

needle roller (Replaces bearing K690321)

1шт.

5

K623418

OIL SEAL

oil, 1-1/2 x 1-7/8 x 3/16 inch

1шт.

6

K14659

PLUG

taper, 1/2 BSP, no longer available

1шт.

7

K915950

ROCKER LEVER

ARM, no longer available

1шт.

8

K622323

KEY

3/8 x 3/8 x 3-3/8 inch

1шт.

9

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

(Replaces K600610) Hex, 7/16"-14 x 2 1/2", G5

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

2шт.

10

K912108

BALL

PEG

2шт.

11

K900945

GASKET

SHIM, 0.003 inch

1шт.

11

K900946

SHIM,.005" Thk

1шт.

11

K900947

GASKET

SHIM, 0.007 inch

1шт.

11

K900948

SHIM,.010" Thk

1шт.

12

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

4шт.

13

K912109

WASHER

tab

2шт.

14

K915953

SHAFT

drop arm

1шт.

15

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING, 1-1/4 inch ID

1шт.

16

K923468

ARM

drop

1шт.

17

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

Used with 1210 tractors (Replaces bolt K601240) Hex, 5/8"-11 x 3 1/4", G8

1шт.

17

K601327

BOLT

hex, 5/8 NC x 3-1/4 inch, special, used with 1210G tractors, no longer available

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

1шт.

18

K15595

WASHER

special, 5/8 inch

1шт.

19

K915960

COVER

end, no longer available

1шт.

20

K915959

PLATE

thrust, no longer available

2шт.

21

K915955

SHIM

0.003 inch, no longer available

1шт.

21

K915956

SHIM

0.005 inch, no longer available

1шт.

21

K915957

SHIM

0.010 inch

1шт.

21

K915958

SHIM

0.030 inch, no longer available

1шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch (Replaces setscrew K602805)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

23

K915949

GASKET

stering box to gearbox cover

1шт.

24

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Steering box to gearbox cover (Replaces bolt K600806) Hex, 1/2"-13 x 2", G5

8шт.

25

K600835

BOLT

hex, steering box to gearbox cover, 1/2 NC x 9 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

10шт.

K923470

LINK ASSY.

drag, no longer available, order socket K207722 and tube K923469, Includes: Ref. 26 - 27, Excluder, and Nut's

1шт.

26

K923469

LINK

TUBE drag, no longer available

1шт.

27

K207722

BALL JOINT

SOCKET ASSEMBLY includes ball (Replaces socket assembly K915962), Includes: Excluder and Nut's

2шт.

K962155

CAP

EXCLUDER dirt

1шт.

K622500

LOCK NUT

lock, 3/4 inch

1шт.

131-377

LOCK NUT,5/8"-11, GC

Nyloc, 5/8 inch NF (Replaces nut K617306)

1шт.
