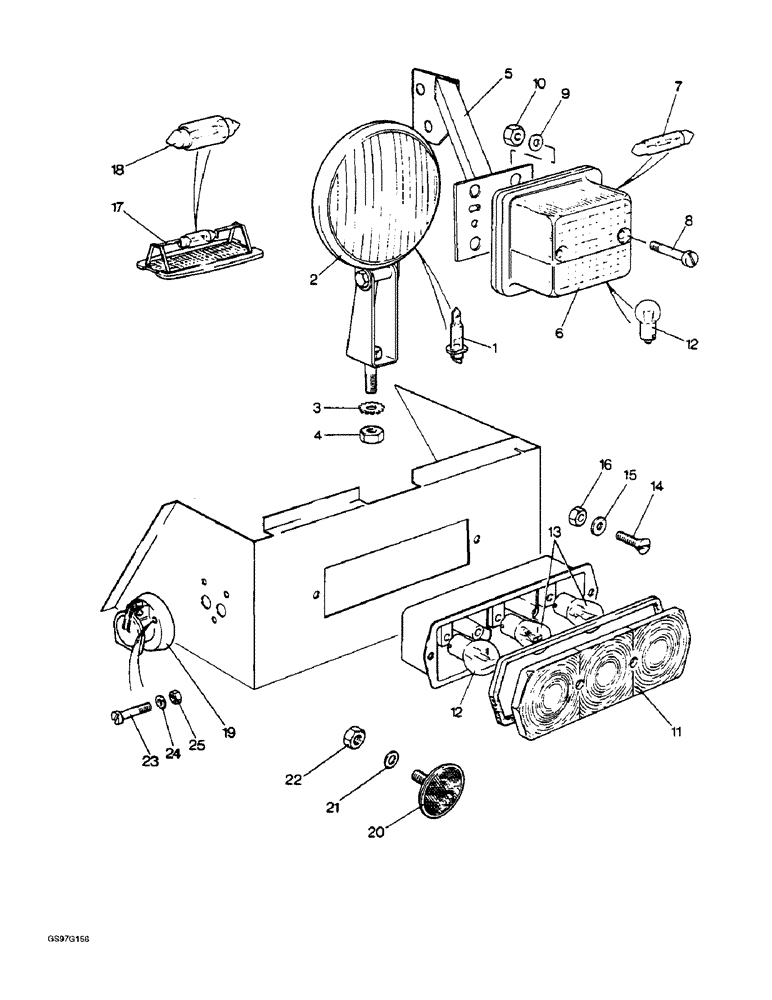

Запчасти Case IH 1210 (4-26) - LAMP ASSEMBLIES, SEKURA CAB (04) - ELECTRICAL SYSTEMS

K965661

LAMP

FLOODLAMP ASSEMBLY rear, Sekura 941.055, no longer available, Includes: Ref. 1 - 5 and Bracket

1шт.

1

K965610

BULB

iodine, 12 volt, 55 watt, Sekura 942.020

1шт.

2

K965606

LENS

Sekura 941.054, no longer available

1шт.

3

K965558

WASHER

lock, 1/2 inch, Sekura 913.112, no longer available

1шт.

4

K965445

ARMREST

NUT, M10, Sekura 910.100, no longer available

1шт.

5

K965519

BRACKET

left-hand, side/flasher lamp, Sekura 41.128, no longer available

1шт.

K965520

BRACKET

right-hand, side/flasher lamp, Sekura 41.934, no longer available

1шт.

K965602

LAMP ASSEMBLY side/flasher, no longer available, order lamp 3121089R91 below

1шт.

3121089R91

LIGHT

LAMP side/flasher, component parts shown below do not apply, Includes: Ref. 6 - 10

1шт.

6

3148501R1

LENS

side/flasher (Replaces lens K965691)

1шт.

7

K965609

BULB

12 volt, 55 watt, Sekura 942.010, no longer available

2шт.

8

K965527

SCREW

M4 x 20 mm, Sekura 900.044, no longer available

4шт.

9

K965555

WASHER

lock, 3/16 inch, Sekura 913.105, no longer available

4шт.

10

K965542

NUT

M4, Sekura 910.040, no longer available

4шт.

K965604

INTERIOR LIGHT

LAMP ASSEMBLY stop/tail/flasher, Sekura 941.046, no longer available, Includes: Ref. 11 - 16

2шт.

11

K965605

LENS

Sekura 941.048, no longer available

2шт.

12

K965607

BULB

12 volt, 55 watt, Sekura 942.004, no longer available

2шт.

13

K965608

BULB

stop/indicator, 12 volt, 18 watt, Sekura 942.008, no longer available

4шт.

14

K965529

SCREW

M5 x 25 mm, Sekura 900.055

4шт.

15

K965549

WASHER

flat, 3/16 inch, Sekura 912.051, no longer available

4шт.

16

K965543

NUT

M5, Sekura 910.050, no longer available

4шт.

17

K965603

INTERIOR LIGHT

LAMP ASSEMBLY, Sekura 941.031, no longer available, Includes: Ref. 18

1шт.

18

K965609

BULB

12 volt, 5 watt, Sekura 942.010, no longer available

1шт.

19

K965613

SOCKET/RECEPTACLE

PLUG trailer, Sekura 945.018, no longer available

1шт.

20

K954774

REFLECTOR

Sekura 945.021, no longer available

2шт.

21

K965549

WASHER

flat, 3/16 inch, Sekura 912.051

4шт.

22

K965543

NUT

M5, Sekura 910.050

4шт.

23

K965535

SCREW

set, M6 x 12 mm, trailer socket to housing, Sekura 905.062, no longer available

3шт.

24

K965550

WASHER

flat, 1/4 inch, trailer socket to housing, Sekura 912.071, no longer available

3шт.

25

K965544

NUT

M6, trailer socket to housing, Sekura 910.060, no longer available

3шт.
