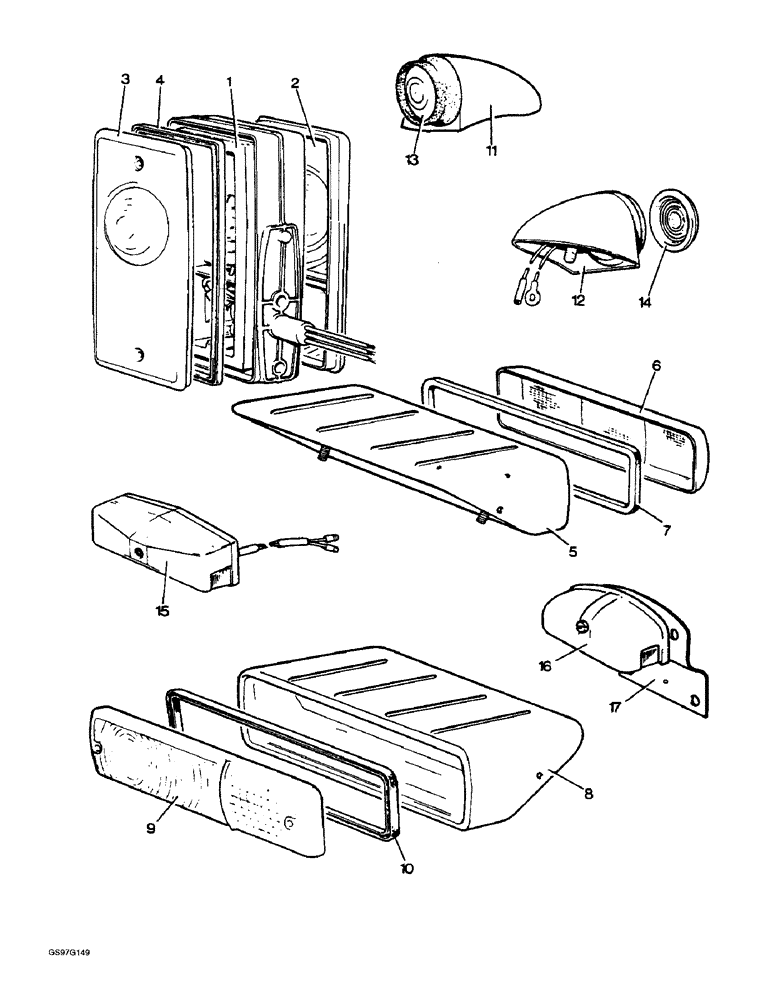

Запчасти Case IH 1210 (4-24) - LAMP ASSEMBLIES, SIDE AND REAR (04) - ELECTRICAL SYSTEMS

1

K950658

LIGHT ASSY.

side/flasher, right-hand, no longer available, Includes: Ref. 1 - 4, Screw's, Washer, and Grommet

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

1

K950659

LIGHT ASSY.

side/flasher, left-hand, no longer available, Includes: Ref. 1 - 4, Screw's, Washer, and Grommet

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

2

K964704

LENS

right-hand rear, amber/black, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

2

K964705

LENS

left-hand rear, amber/black, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

3

K964706

LENS

right-hand front, amber/clear, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

3

K964707

LENS

left-hand front, amber/clear, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

4

K964710

GASKET

lens to body, no longer available

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

K964712

SCREW

hex, 1/8 NC x 1/2 inch, lens to body, no longer available

4шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

K963504

WASHER

flat, 1/8 inch, Serial Range: lens-body

4шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

K964711

GROMMET

includes sleeve, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

K651001

SCREW

M5 x 3-5/8 inch, lamps to cab, no longer available

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

5

K954473

LIGHT ASSY.

stop/rear/flasher, right-hand, no longer available, order lamp 3123164R91, Includes: Ref. 6 - 7 and Adapter

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

5

K954474

LIGHT ASSY.

stop/rear/flasher, left-hand, no longer available, order lamp 3123163R91, Includes: Ref. 6 - 7 and Adapter

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

6

K963516

LENS

right-hand, includes screws, no longer available, order lens K963510, washer K963504 and screw K963505

1шт.

6

K963517

LENS

left-hand, includes screws, no longer available, order lens K963511, washer K963504 and screw K963505

1шт.

K963510

LENS

right-hand rear

1шт.

K963511

LENS

left-hand rear

1шт.

K963504

WASHER

fibre

1шт.

K963505

SCREW

self-tapping, No. 8 x 3/4 inch

1шт.

7

K963507

GASKET

lens

1шт.

K964768

HOLDER

ADAPTER bulb holder, no longer available

3шт.

K626310

WASHER

flat, 3/16 inch, lamps to fenders, no longer available

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Lamps to fenders (Replaces washer K626340) #10

4шт.

225-14210

NUT,#10-32

Lamps to fenders (Replaces nut K617080) #10-32

4шт.

K624522

SCREW

self-tapping, earth leads, 1/2 inch

2шт.

493-21026

LOCK WASHER,Int Tooth, 1/4"

internal tooth lock, earth leads, 1/4 inch, (Replaces washer K11524)

2шт.

8

K954472

INDICATOR LIGHT

LAMP ASSEMBLY side/flasher, left-hand, no longer available, Includes: Ref. 9 - 10 and Adapter

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

8

K954471

INDICATOR LIGHT

LAMP ASSEMBLY side/flasher, right-hand, no longer available, Includes: Ref. 9 - 10 and Adapter

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

9

K963513

LENS

left-hand, includes screws (Replaces lens K963519)

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

9

K963512

LENS

right-hand, includes screws (Replaces lens K963518)

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

10

K963507

GASKET

lens

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

K964768

HOLDER

ADAPTER bulb

2шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

K626310

WASHER

flat, 3/16 inch, lamps to fenders, no longer available

4шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Lamps to fenders #10

4шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

225-14210

NUT,#10-32

Lamps to fenders (Replaces nut K617080) #10-32

4шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

11

K921234

INDICATOR LIGHT

LAMP ASSEMBLY side, right-hand, used with 1210 and 1212 tractors, no longer available, Includes: Ref. 13 - 14 and Mounting

1шт.

11

K921236

INDICATOR LIGHT

LAMP ASSEMBLY side, left-hand, used with 1210 and 1212 tractors, Includes: Ref. 13 - 14 and Mounting

1шт.

12

K921235

LAMP

ASSEMBLY rear, left-hand, used with 1210 and 1212 tractors, Includes: Ref. 13 - 14 and Mounting

1шт.

12

K921233

LAMP

ASSEMBLY rear, right-hand, used with 1210 and 1212 tractors, Includes: Ref. 13 - 14 and Mounting

1шт.

13

K960887

LENS

clear, used with side lamp assemblies, no longer available, order lamp assembly K921234 or K921236

1шт.

14

K960888

LENS

red, used with rear lamp assemblies, no longer available, order lamp assembly K921235 or K921233

1шт.

K962195

SPARE PART SET

MOUNTING rubber, order lamp assembly

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 1210 and 1212 tractors (Replaces washer K626341) 1/4"

8шт.

425-114

NUT,1/4"-28, G5

Used with 1210 and 1212 tractors (Replaces nut K616980) 1/4"-28, G5

8шт.

K692044

COVER

lamp, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

K692045

BASE

HOLDER bulb, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

K692046

BASE

rubber, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

K19391

SCREW

lamp, no longer available (Replaces screw K692047)

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

K692034

STRAP

lamp assembly

3шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

K692035

LINK

lamp assembly, no longer available

3шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

15

K956040

PLATE

LAMP rear number, festoon bulbs, no longer available, order lamp K311863, Ref. 16

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

15

K773358

PLATE

LAMP rear number, MCC bulbs, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

16

K311863

INTERIOR LIGHT

LAMP rear number plate

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

K12355

NUT

domed, 2 BA, no longer available

2шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

17

K920460

BRACKET support, no longer available

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

K603924

SCREW

hex, 1/4 NC x 1/2 inch

3шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

3шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

3шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

Drill three new mounting holes in support and modify the lead connectors.

1шт.
