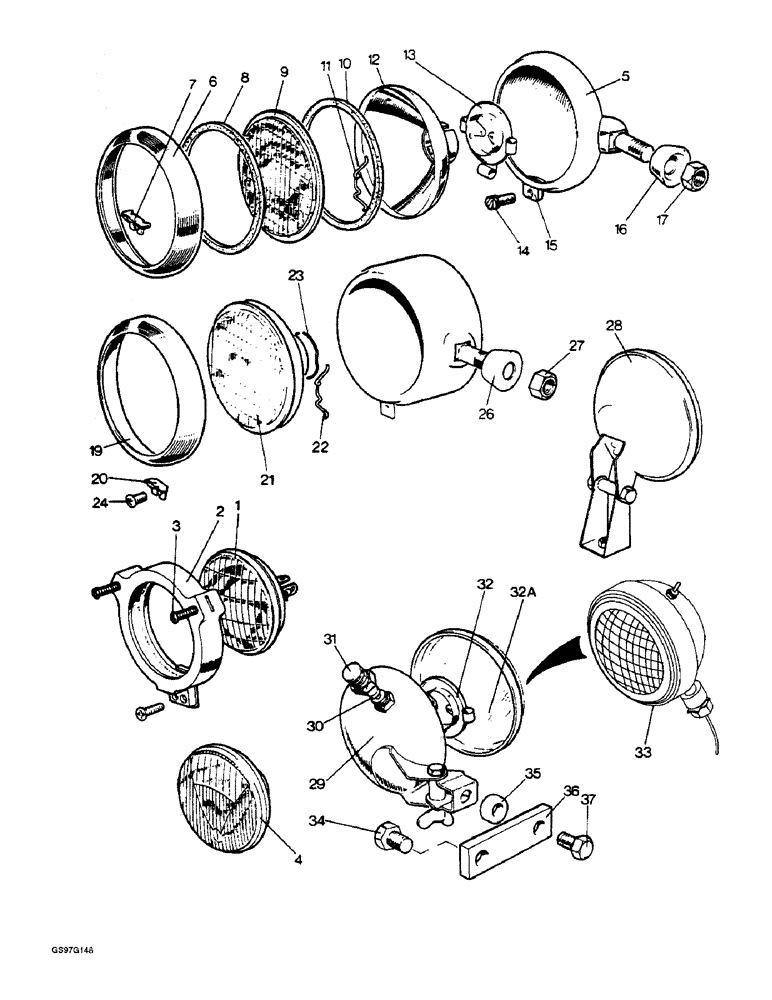

Запчасти Case IH 1210 (4-20) - HEADLAMPS AND REAR FLOODLAMPS (04) - ELECTRICAL SYSTEMS

K915874

HEADLAMP

ASSEMBLY double filament, used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 and 1212 tractors, no longer available, order beam 3072947R91, mounting K961759 and items 38 - 41 on page 4-23, Includes: Ref. 1 - 3

2шт.

1

3072947R91

HEADLIGHT

BEAM sealed, 12 volt, 40/40 watt (Replaces beam K962146)

1шт.

2

K961759

MOUNTING PARTS

rubber

1шт.

3

K962345

KIT

mounting, includes spire nuts and screws

1шт.

4

K917233

LAMP

HEADLAMP double filament, used with 1210G and 1212G tractors, order headlamp assembly K915874 and modify as needed, no longer available

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

2шт.

225-14108

NUT,#8-32

hex, No. 8 NC (Replaces nut K607040)

6шт.

5

K962770

LAMP

HEADLAMP ASSEMBLY right-hand, used with 1210 and 1212 tractors (Replaces headlamp K921083), Includes: Ref. 6 - 17

1шт.

5

K962769

LAMP

HEADLAMP ASSEMBLY left-hand, used with 1210 and 1212 tractors (Replaces headlamp K921082), Includes: Ref. 6 - 17

1шт.

6

K962349

BEZEL

RIM headlamp

1шт.

7

K963481

DOOR

CATCH headlamp rim (Replaces catch K960879)

1шт.

8

K960898

GASKET

lens to rim, no longer available

1шт.

9

K960892

LENS

headlamp

1шт.

10

K960874

GASKET

, Serial Range: lens-reflector

1шт.

11

K960876

SPRING

RETAINER

5шт.

12

K963546

REFLECTOR

headlamp

1шт.

13

K963843

CONTACT

PLATE center (Replaces plate K963547)

1шт.

14

K963480

SCREW

rim catch (Replaces screw K960880)

1шт.

15

K961612

HOUSING

CATCH rim retaining

1шт.

16

K961613

PEDESTAL

headlamp

1шт.

17

K961614

NUT

special, 9/16 inch

1шт.

18

K944730

LAMP

HEADLAMP ASSEMBLY right-hand, used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 and 1212 tractors, Includes: Ref. 19 - 27

1шт.

18

K944729

LAMP

HEADLAMP ASSEMBLY left-hand, used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 and 1212 tractors, Includes: Ref. 19 - 27

1шт.

19

K962349

BEZEL

RIM headlamp

1шт.

20

K963481

DOOR

CATCH rim

1шт.

21

K963482

LIGHT ASSY.

REFLECTOR includes lens, no longer available

1шт.

22

K960876

SPRING

RETAINER

5шт.

K944742

BULB

TUBE

1шт.

23

K962485

SPRING bulb retaining

1шт.

24

K963480

SCREW

rim catch

1шт.

25

K963855

CATCH

rim retaining (Replaces catch K961612)

1шт.

26

K961613

PEDESTAL

headlamp

1шт.

K963483

WASHER

shakeproof, no longer available

1шт.

27

K961614

NUT

special, 9/16 inch, no longer available

1шт.

28

K954753

GASKET

FLOODLAMP rear, Sekura 941.018, used with 1210Sk and 1212Sk tractors

1шт.

29

K943977

LAMP

FLOODLAMP ASSEMBLY rear, used with 1210Q, 1212Q, 1210 and 1212 tractors, no longer available, order floodlamp A151886, Ref. 33 on page 4-23, Includes: Ref. 31 - 32a

1шт.

30

K962620

LIGHT SWITCH

rear floodlamp

1шт.

K961082

NUT

switch retaining, no longer available

1шт.

31

K962621

COVER ASSY

rubber, switch

1шт.

32

K963547

PLATE

center

1шт.

32a

K962334

LENS

floodlamp

1шт.

33

A151886

LAMP

FLOODLAMP rear, with on/off switch (Replaces floodlamp assembly K943977)

1шт.

34

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Used with 1210Q, 1212Q, 1210 and 1212 tractors (Replaces setscrew K603141) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

35

K627067

BUSHING

SPACER distance, used with 1210Q, 1212Q, 1210 and 1212 tractors, no longer available

1шт.

493-21052

LOCK WASHER,Int Tooth, 1/2"

internal-tooth lock, 1/2 inch, used with 1210Q, 1212Q, 1210 and 1212 tractors (Replaces washer K626510)

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Used with 1210Q, 1212Q, 1210 and 1212 tractors (Replaces nut K607047) 1/2"-13, G5

1шт.

36

K955726

BRACKET

support, floodlamp, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

1шт.

36

K953060

BRACKET

support, floodlamp, used with 1210Q and 1212Q tractors with serial numbers prior to 11158600, no longer available

1шт.

37

K602846

SCREW,5/16" - 18 x 5/8", Gr S

set, 5/16 NC x 5/8 inch, bracket to cab, used with 1210Q and 1212Q tractors with serial number 11158600 and after

2шт.

37

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Bracket to fender, Used with 1210Q and 1212Q tractors with S/N prior to 11158600 (Replaces setscrew K603138) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to cab, used with 1210Q and 1212Q tractors with serial number 11158600 and after (Replaces washer K19481) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, bracket to cab, used with 1210Q and 1212Q tractors with S/N 11158600 and after (Replaces nut K607044)

2шт.

K955727

GROMMET

floodlamp cable, 11/32 inch, used with 1210Q and 1212Q tractors with serial number 11158600 and after, no longer available

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Bracket to fender, used with 1210Q and 1212Q tractors with S/N's prior to 11158600 (Replaces washer K626345) 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Bracket to fender, Used with 1210Q and 1212Q tractors with S/N's prior to 11158600 (Replaces nut K607047) 1/2"-13, G5

1шт.

K627705

GROMMET

1/2 inch, full fenders, used with 1210 and 1212 tractors with tractor serial numbers prior to 11158600, no longer available

1шт.

K24589

GROMMET

5/16 inch, shell fenders, used with 1210 and 1212 tractors with tractor serial numbers, Serial Range: prior-11158600

1шт.

38

K962600

SCREW

headlamp, not shown

1шт.

39

K962601

NUT

headlamp screw, not shown

1шт.

40

K962602

SPRING

headlamp, not shown

2шт.

41

K962603

SUPPORT

BRACKET headlamp, not shown

2шт.
