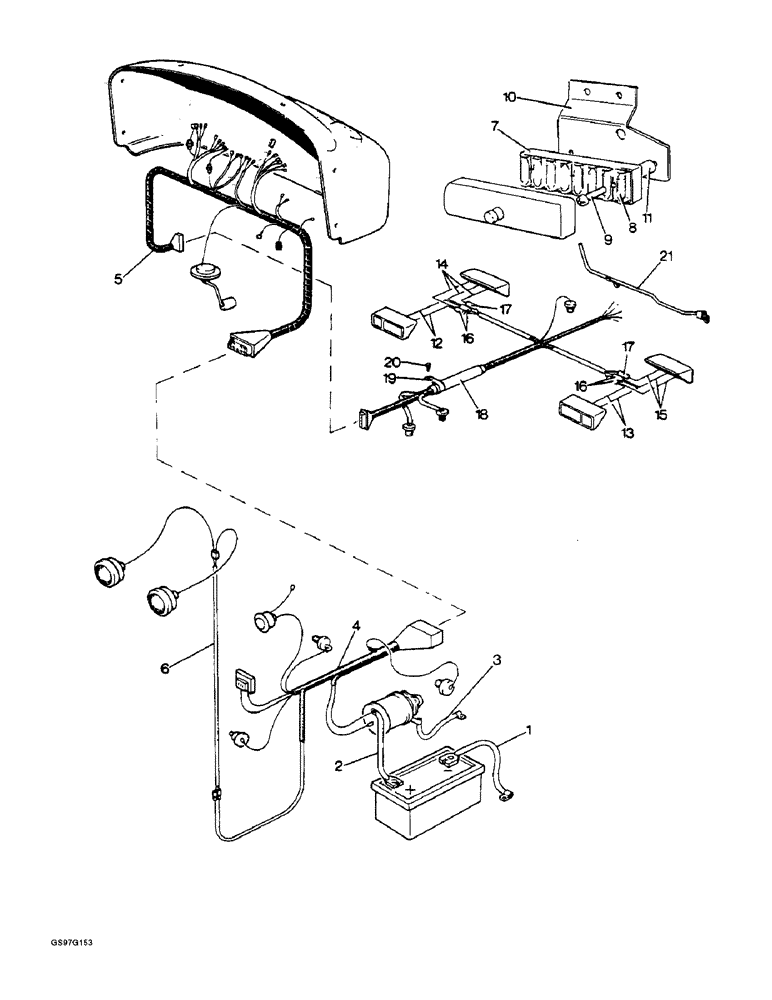

Запчасти Case IH 1210 (4-10) - ELECTRICAL WIRING, 1210G AND 1212G TRACTORS (04) - ELECTRICAL SYSTEMS

1

K917372

CABLE

battery to earth, single hydraulic pump

1шт.

2

K947407

CABLE

battery to starter, single hydraulic pump

1шт.

K11518

WASHER

CLIP single hydraulic pump (Replaces clip K621621)

1шт.

2

K949996

CABLE

battery to starter, tandem hydraulic pump

1шт.

K621641

CLIP

tandem hydraulic pump (Replaces clip K621609)

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

hex, 1/4 NC x 5/8 inch, no longer available

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

1шт.

K87560

CONTACT HOUSING

COVER rubber, starter terminal

1шт.

3

K947336

CABLE

starter to earth (Replaces cable K918762)

1шт.

4

K950143

HARNESS

engine auxiliaries, no longer available

1шт.

K19928

CLIP

buckle, harness to steering pipes, no longer available

4шт.

K925268

BLADE

BLOCK connector

2шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw K614944)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

5

K952978

HARNESS instrument panel , no longer available

1шт.

K625003

CLIP

Kwik, 3/8 inch ID

2шт.

K625004

CLIP

Kwik, 1/2 inch ID

1шт.

6

K950157

ELECTRICAL WIRE

LEAD headlamps, no longer available

1шт.

K625006

CLIP

Kwik, 1/4 inch ID

5шт.

7

K913584

FUSE

BOX ASSEMBLY, no longer available, Includes: Ref. 8

1шт.

8

K913585

FUSE

8 amp , no longer available

8шт.

9

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch (Replaces setscrew K614945)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

2шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

2шт.

10

K948500

BRACKET

fuse box, no longer available

1шт.

K603929

SCREW

set, 1/4 NC x 1-1/2 inch, no longer available

2шт.

11

K948501

BUSHING

SPACER, 5/8 inch, no longer available

2шт.

K626573

WASHER

Seloc, 1/4 inch, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

2шт.

K621600

CLIP

harness to fuse box

1шт.

12

K945591

HARNESS

side/flasher lamp, right-hand

1шт.

13

K945589

HARNESS

side/flasher lamp, left-hand, no longer available

1шт.

14

K945592

HARNESS

stop/rear/flasher lamp, right-hand

1шт.

15

K945590

HARNESS

stop/rear/flasher lamp, left-hand, no longer available

1шт.

K625000

CLIP

harness to fenders, 3/8 inch

14шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, harness to fenders (Replaces screw K614944)

2шт.

K626310

WASHER

flat, harness to fenders, 3/16 inch, no longer available

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Harness to fenders (Replaces washer K626340) #10

2шт.

K616080

NUT, No. 10 NF, harness to fenders, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Harness to fenders (Replaces washer K626341) 1/4"

12шт.

425-104

NUT,1/4"-20, Cl 5

Harness to fenders (Replaces nut K607043) 1/4"-20, G5

12шт.

16

705896R1

CONNECTOR, ELEC

two-way common (Replaces connector K86230)

4шт.

17

K67916

ELEC CONNECTOR

single

2шт.

K10518

BUCKLE

CLIP, harness to dump valve pipe

3шт.

18

K952572

HARNESS

rear, used with 1212G tractors, no longer available

1шт.

18

K952587

HARNESS

rear, used with 1210G tractors

1шт.

K621633

CABLE

CLIP stoplamp lead to frame platform

1шт.

19

K625002

FASTENER

CLIP harness to gearbox cover, no longer available

3шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Harness to gearbox cover (Replaces screw K602734) Hex, 1/4"-20 x 1/2", G5, Full Thd

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Harness to gearbox cover (Replaces washer K626341) 1/4"

3шт.

K624532

SCREW

self-tapping, earth leads to fenders, 1/2 inch, (Replaces screw K624522)

4шт.

K11519

WASHER

lock, earth leads to fenders, 3/16 inch

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Earth leads to fenders (Replaces washer K626340) #10

4шт.

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

rubber, 5/8 inch groove diameter (Replaces grommet K19930)

8шт.

K627725

GROMMET

1-1/4 inch

2шт.

K627727

GROMMET

5/8 inch

1шт.

K627724

GROMMET

1-3/16 inch

1шт.

21

K940825

CABLE

GUARD, no longer available

1шт.
