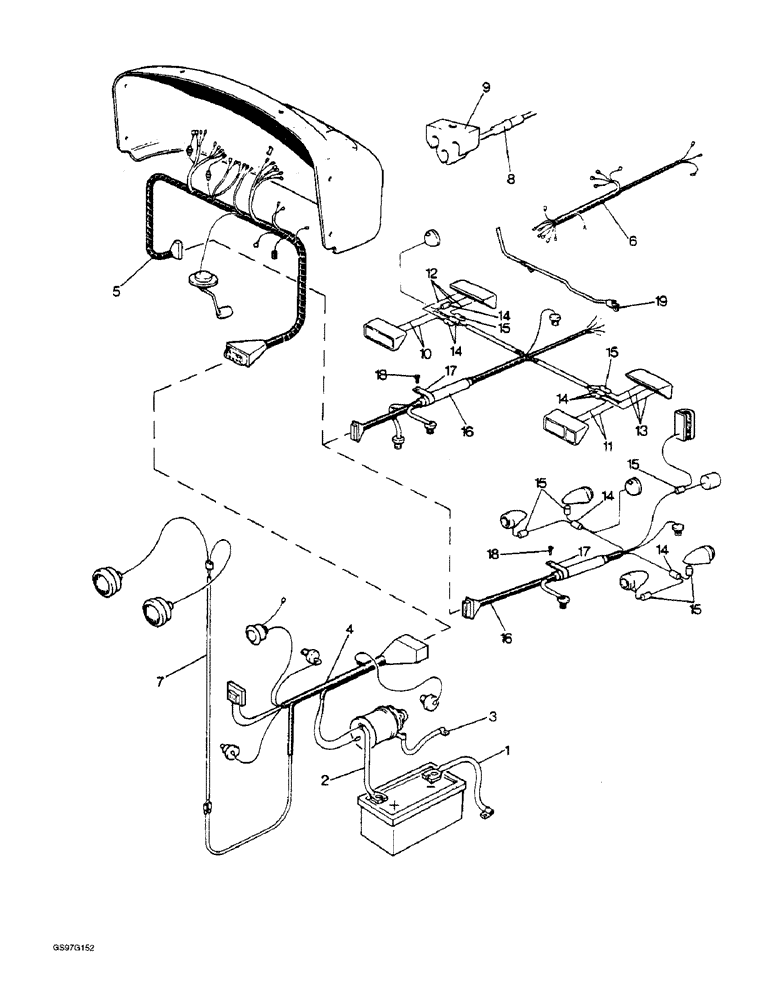

Запчасти Case IH 1210 (4-06) - ELECTRICAL WIRING, 1210 AND 1212 TRACTORS (04) - ELECTRICAL SYSTEMS

1

K947337

CABLE

battery to earth, single hydraulic pump, tractor serial number 11152567 and after

1шт.

1

K917372

CABLE

battery to earth, single hydraulic pump, tractor serial numbers, Serial Range: prior-11152567

1шт.

1

K917372

CABLE

battery to earth, tandem hydraulic pump

1шт.

2

K947407

CABLE

battery to starter, tandem hydraulic pump

1шт.

K15518

CLAMP

CLIP tandem hydraulic pump (Replaces clip K621621)

1шт.

2

K949996

CABLE

battery to starter, tandem hydraulic pump, tractor serial number 11152567 and after

1шт.

2

K947407

CABLE

battery to starter, tandem hydraulic pump, tractor serial numbers, Serial Range: prior-11152567

1шт.

K621641

CLIP

cable, tandem hydraulic pump (Replaces clip K621609)

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

hex, 1/4 NC x 5/8 inch, no longer available

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

1шт.

K87560

CONTACT HOUSING

COVER rubber, starter terminal

1шт.

3

K947336

CABLE

starter to earth (Replaces cable K918762)

1шт.

4

K947373

HARNESS

engine auxiliaries, no longer available

1шт.

K19928

CLIP

buckle, harness to steering pipes, no longer available

4шт.

K925268

BLADE

BLOCK connector

2шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw K614944)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

5

K952574

PANEL

HARNESS instrument panel, shell and fan fenders, tractor serial number 11152567 and after

1шт.

5

K947879

PANEL

HARNESS instrument panel, shell and fan fenders, tractor serial numbers, Serial Range: prior-11152567

1шт.

5

K952145

HARNESS

instrument panel, full fenders, tractor serial number 11152567 and after, no longer available

1шт.

5

K947254

HARNESS

instrument panel, full fenders, tractor serial numbers prior to 11152567, no longer available

1шт.

K625003

CLIP

Kwik, 3/8 inch ID

2шт.

K625004

CLIP

Kwik, 1/2 inch ID

1шт.

6

K947483

HARNESS

hazard warning

1шт.

7

K921571

ELECTRICAL WIRE

HARNESS inboard headlamps

1шт.

K625006

CLIP

Kwik, 1/4 inch ID

10шт.

7

K947386

ELECTRICAL WIRE

HARNESS outboard headlamps

1шт.

K625006

CLIP

Kwik, 1/4 inch ID

5шт.

8

K962358

FUSE

HOLDER

1шт.

9

K944904

RETAINER

CLIP fuse holder to panel, no longer available

1шт.

10

K945591

HARNESS

side/flasher lamp, right-hand

1шт.

11

K945589

HARNESS

side/flasher lamp, left-hand, no longer available

1шт.

12

K945592

HARNESS

stop/rear/flasher lamp, right-hand

1шт.

13

K945590

HARNESS

stop/rear/flasher lamp, left-hand, no longer available

1шт.

K625000

CLIP

harness to fenders, 3/8 inch

14шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, harness to fenders (Replaces screw K614944)

2шт.

K626310

WASHER

flat, 3/16 inch, harness to fenders, no longer available

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Harness to fenders (Replaces washer K626340) #10

2шт.

225-14210

NUT,#10-32

Harness to fenders (Replaces nut K617080) #10-32

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Harness to fenders (Replaces washer K626341) 1/4"

12шт.

425-104

NUT,1/4"-20, Cl 5

Harness to fenders (Replaces nut K607043) 1/4"-20, G5

12шт.

14

705896R1

CONNECTOR, ELEC

two-way common (Replaces connector K86230)

5шт.

15

K67916

ELEC CONNECTOR

single

2шт.

K10518

BUCKLE

CLIP buckle, harness to dump valve pipe

3шт.

16

K952575

HARNESS

rear, shell and fan fenders, 1210 tractors with serial number 11152567 and after, no longer available

1шт.

16

K952576

HARNESS

rear, shell and fan fenders, 1212 tractors with serial number 11152567 and after, no longer available

1шт.

16

K947880

HARNESS

rear, shell and fan fenders, 1210 tractors with serial numbers, Serial Range: prior-11152567

1шт.

16

K947890

HARNESS

rear, shell and fan fenders, 1212 tractors with serial numbers, Serial Range: prior-11152567

1шт.

16

K954151

HARNESS

rear, full fenders, 1210 tractors with serial number 11152567 and after, no longer available

1шт.

16

K952572

HARNESS

rear, full fenders, 1212 tractors with serial number 11152567 and after, no longer available

1шт.

16

K947739

HARNESS

rear, full fenders, 1210 tractors with serial numbers, Serial Range: prior-11152567

1шт.

16

K947740

HARNESS

rear, full fenders, 1212 tractors with serial numbers, Serial Range: prior-11152567

1шт.

K621633

CABLE

CLIP stoplamp lead to frame platform

1шт.

17

K625002

FASTENER

CLIP harness to gearbox cover, no longer available

3шт.

18

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, harness to gearbox cover, 1/4 NC x 5/8 inch, (Replaces screw K602733)

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Harness to gearbox cover (Replaces washer K626341) 1/4"

3шт.

K625003

CLIP

harness to seat, 3/8 inch, 1210 tractors with serial numbers, Serial Range: prior-11152567

2шт.

K625006

CLIP

harness to rear axle case, 1/4 inch

4шт.

K624532

SCREW

self-tapping, earth leads to fenders, 1/2 inch, (Replaces screw K624522)

4шт.

K11519

WASHER

lock, earth leads to fenders, 3/16 inch

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Earth leads to fenders (Replaces washer K626340) #10

4шт.

K627726

GROMMET

1 inch, no longer available

1шт.

K627725

GROMMET

1-1/4 inch

2шт.

K627727

GROMMET

5/8 inch

1шт.

19

K940825

CABLE

GUARD, no longer available

1шт.
