Запчасти Case IH 1210 (3-16) - ENGINE STOP CONTROLS (03) - FUEL SYSTEM

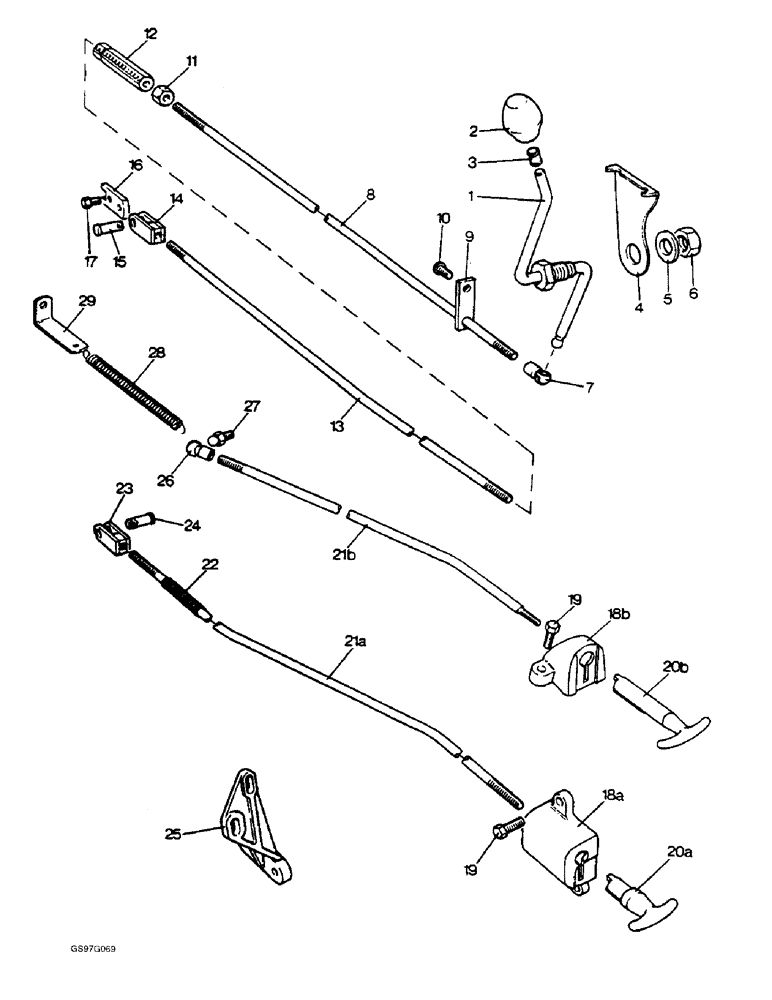

Схема запчастей Case IH 1210 - (3-16) - ENGINE STOP CONTROLS (03) - FUEL SYSTEM
10
18b
9
24
17
21a
2
15
20b
1
28
12
27
21b
16
4
14
3
26
25
20a
22
5
11
8
19
18a
6
29
19
23
13
7

Артикул

Название

Примечание

Количество

1

K950709

LEVER ASSY.

hand, stop control, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

2

K951154

KNOB

hand lever, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

3

K628473

RING

retaining, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

4

K950713

QUADRANT

lever stop, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

5

K626759

WASHER

special, 5/8 inch, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

6

425-1510

JAM NUT,Jam, 5/8"-18, G5

hex jam, 5/8 inch NF (Replaces nut K622810)

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

7

K621901

BALL JOINT

END socket

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

8

K950949

ROD

lever to adjusting sleeve, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

9

K950953

GUIDE

BRACKET, rod, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

10

K603924

SCREW

1/4 NC x 1/2 inch

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

11

K617290

NUT

No. 10 NF, left-hand, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

12

K950729

SLEEVE

adjusting, No. 10 NF, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

13

K950950

ROD

adjusting sleeve to pump, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

14

K622203

FORK

END, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

15

K913180

PIN

clevis, 1/4 x 1/2 inch

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K623605) 1/16" x 1/2"

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

16

K953181

BRACKET stop control lever, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

17

K612701

SCREW

set, 1/4 NC x 1/2 inch

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

18a

K940118

HOUSING

BRACKET stop control

1шт.

Used with 1212 and 1212G tractors.

1шт.

18a

K928168

HOUSING

BRACKET stop control, Simms injection pump, no longer available

1шт.

18b

K948326

HOUSING

BRACKET stop control, Bosch injection pump, used with rod K947232, Ref. 21B

1шт.

18b

K954278

HOUSING

BRACKET stop control, used with rod K947279, Ref. 21B

1шт.

19

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch (Replaces bolt K602704)

2шт.

Used with 1212 and 1212G tractors.

1шт.

19

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Replaces setscrew K602705) Hex, 1/4"-20 x 1", G5

2шт.

Used with 1210 and 1210G tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 1210, 1210G, 1212 and 1212G tractors (Replaces washer K19480) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607000) 1/4"-20, G5

2шт.

Used with 1212 and 1212G tractors.

1шт.

20a

K947418

HANDLE

KNOB stop control, Simms injection pump, used with 1210, 1210G, 1212 and 1212G tractors

1шт.

20b

K948342

KNOB

stop control, Bosch injection pump, used with rod K947232, Ref. 21B

1шт.

20b

K954277

KNOB

stop control, used with rod K954279, Ref. 21B

1шт.

K12939

WASHER

special, 3/16 inch, used with 1210, 1210G, 1212 and 1212G tractors

1шт.

225-14210

NUT,#10-32

Used with 1210, 1210G, 1212 and 1212G tractors (Replaces nut K617080) #10-32

1шт.

21a

K940119

ROD

engine stop

1шт.

Used with 1212 and 1212G tractors.

1шт.

21a

K928122

ROD

engine stop, Simms injection pump

1шт.

21b

K947232

ROD

engine stop, Bosch injection pump, no longer available, order bracket K954278, Ref. 18B, knob K954277, Ref. 20B, rod K954279, Ref. 21B, washer K626662 and nut 425-114

1шт.

21b

K954279

ROD

engine stop (Replaces rod K947232)

1шт.

K626662

WASHER

flat, 1/4 inch

1шт.

425-114

NUT,1/4"-28, G5

1шт.

22

K24780

SPRING

return, stop control, Simms injection pump, used with 1210, 1210G, 1212 and 1212G tractors

1шт.

K12939

WASHER

special, 3/16 inch, Simms injection pump, used with 1210, 1210G, 1212 and 1212G tractors

2шт.

23

K622203

FORK

END, No. 10 NF, Simms injection pump, used with 1210, 1210G, 1212 and 1212G tractors, no longer available

1шт.

225-14210

NUT,#10-32

Simms injection pump, used with 1210, 1210G, 1212 and 1212G tractors (Replaces nut K617080) #10-32

1шт.

24

K913180

PIN

clevis, 1/4 x 5/8 inch, Simms injection pump, used with 1210, 1210G, 1212 and 1212G tractors

1шт.

K11934

PIN

split, 1/16 x 1/2 inch, Simms injection pump, used with 1210, 1210G, 1212 and 1212G tractors

1шт.

25

K928761

BRACKET

injection pump controls, used with 1210, 1210G, 1212 and 1212G tractors, no longer available

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to injection pump, used with 1210, 1210G, 1212 and 1212G tractors (Replaces washer K19481) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, bracket to injection pump, used with 1210, 1210G, 1212 and 1212G tractors (Replaces nut K607001)

2шт.

26

K621902

END ASSY.

socket, 1/4 BSF, Bosch injection pump

1шт.

27

K621906

PIN

END ball, 1/4 BSF, Bosch injection pump

1шт.

K19440

NUT

lock, 1/4 BSF, Bosch injection pump

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bosch injection pump (Replaces washer K19480) 1/4"

1шт.

K19401

NUT

1/4 BSF, Bosch injection pump

1шт.

28

K624926

SPRING

return, Bosch injection pump

1шт.

29

K947534

SPRING

BRACKET anchor, return spring, Bosch injection pump

1шт.

Выбрано товаров: 86
