Запчасти Case IH 1210 (3-12) - ENGINE THROTTLE CONTROLS (03) - FUEL SYSTEM

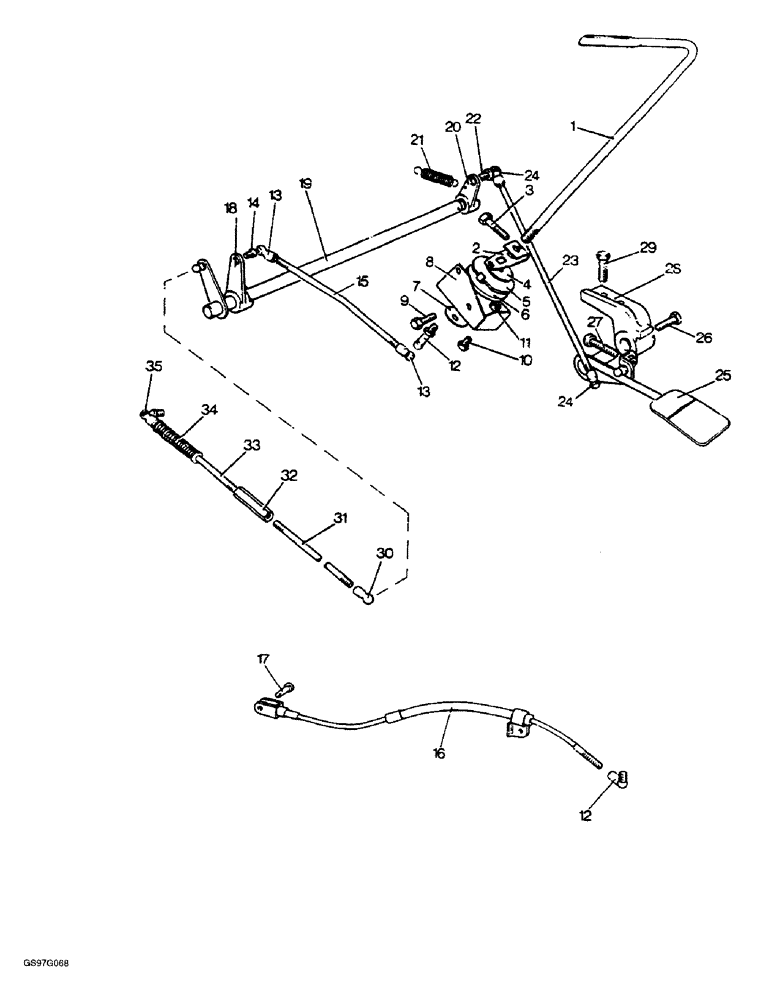

Схема запчастей Case IH 1210 - (3-12) - ENGINE THROTTLE CONTROLS (03) - FUEL SYSTEM
24
33
29
3
18
16
12
25
35
20
11
17
10
15
22
7
12
23
27
13
34
13
14
26
9
32
31
30
6
1
21
25
4
24
2
5
8
19

Артикул

Название

Примечание

Количество

1

K919002

LEVER

hand

1шт.

2

K919003

LEVER

BRACKET

1шт.

3

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

hex, bracket to hand lever, 1/4 NC x 1-3/8 inch, (Replaces bolt K600144)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bracket to hand lever (Replaces washer K19480) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

Bracket to hand lever (Replaces nut K607000) 1/4"-20, G5

1шт.

4

K19472

WASHER

flat, 3/8 inch

1шт.

5

K919004

DRIVE

PLATE

1шт.

6

K917612

DISC

friction

1шт.

7

K626741

WASHER

Belleville, 3/8 inch

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking (Replaces nut K607302) 3/8"-16, GB

1шт.

8

K940117

SUPPORT

BRACKET, no longer available

1шт.

Used with 1212 and 1212G tractors.

1шт.

8

K919001

SUPPORT

BRACKET, no longer available

1шт.

Used with 1210 and 1210G tractors.

1шт.

9

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, bracket to steering box, 1/4 NC x 7/8 inch, (Replaces setscrew K602704)

3шт.

Used with 1212 and 1212G tractors.

1шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Bracket to steering box (Replaces setscrew K602703) Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

Used with 1210 and 1210G tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bracket to steering box, one used with 1210 and 1210G tractors, three used with 1212 and 1212G tractors (Replaces washer K19480) 1/4"

1шт.

K614021

SET SCREW,#10 - 32 x 1/2"

set, bracket to steering box, No. 10 NF x 1/2 inch

2шт.

Used with 1210 and 1210G tractors.

1шт.

93-2

WASHER lock, No. 10 (Replaces washer K19488)

2шт.

Used with 1210 and 1210G tractors.

1шт.

10

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Hand lever stops (Replaces setscrew K602734) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

K626662

WASHER

flat, hand lever stops, 1/4 inch, (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Hand lever stops (Replaces washer K626341) 1/4"

2шт.

11

K943634

NUT

special, hand lever stops, 1/4 inch NC

2шт.

12

K621905

BALL

END, rod, 1/4 BSF

1шт.

Used with 1212 and 1212G tractors.

1шт.

12

K621900

UNIVERSAL JOINT

ball, cable

1шт.

Used with 1210 and 1210G tractors.

1шт.

13

K621902

END ASSY.

socket, throttle rod, 1/4 BSF

2шт.

Used with 1212 and 1212G tractors.

1шт.

14

K621906

PIN

END ball, throttle rod, 1/4 BSF

1шт.

Used with 1212 and 1212G tractors.

1шт.

K19401

NUT

throttle rod, 1/4 BSF

2шт.

Used with 1212 and 1212G tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Throttle rod 1/4"

2шт.

Used with 1212 and 1212G tractors.

1шт.

K19440

NUT

lock, throttle rod, 1/4 BSF

2шт.

Used with 1212 and 1212G tractors.

1шт.

15

K940128

ROD

hand lever to cross shaft, throttle rod

1шт.

Used with 1212 and 1212G tractors.

1шт.

225-14210

NUT,#10-32

Throttle cable (Replaces nut K617080) #10-32

1шт.

Used with 1210 and 1210G tractors.

1шт.

16

K923283

CABLE

complete, throttle

1шт.

Used with 1210 and 1210G tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Throttle cable 1/4"

1шт.

Used with 1210 and 1210G tractors.

1шт.

K19401

NUT

1/4 BSF, throttle cable

1шт.

Used with 1210 and 1210G tractors.

1шт.

17

K920004

PIN

clevis, throttle cable, 3/16 x 3/8 inch

1шт.

Used with 1210 and 1210G tractors.

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Throttle cable (Replaces pin K11934) 1/16" x 1/2"

1шт.

Used with 1210 and 1210G tractors.

1шт.

18

K928117

LEVER cross shaft

1шт.

Used with 1212 and 1212G tractors.

1шт.

18

K929561

LEVER

cross shaft

1шт.

Used with 1210 and 1210G tractors.

1шт.

19

K928189

SHAFT

cross, no longer available

1шт.

K19472

WASHER

flat, 3/8 inch, lever to fuel tank support

1шт.

20

K928178

LEVER

cross shaft

1шт.

135-735

GROOVED PIN,5/32" x 3/4", Type E

(Replaces pin K623747) 5/32" x 3/4", Type E

2шт.

21

K624938

SPRING

return

1шт.

22

K621906

PIN

END ball, 1/4 BSF

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

K19401

NUT

hex, 1/4 BSF

1шт.

23

K928188

ROD

pedal to cross shaft, no longer available

1шт.

24

K621902

END ASSY.

socket, 1/4 BSF

2шт.

K19440

NUT

lock, 1/4 BSF

2шт.

25

K942134

PEDAL

accelerator

1шт.

K19476

WASHER

flat, 3/4 inch

1шт.

K88751

WASHER

special, 3/8 inch

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

26

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces setscrew K602902) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

27

K610252

BOLT

pedal stop, 1/4 BSF x 1-1/16 inch, no longer available (Replaces bolt K620500)

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

hex jam, 1/4 inch NF (Replaces locknut K19440)

1шт.

28

K940909

BRACKET

PEDAL support

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, bracket to frame, 5/16 NC x 1 inch, (Replaces setscrew K602805)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to frame (Replaces washer K19481) 5/16"

2шт.

30

K621902

END ASSY.

socket, 1/4 BSF

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

lock, 1/4 BSF (Replaces nut K19440)

3шт.

31

K929575

ROD

cross shaft to adjusting sleeve, Simms injection pump

1шт.

31

K947231

ROD

cross shaft to adjusting sleeve, Bosch injection pump

1шт.

Used with 1210 and 1210G tractors.

1шт.

32

K38598

SLEEVE

adjusting, 1/4 BSF, no longer available

1шт.

K12285

NUT

lock, left-hand, 1/4 BSF

1шт.

33

K929574

ROD

adjusting sleeve to injection pump, no longer available

1шт.

34

K625260

SPRING

throttle return, Simms injection pump

1шт.

K626662

WASHER

1/4 inch, Simms injection pump (Replaces washer K19470)

1шт.

35

K621902

END ASSY.

socket, 1/4 BSF

1шт.

K621906

PIN

END ball, 1/4 BSF

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

K19401

NUT

1/4 BSF

1шт.

Выбрано товаров: 95
