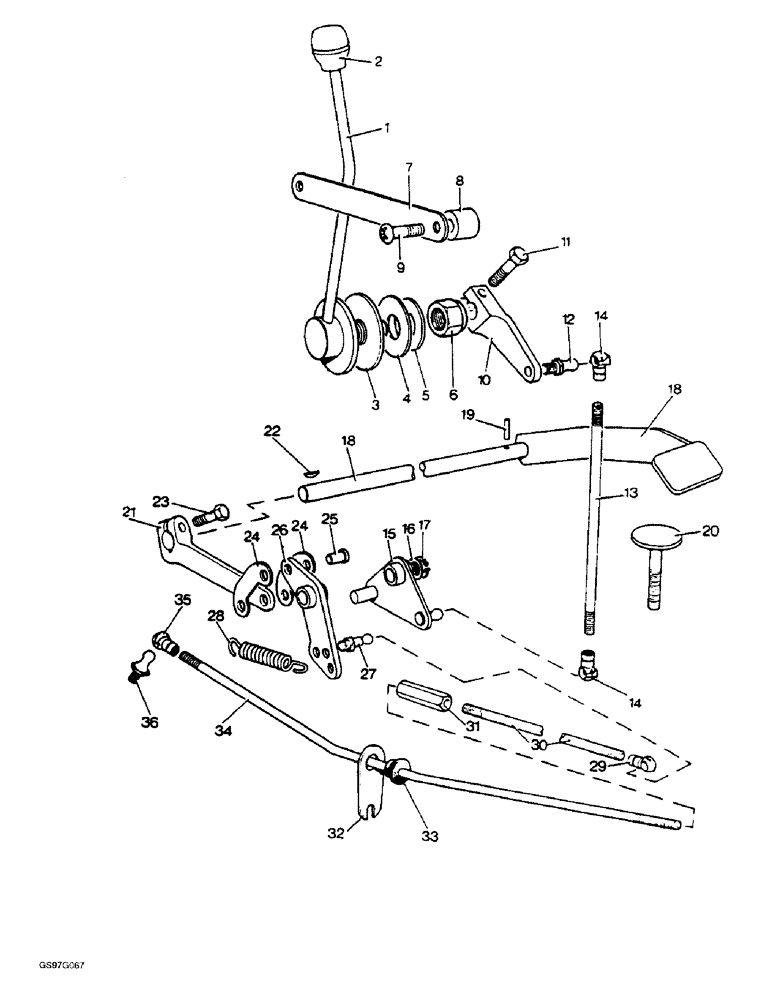

Запчасти Case IH 1210 (3-10) - ENGINE THROTTLE CONTROLS, 1210Q, 1210SK, 1212Q AND 1212SK TRACTORS FOR EUROPE ONLY (03) - FUEL SYSTEM

1

K951915

LEVER

hand, throttle control

1шт.

2

K950493

KNOB

hand lever

1шт.

3

K950724

DISC

friction

1шт.

4

K626740

WASHER

flat, 5/8 inch

1шт.

5

K626855

WASHER

flat, 5/8 inch

1шт.

6

131-377

LOCK NUT,5/8"-11, GC

Nyloc, 5/8 inch NF

1шт.

7

K950723

STRIP

guide

1шт.

8

K950722

BUSHING

SPACER guide strip

2шт.

9

K603929

SCREW

1/4 NC x 1-1/4 inch

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

10

K950714

LEVER

accelerator shaft

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

1шт.

12

K621904

BALL JOINT

END

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

425-114

NUT,1/4"-28, G5

(Replaces nut K616980) 1/4"-28, G5

1шт.

13

K950725

ROD

accelerator shaft lever to override lever

1шт.

14

K621903

BALL JOINT

END socket

2шт.

425-114

NUT,1/4"-28, G5

(Replaces nut K616980) 1/4"-28, G5

2шт.

15

K950715

LEVER

override

1шт.

16

K626922

SHIM,.030" Thk

1шт.

17

K621562

RING, SNAP

3/8 inch OD

1шт.

18

K951977

PEDAL

AND SHAFT accelerator

1шт.

K626686

WASHER

flat, 1/2 inch

1шт.

19

K623943

SPRING

PIN, 3/32 x 7/8 inch

1шт.

20

K952111

STOP

pedal

1шт.

B90395

lock, 1/4 inch NC (Replaces nut K607080)

1шт.

21

K954122

LEVER

accelerator shaft to intermediate lever

1шт.

22

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Lever to shaft, S/N 11154968 and after (Replaces key K19604) #5, 1/8" x 5/8"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Lever to shaft (Replaces washer K626341) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

Lever to shaft (Replaces nut K607043) 1/4"-20, G5

1шт.

24

K954498

LINK

PLATE, lever to intermediate lever (Replaces plate K950726)

2шт.

25

K913180

PIN

clevis, lever to intermediate lever, 1/4 x 1/2 inch

2шт.

K626662

WASHER

flat, lever to intermediate lever, 1/4 inch

1шт.

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Lever to intermediate lever 1/16" x 1/2"

2шт.

26

K949051

LEVER

intermediate

1шт.

27

K621905

BALL

END

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

K19401

NUT

1/4 BSF

1шт.

28

K624960

SPRING

return (Replaces spring K906456)

1шт.

29

K621903

BALL JOINT

END socket

1шт.

425-114

NUT,1/4"-28, G5

(Replaces nut K616980) 1/4"-28, G5

1шт.

30

K950721

ROD

lever to adjusting sleeve

1шт.

K617593

NUT

hex, left-hand, 1/4 inch NF

1шт.

31

K949065

SLEEVE

adjusting, 1/4 inch NF

1шт.

425-114

NUT,1/4"-28, G5

(Replaces nut K616980) 1/4"-28, G5

1шт.

32

K950727

GUIDE

BRACKET

1шт.

33

K628756

BUSHING

bracket

1шт.

34

K950947

ROD

adjusting, Serial Range: sleeve-pump

1шт.

425-114

NUT,1/4"-28, G5

(Replaces nut K616980) 1/4"-28, G5

1шт.

35

K621903

BALL JOINT

END socket

1шт.

36

K621904

BALL JOINT

END

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

425-114

NUT,1/4"-28, G5

(Replaces nut K616980) 1/4"-28, G5

1шт.

11

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Replaces bolt K600153) Hex, 1/4"-20 x 1 1/4", G5

1шт.

23

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Lever to shaft (Replaces bolt K600153) Hex, 1/4"-20 x 1 1/4", G5

1шт.
