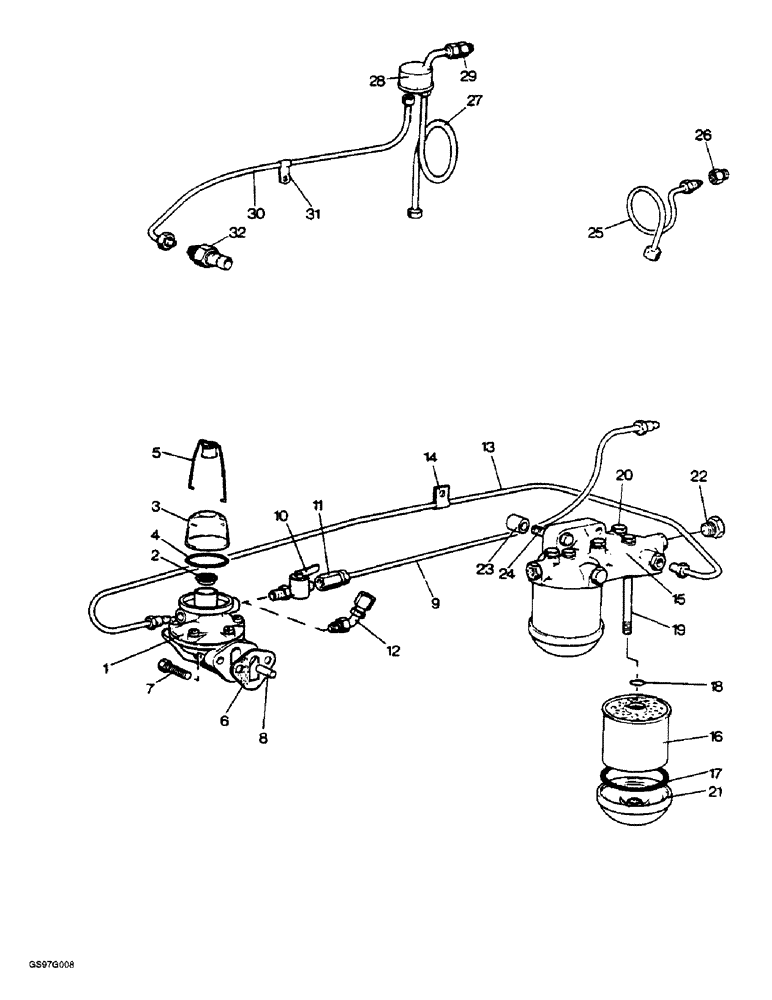

Запчасти Case IH 1210 (3-06) - FUEL FEED PUMP, FILTERS AND PIPES (03) - FUEL SYSTEM

1

K311939

FEED PUMP

ASSEMBLY, fuel feed (Replaces pump assembly K944997), Includes: Ref. 2 - 5 and Diaphragm

1шт.

2

K961675

FILTER SCREEN

SCREEN

1шт.

3

K66442

FILTER BOWL

1шт.

4

K961674

SEAL

GASKET filter bowl

1шт.

5

K961676

BAIL

STIRRUP feed pump, includes screw

1шт.

K911917

DIAPHRAGM

feed pump

1шт.

6

K902136

GASKET

feed pump

1шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch (Replaces setscrew K602807)

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

2шт.

K626682

WASHER

flat, 5/16 inch (Replaces washer K19471)

2шт.

8

K911928

PUSH ROD,9.51mm OD x 35.99mm L

push, feed pump

1шт.

9

K944998

PIPE

fuel, tank to feed pump

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

9

K951956

PIPE

fuel, tank to feed pump

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

10

K622061

VALVE

TAP fuel

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

11

K626076

FITTING

UNION 1/2 inch NF

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

12

K951062

EXTENSION

PIPE

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

13

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

fuel, feed pump to filter

1шт.

14

K621603

CLIP

pipe to manifold stud

1шт.

15

K906708

FILTER

ASSEMBLY fuel, APF 62900, no longer available, Includes: Ref. 16 - 21

1шт.

Order filter head B506443. Seals and elements must be ordered separately.

1шт.

16

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ASSEMBLY, fuel filter, no longer available, order kit 3044506R93, Includes: Ref. 17 and 18

2шт.

17

3123890R1

SEALING WASHER

sealing, upper (Replaces rings K960936 and K965802)

1шт.

17

3123889R1

SEALING WASHER

sealing, lower (Replaces ring K965801)

1шт.

18

K960937

O-RING

1/2 inch ID

1шт.

19

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

hex, 5/16 NC x 4-3/4 inch (Replaces bolt K600360)

2шт.

K963409

RING

WASHER sealing, 5/16 inch

2шт.

20

K965010

PLUG

vent, 5/16 NC

1шт.

K15734

WASHER

aluminum, 5/16 inch

1шт.

21

K962264

COVER

BASE fuel filter

2шт.

22

445078

PLUG

1/2 inch NF (Replaces plug K619541)

1шт.

K15735

WASHER

sealing

1шт.

23

A76093

BUSHING

SPACER distance (Replaces spacer K627042)

2шт.

24

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Replaces K600406) Hex, 3/8"-16 x 1 3/4", G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

25

K947872

PIPE

fuel, leak-off to tank, no longer available

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

25

K953679

PIPE

fuel, leak-off to tank, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

26

K618901

ADAPTER

3/8 inch NF

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

fibre, 3/8 inch

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

27

K203169

RETURN PIPE

fuel, leak-off to reservoir, if used (Replaces pipe K944802)

1шт.

28

K944744

RESERVOIR

fuel, if used

1шт.

29

K618900

ADAPTER

1/2 - 3/8 inch NF, if used

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

fibre, 3/8 inch, if used

1шт.

30

K205367

HOSE,0.187" OD x 33.5" L

PIPE fuel, thermostart, if used (Replaces pipe K944797)

1шт.

31

K621687

CLIP

fuel pipe, if used

2шт.

32

K928523

GLOW PLUG

THERMOSTART, CAV 1854102

1шт.

K626957

WASHER

- fibre, 7/8 inch (Replaces washer K19502)

1шт.

3044506R93

FILTER, FUEL

KIT service, fuel filter element

1шт.
