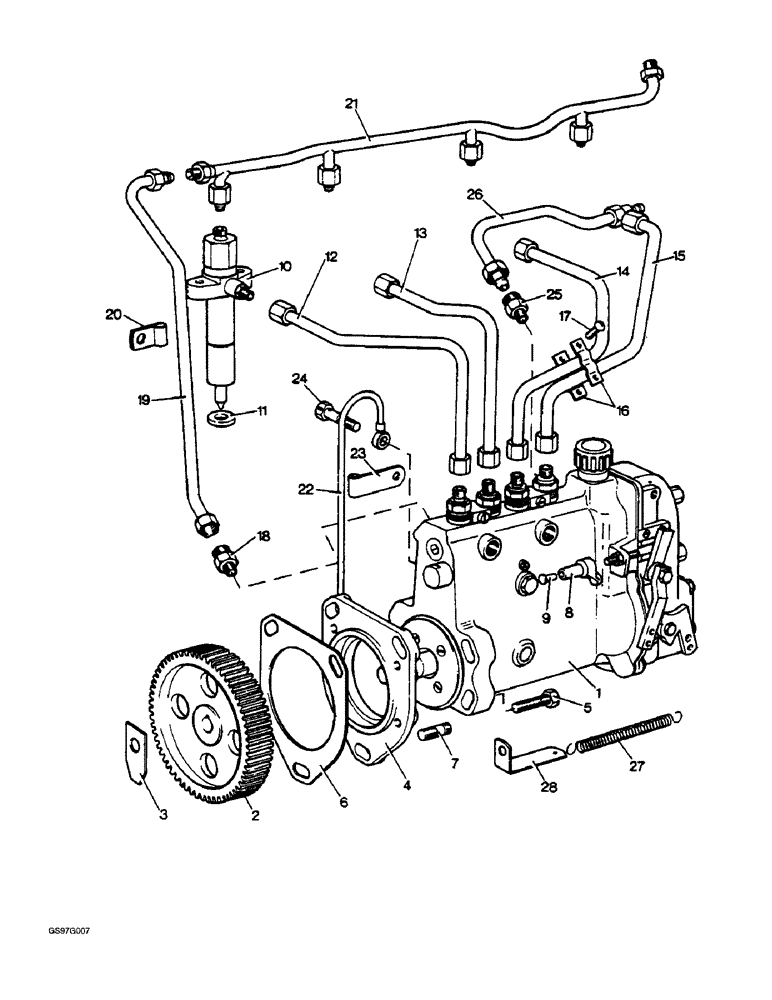

Запчасти Case IH 1210 (3-04) - BOSCH INJECTION PUMP AND FUEL SYSTEM, 1210 SERIES TRACTOR (03) - FUEL SYSTEM

1

K947199

PUMP

fuel injection, Bosch PES4A85D 210RS 1286 EP/RSV300-1150 A2B 708L, no longer available

1шт.

2

K945096

GEAR

drive, steel, 47 tooth

1шт.

K11262

KEY

Woodruff, No. 505, Serial Range: gear-pump

1шт.

3

K626429

WASHER

tab, Serial Range: gear-pump

1шт.

K947197

NUT

gear to pump, no longer available, 14 mm

1шт.

4

K946856

ADAPTER

PLATE

1шт.

5

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex, pump to adapter plate, 3/8 NC x 1-3/8 inch

4шт.

K19472

WASHER

flat, 3/8 inch, pump to adapter plate

3шт.

492-11038

LOCK WASHER,3/8"

pump to adapter plate (Replaces washer K19482) 3/8"

4шт.

6

K946857

GASKET

adapter, Serial Range: plate-engine

1шт.

7

K608219

STUD

adapter plate to engine, 3/8 NC x 1-1/4 inch, no longer available

3шт.

K19472

WASHER

flat, adapter plate to engine, 3/8 inch

3шт.

492-11038

LOCK WASHER,3/8"

adapter plate to engine (Replaces washer K19482) 3/8"

3шт.

280136

NUT,3/8"-16, G8

Adapter plate to engine 3/8"-16, G8

3шт.

8

K948096

CAP

maximum speed stop, no longer available

1шт.

9

K948097

SEAL

maximum speed cap

1шт.

10

K954826

INJECTOR ASSY.

CAV 5288401, used with 1210 Series tractors with engine serial number E801659 and after, no longer available, order nozzle K942176 below, Includes: Holder and Nozzle

4шт.

K954827

NOZZLE INJECTION

HOLDER, CAV BKBL 97s 5439, no longer available, order nozzle K942176 below

1шт.

K942176

NOZZLE CAP

CAV BDLL 140s 6592

1шт.

K620460

ADAPTER

M8 - 1/8 BSP, used with injector assembly K954826

4шт.

K36374

WASHER

copper, 8 mm, used with injector assembly K954826

4шт.

10

K942175

NOZZLE CAP

INJECTOR ASSEMBLY, CAV 5253806, used with 1210 Series tractors with engine serial numbers prior to E801659, no longer available, order nozzle K942176, Includes: Ref. 11, Holder, and Nozzle

4шт.

K904261

NOZZLE CAP

HOLDER, CAV BKBL 97S 5152, order injector assembly K942175

1шт.

K942176

NOZZLE CAP

CAV BDLL 140S 6592

1шт.

11

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

copper, injectors to cylinder head (Replaces washer K901092)

1шт.

425-105

NUT,5/16"-18, G5

- hex, injectors to cylinder head, 5/16 inch NC (Replaces nut K607001)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , injectors to cylinder head (Replaces washer K19481) 5/16"

8шт.

12

K947123

PIPE

fuel, injection pump to No. 1 cylinder, no longer available

1шт.

13

K947124

PIPE

fuel, injection pump to No. 2 cylinder, no longer available

1шт.

14

K947125

PIPE

fuel, injection pump to No. 3 cylinder, no longer available

1шт.

15

K947126

PIPE

fuel, injection pump to No. 4 cylinder, no longer available

1шт.

K900845

NUT

NUT union, injector pipes, 12 mm

8шт.

K947203

FERRULE

OLIVE injector pipes, 7/32 inch pipe ID

8шт.

16

K657141

COLLAR

CLIP injector pipes (Replaces clip K14673)

4шт.

17

K12217

SCREW,0.185" x 5/8"

injector pipes, 2 BA x 5/8 inch

4шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

4шт.

K11109

NUT

2 BA, injector pipes

4шт.

K960936

RING

sealing, no longer available

2шт.

18

K947869

FITTING

ADAPTER, 14 mm - 1/8 BSP

1шт.

K626891

WASHER

sealing, 9/16 inch

1шт.

19

K947868

PIPE

leak-off, injection pump, no longer available

1шт.

20

K621610

CLIP

, Serial Range: pipe-manifold

1шт.

21

K947870

PIPE

leak-off, injectors

1шт.

22

K949464

PIPE

injection pump overflow, also order clip K621687 below (Replaces pipe K948061)

1шт.

23

K621687

CLIP

injection pump overflow pipe

1шт.

24

K948114

BOLT

banjo, 10 mm

1шт.

K948115

WASHER

sealing, 10 mm

2шт.

25

K947076

FITTING

ADAPTER, 14 mm - 1/2 inch NF, no longer available

1шт.

K626891

WASHER

sealing, 14 mm

1шт.

26

K947127

PIPE

fuel, filter to injection pump

1шт.

27

K624926

SPRING

return, stop lever

1шт.

28

K947534

SPRING

BRACKET anchor, return spring

1шт.
