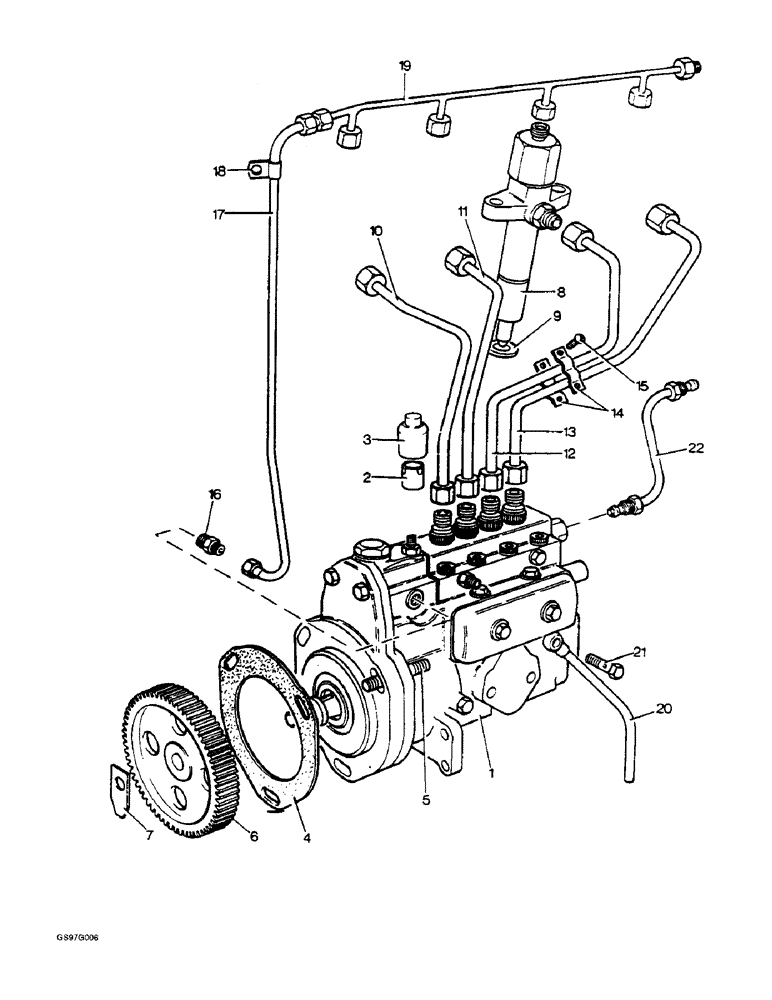

Запчасти Case IH 1210 (3-02) - SIMMS INJECTION PUMP AND FUEL SYSTEM (03) - FUEL SYSTEM

1

K956620

PUMP, FUEL INJECTION

fuel (Replaces injection pumps K922691 and K942174)

1шт.

2

K954858

SPRING

CLIP, maximum fuel adjuster, no longer available

1шт.

3

K954859

COVER

maximum fuel adjuster, no longer available

1шт.

4

K912485

GASKET

pump to carrier plate

1шт.

5

K608137

STUD

pump to carrier plate, 5/16 NC x 1-7/8 inch

3шт.

K626682

WASHER

flat, pump to carrier plate, 5/16 inch (Replaces washer K19471)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , pump to carrier plate (Replaces washer K19481) 5/16"

3шт.

425-105

NUT,5/16"-18, G5

- hex, pump to carrier plate, 5/16 inch NC (Replaces nut K607001)

3шт.

6

K945096

GEAR

drive, steel, 47 tooth

1шт.

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(Replaces key K11262) #6, 5/32" x 5/8"

1шт.

7

K626429

WASHER

tab

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

(Replaces nut K617054) Jam, 1/2"-20, G5

1шт.

8

K954826

INJECTOR ASSY.

CAV 5288401, 1210 tractors with engine serial number E751274 and after, 1212 tractors with engine serial number E222794 and after, no longer available, order nozzle K942176 below, Includes: Injector and Nozzle

4шт.

K954827

NOZZLE INJECTION

INJECTOR, CAV BKBL 97S 5439, no longer available, order nozzle K942176 below

1шт.

K942176

NOZZLE CAP

CAV BDLL 140S 6592

1шт.

K620460

ADAPTER

M8 - 1/8 BSP, used with injector assembly K954826

4шт.

K36374

WASHER

copper, 8 mm, used with injector assembly K954826

4шт.

8

K942175

NOZZLE CAP

INJECTOR ASSEMBLY, CAV 5253806, 1210 tractors with engine serial numbers prior to E751274, 1212 tractors with engine serial numbers prior to E222794, no longer available, order nozzle K942176, Includes: Ref. 9, Holder and Nozzle

4шт.

NSS

NOT SOLD SEPARAT

HOLDER, CAV BKBL 97S 5152, order injector assembly

1шт.

K942176

NOZZLE CAP

CAV BDLL 140S 6592

1шт.

9

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

copper, injectors to cylinder head (Replaces washer K901092)

1шт.

425-105

NUT,5/16"-18, G5

- hex, injectors to cylinder head, 5/16 inch NC (Replaces nut K607001)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , injectors to cylinder head 5/16"

8шт.

10

K914624

PIPE

fuel, injection pump to No. 1 cylinder

1шт.

11

K914626

PIPE

fuel, injection pump to No. 2 cylinder

1шт.

12

K914628

PIPE

fuel, injection pump to No. 3 cylinder

1шт.

13

K914630

PIPE

fuel, injection pump to No. 4 cylinder

1шт.

K900845

NUT

NUT union, 12 mm, injector pipes

8шт.

K947203

FERRULE

OLIVE injector pipes, 7/32 inch pipe ID

8шт.

14

K914673

CAMSHAFT

CLAMP injector pipes, no longer available

4шт.

15

K12217

SCREW,0.185" x 5/8"

2 BA x 5/8 inch

4шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

4шт.

K11109

NUT

2 BA

4шт.

16

K626068

FITTING

ADAPTER 8 mm - 1/8 BSP

1шт.

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

sealing (Replaces washer K15734)

1шт.

17

K947871

PIPE

leak-off, injection pump

1шт.

18

K621707

CLIP

, Serial Range: pipe-manifold

1шт.

19

K947870

PIPE

leak-off, injectors

1шт.

20

K208029

HOSE

PIPE injection pump overflow (Replaces pipe K915350)

1шт.

21

K921095

BANJO BOLT

banjo, 5/16 inch NF

1шт.

K36374

WASHER

sealing, 5/16 inch

2шт.

22

K912488

PIPE

fuel, filter to injection pump

1шт.
