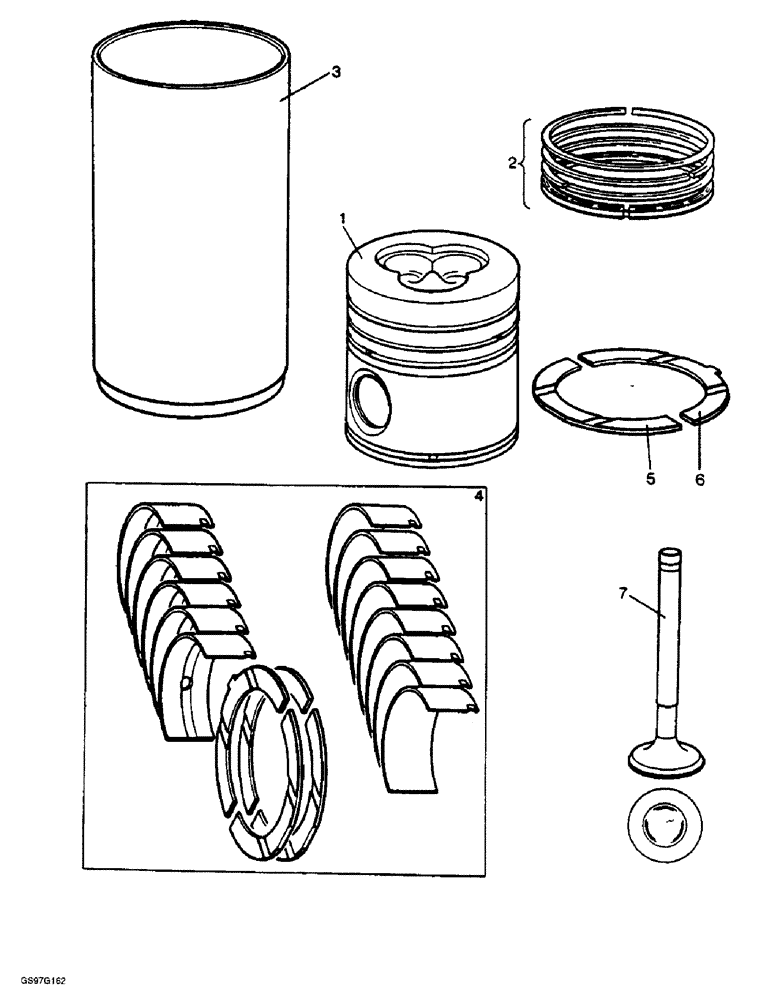

Запчасти Case IH 1210 (2-22) - SERVICE PARTS (02) - ENGINE

1

K949719

PISTON

ASSEMBLY complete, 0.020 inch oversize, Includes: Ring's

4шт.

K943885

RING, PISTON

No. 1, compression

1шт.

K943886

RING, PISTON

No. 2 and 3, compression

2шт.

K206961

RING, PISTON

scraper (Replaces ring K917412)

1шт.

2

K261069

SET OF RINGS

KIT oil control ring, standard, one per piston (Replaces kit K964731)

4шт.

K261070

PISTON RING SET

KIT oil control ring, 0.020 inch oversize, one per piston (Replaces kit K964730)

4шт.

3

K964857

LINER, ENGINE CYLIND

LINER

4шт.

4

K964158

BEARING WASHER

KIT bearing, crankshaft, main and large end, with thrust washers, normal size, Includes: Bearing's

1шт.

K928541

HALF-BEARING, CRANKS

main, halves

6шт.

K207436

HALF-BEARING, CRANKS

large end, halves (Replaces bearing K911904)

8шт.

K962163

BEARING

KIT, crankshaft, main and large end, 0.010 inch undersize, no longer available as a kit, order components, Includes: Bearing's

1шт.

K928554

BEARING SET

main, undersize, halves, 0.010 inch

6шт.

K207497

HALF-BEARING, CRANKS

large end, 0.010 inch undersize, halves (Replaces bearing K912638)

8шт.

K962164

BEARING

KIT, crankshaft, main and large end, 0.020 inch undersize, no longer available as a kit, order components, Includes: Bearing's

1шт.

K928555

BEARING SET

main, 0.020 inch undersize, halves

6шт.

K207498

HALF-BEARING, CRANKS

large end, 0.020 inch undersize, halves (Replaces bearing K912639)

8шт.

5

K928542

SET

WASHER thrust, upper, standard

2шт.

5

K928560

THRUST WASHER

WASHER thrust, upper, 0.005 inch oversize

2шт.

5

K928562

WASHER, THRUST

upper, 0.020 inch oversize

2шт.

6

K928543

SET

WASHER thrust, lower, standard

2шт.

6

K928561

WASHER

thrust, lower, 0.005 inch oversize

2шт.

6

K928563

RING

WASHER thrust, lower, 0.020 inch oversize

2шт.

7

K928622

STD INLET VALVE

inlet and exhaust, standard stem

1шт.

7

K928986

VALVE

inlet and exhaust, 0.010 inch oversize stem

1шт.

7

K928987

VALVE

inlet and exhaust, 0.020 inch oversize stem

1шт.

K964629

BLOCK

short, no longer available, order short block K965716 and oil filter K200037, engine

1шт.

K965716

SKELETON ENGINE

BLOCK short, engine

1шт.
