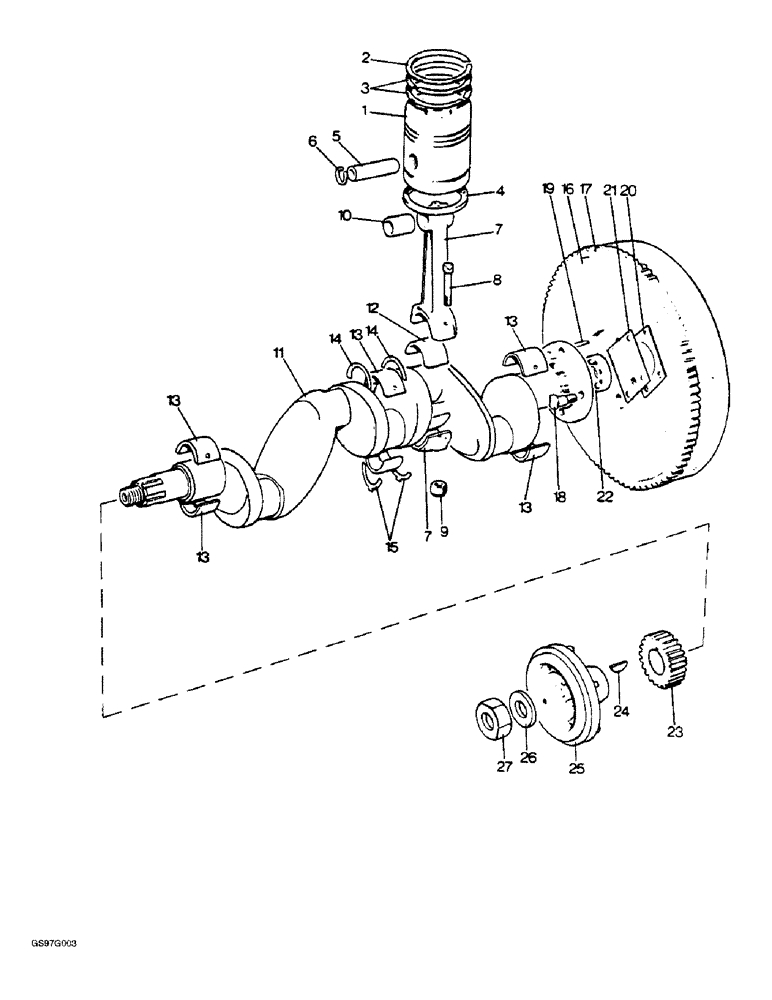

Запчасти Case IH 1210 (2-20) - PISTONS, CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

K949474

PISTON & RINGS KIT

ASSEMBLY standard bore, no longer available, order kit K261069, Includes: Ref. 2 - 6

4шт.

2

K943881

RING, PISTON

No. 1 compression, order kit K261069

1шт.

For non-standard size components, see Figure 9-114.

1шт.

3

K943882

RING, PISTON

No. 2 and 3 compression, order kit K261069

2шт.

For non-standard size components, see Figure 9-114.

1шт.

4

K206956

RING, PISTON

scraper

1шт.

For non-standard size components, see Figure 9-114.

1шт.

5

K904370

PIN

gudgeon

1шт.

6

K34501

RING, SNAP

CIRCLIP internal, 1-1/4 inch

2шт.

7

K80043

ROD, CONNECTING

ASSEMBLY, Includes: Ref. 8 - 10

2шт.

8

K207581

STEP BOLT

special, 7/16 BSF (Replaces bolt K905198)

2шт.

9

K623151

LOCK NUT

self-locking, 7/16 BSF

2шт.

10

K31669

BEARING

small end

1шт.

11

K962157

CRANKSHAFT

ASSEMBLY engine, no longer available, order components, Includes: Ref. 12 - 15

1шт.

12

K207436

HALF-BEARING, CRANKS

large end, two halves, standard diameter journals (Replaces bearing K911904, K206436)

8шт.

13

K928541

HALF-BEARING, CRANKS

main, two halves, standard diameter journals

6шт.

14

K928542

SET

WASHER thrust, upper, standard diameter journals

2шт.

15

K928543

SET

WASHER thrust, lower, standard diameter journals

2шт.

16

K953657

FLYWHEEL

ASSEMBLY Laycock clutch, no longer available, Includes: Ref. 17

1шт.

16

K948018

FLYWHEEL

ASSEMBLY Borg and Beck clutch, no longer available, Includes: Ref. 17

1шт.

17

K36134

GEAR

RING starter

1шт.

18

K903431

STEP BOLT

special, flywheel to crankshaft, 7/16 NF

4шт.

425-117

NUT,7/16"-20, G5

Flywheel to crankshaft (Replaces nut K616968) 7/16"-20, G5

4шт.

19

K10629

PIN

dowel, flywheel to crankshaft, 1/2 x 15/16 inch

1шт.

20

K910883

WASHER

tab, Serial Range: flywheel-crankshaft

1шт.

21

K912323

HOUSING

DISC locating, clutch plate

1шт.

22

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

ball, clutch shaft spigot

1шт.

23

K945094

GEAR

steel, 34 tooth

1шт.

24

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(Replaces key K19608) #9, 3/16" x 3/4"

1шт.

25

K944348

PULLEY

with front drive fitting

1шт.

26

K626403

WASHER

special, 1 inch

1шт.

27

K623300

NUT

special, 1 inch

1шт.

K261069

SET OF RINGS

KIT

1шт.

For non-standard size components, see Figure 9-114.

1шт.
