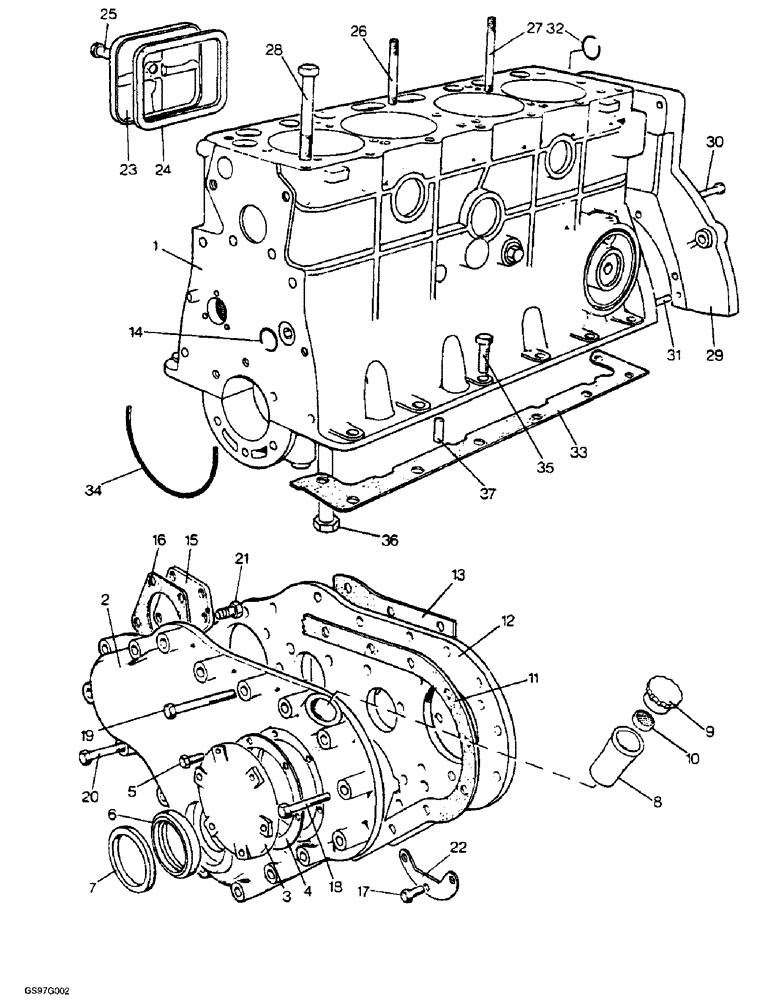

Запчасти Case IH 1210 (2-18) - CYLINDER BLOCK AND COVERS (02) - ENGINE

1

K964893

BLOCK

ASSEMBLY cylinder, parts list Figure 2-16

1шт.

K80062

COVER

ASSEMBLY timing, no longer available as an assemby, order components, Includes: Ref. 2 - 10

1шт.

2

K923036

GEAR

COVER timing gear, no longer available (Replaces cover K944347)

1шт.

3

K924397

COVER

PLATE inspection

1шт.

4

1349385C1

GASKET

timing cover (Replaces gasket K924398)

1шт.

5

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces setscrew K602804) Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

6шт.

6

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

oil, 2-1/8 x 2-7/8 x 3/8 inch (Replaces seal K623448)

1шт.

7

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

CAP felt

1шт.

K964748

TUBE

ASSEMBLY includes filler, no longer available as an assembly, order components, Includes: Ref. 8 and 9

1шт.

8

K950287

NECK FILLER

TUBE screw-in filler cap

1шт.

9

K948427

CAP

filler, screw-in type

1шт.

10

K921678

FILTER

SCREEN

1шт.

11

K920794

GASKET

cover to carrier plate

1шт.

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

hex, 5/16 NC x 1-3/8 inch, timing cover to heater pipe

1шт.

12

K940802

CARRIER

PLATE, Simms injection pump

1шт.

12

K946855

CARRIER

PLATE, Bosch injection pump, no longer available

1шт.

13

K206869

GASKET

plate to block (Replaces gasket K902031)

1шт.

14

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

(Replaces O-ring K24556) -210, 70 Duro, .734" ID x .139" Thk

1шт.

15

K915158

PLATE

blanking, steering pump aperture, no longer available

1шт.

16

K915157

GASKET

plate to carrier plate

1шт.

17

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

hex, 5/16 NC x 3/4 inch, grade 8 (Replaces setscrew K602883)

4шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Replaces setscrew K602805) Hex, 5/16"-18 x 1", G5, Full Thd

9шт.

19

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces bolt K600209) Hex, 5/16"-18 x 2", G5

1шт.

20

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, 5/16 NC x 1-1/2 inch (Replaces bolt K600205)

6шт.

21

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

(Replaces setscrew K602802) Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607001)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

21шт.

22

K902036

GASKET

PLATE baffle

1шт.

23

K10029

COVER

tappets

2шт.

24

K10030

GASKET

tappet cover

2шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt K600408) Hex, 3/8"-16 x 2", G5

2шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

fibre, 3/8 inch

2шт.

26

K906538

STUD

cylinder head to block, 1/2 NC x 4-7/8 inch

10шт.

27

K608505

STUD,1/2" x 7/16"

STUD cylinder head to block, 1/2 NC x 5-5/16 inch

2шт.

28

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

hex, cylinder head to block, 1/2 NC x 4-1/4 inch, grade 8

7шт.

29

K903947

SUPPORT

PLATE starter

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Plate to cylinder block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

492-11038

LOCK WASHER,3/8"

plate to cylinder block 3/8"

6шт.

31

K12258

PIN

dowel, plate to cylinder block, 5/16 x 3/4 inch

2шт.

32

K262762

O-RING

plate to cylinder block, 1-13/16 inch ID (Replaces O-ring K623523)

1шт.

33

K902044

GASKET

left-hand, cylinder block to main frame

1шт.

K902045

GASKET

right-hand, cylinder block to main frame

1шт.

34

K902046

SEAL

bearing caps, cylinder block to main frame

2шт.

35

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cylinder block to main frame Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

36

K600467

BOLT

special, cylinder block to main frame, 3/8 NC x 8-3/4 inch

4шт.

36

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Cylinder block to main frame Hex, 3/8"-16 x 1 3/4", G5

1шт.

36

K608209

STUD

cylinder block to main frame, 3/8 NC x 2-1/4 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

Cylinder block to main frame 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

cylinder block to main frame 3/8"

1шт.

37

K621834

PIN

dowel, cylinder block to main frame, 7/16 x 1-1/8 inch

2шт.
