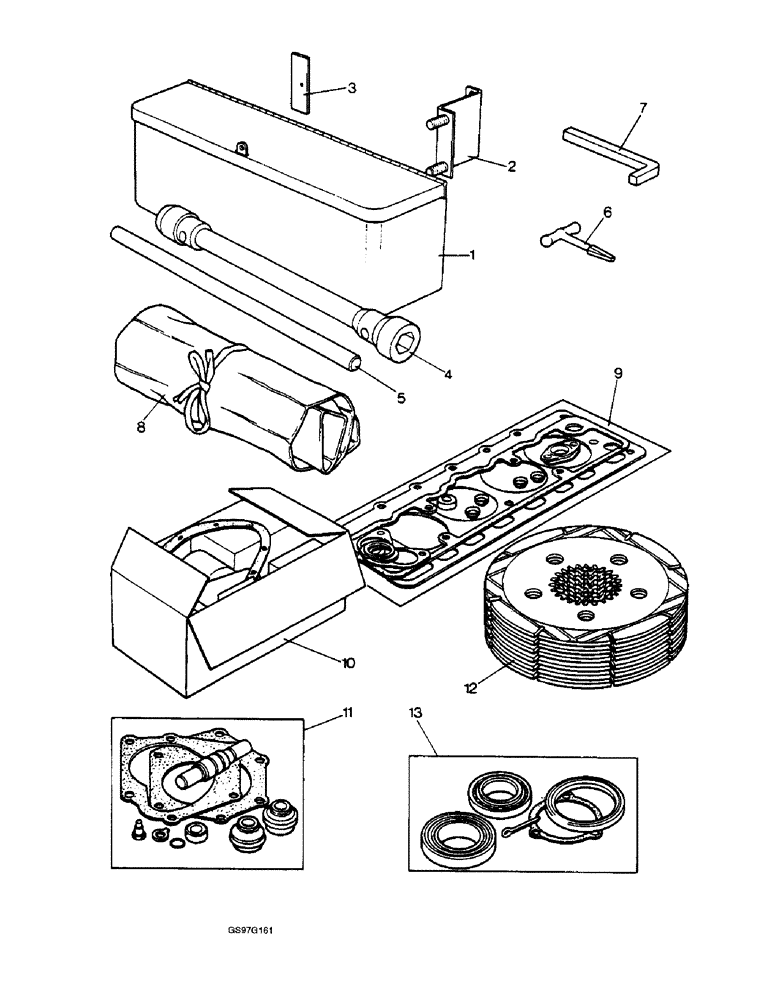

Запчасти Case IH 1210 (9-112) - TOOLBOX AND TOOLS (09) - CHASSIS/ATTACHMENTS

1

K955806

COMPLETE TOOL BOX

TOOLBOX service, used with 1210, 1210G, 1210Sk, 1212, 1212G and 1212Sk tractors (Replaces toolbox K919573)

1шт.

1

K952937

SUPPORT

TOOLBOX service, used with 1210Q and 1212Q tractors, no longer available

1шт.

2

K919538

BRACKET

toolbox, used with 1210, 1210G, 1212 and 1212G tractors, no longer available

2шт.

2

K953888

BRACKET

toolbox, used with 1210, 1210G, 1210Sk, 1212, 1212G and 1212Sk tractors, no longer available

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Toolbox to cab floor, 3/8 NC x 3/4 inch Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

K19472

WASHER

flat, toolbox to cab floor, 3/8 inch, used with 1210, 1210G, 1210Sk, 1212, 1212G and 1212Sk tractors

2шт.

492-11038

LOCK WASHER,3/8"

brackets to toolbox, used with 1210, 1210G, 1210Sk, 1212, 1212G and 1212Sk tractors (Replaces washer K19482) 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

Brackets to toolbox, used with 1210, 1210G, 1210Sk, 1212, 1212G and 1212Sk tractors (Replaces nut K607045) 3/8"-16, G5

4шт.

3

K952939

MOUNTING PARTS

PAD toolbox to fender, used with 1210Q and 1212Q tractors, no longer available

1шт.

K602736

SCREW

set, toolbox to fender, 1/4 NC x 7/8 inch, used with 1210Q and 1212Q tractors

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Toolbox to fender, used with 1210Q and 1212Q tractors (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

Toolbox to fender, Used with 1210Q and 1212Q tractors (Replaces nut K607043) 1/4"-20, G5

2шт.

4

K946622

KEY

WRENCH socket, double ended, for wheel nuts, 1-5/16 x 1 inch AF

1шт.

K200303

BRACE

WRENCH Kramer wheels, for wheel nuts, 27 mm AF, no longer available

1шт.

5

K948095

CLEVIS PIN

BAR for wheel nuts

1шт.

K964971

KEY

AND WRENCH ASSEMBLY bonnet, no longer available, Includes: Ref. 6 - 8, Wallet, Spanner's, Bar, Screwdriver's, and Pliers

1шт.

6

K946448

GRIP

KEY bonnet latch

1шт.

7

K39426

OPEN END WRENCH

transmission filler plug

1шт.

8

K918595

TOOL

KIT

1шт.

K922741

tool, no longer available

1шт.

K906963

SCREW

PEG engine timing

1шт.

K627607

1-1/8 x 15/16 inch AF

1шт.

K627603

TOOL

SPANNER 3/4 x 5/8 inch AF

1шт.

K627604

TOOL

SPANNER 9/16 x 1/2 inch AF

1шт.

K627608

TOOL

SPANNER 7/16 x 5/16 inch AF

1шт.

K627609

box, 15/16 x 3/4 inch AF

1шт.

K627610

TOOL

SPANNER box, 1/2 x 9/16 inch AF

1шт.

K19806

BAR

lever, 5/16 x 6 inch, no longer available

1шт.

K922744

SCREW

DRIVER reversible, no longer available

1шт.

K19803

tool, no longer available

1шт.

K922743

TOOL

PLIERS insulated, 7 inch, no longer available

1шт.

K964760

KIT

engine gasket, no longer available as a kit, order components, service parts, Includes: Ref. 9 and Gasket's

1шт.

9

K262752

GASKET KIT

decarbonizing (Replaces gasket K964883), service parts

1шт.

K262765

GASKET KIT

cylinder block (Replaces gasket K965803), service parts

1шт.

10

K963477

KIT

first service, tractors with internal hydraulic filter, parts, Serial Range: -11152576

1шт.

10

K965005

KIT

first service, tractors with external hydraulic vilter, parts, Start Serial: 11152576

1шт.

11

K965848

PACKAGE, REPAIR

KIT water pump repair, with impellers (Replaces kits K962156 and K964490), service parts

1шт.

12

K945754

DISC,185.42mm ID x 224.03mm OD x 4.9mm Thk

KIT middle disc, Hydra-Shift, set of six (Replaces kit K963646), service parts

1шт.

12

K945755

DISC

KIT intermediate disc, Hydra-Shift, service parts

1шт.

13

A27130

OIL SEAL

KIT front hub bearing and seal (Replaces kit K962986), service parts

1шт.
