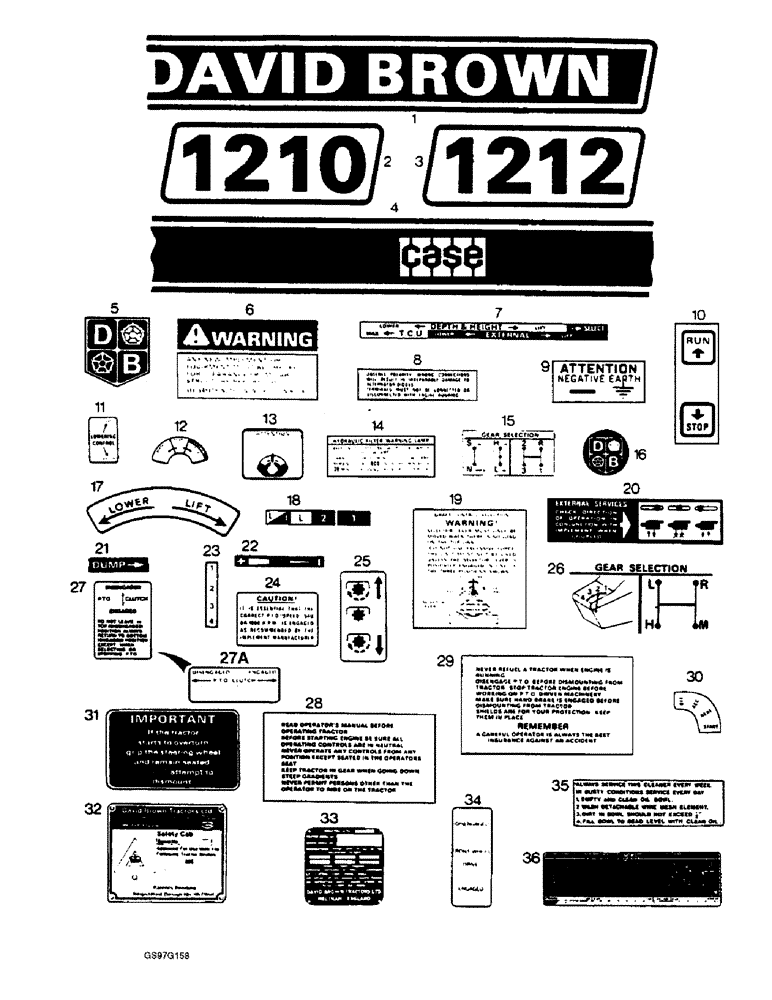

Запчасти Case IH 1210 (9-106) - DECALS, 1210Q, 1210Q 4WD, 1210SK, 1210SK 4WD, 1212Q AND 1212SK TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

K949210

DECAL

KIT bonnet, 1210Q, 1210Q four-wheel drive, 1210Sk and 1210Sk four-wheel drive tractors, no longer available as a kit, order components, Includes: Ref. 1 - 4 and Decal

1шт.

K949211

DECAL

KIT bonnet, 1212Q and 1212Sk tractors, no longer available as a kit, order decals k947729, K947727, K260300 and K260299, Includes: Ref. 1 - 4 and Decal

1шт.

1

K260300

DECAL

David Brown, right-hand (Replaces decal K947724)

1шт.

K260299

DECAL

David Brown, left-hand, also includes Case decal (Replaces decal K947723)

1шт.

2

K952979

DECAL

1210, right-hand, 1210Q, 1210Q four-wheel drive, 1210Sk and 1210Sk four-wheel drive tractors (Replaces decal K947728)

1шт.

K952980

DECAL

1210, left-hand, 1210Q, 1210Q four-wheel drive, 1210Sk and 1210Sk four-wheel drive tractors (Replaces decal K947726)

1шт.

3

K947729

DECAL

1212, right-hand, used with 1212Q and 1212Sk tractors, no longer available

1шт.

K947727

DECAL

1212, left-hand, used with 1212Q and 1212Sk tractors, no longer available

1шт.

4

K949151

DECAL

Case, right-hand, no longer available, order decal K260300

1шт.

K949150

DECAL

Case, left-hand, no longer available, order decal K260299

1шт.

K954725

PRODUCT GRAPHIC

DECAL David Brown, Sekura cab, no longer available

1шт.

5

K951132

DECAL

DB motif, bonnet nose, no longer available

1шт.

6

K952971

DECAL

implement warning, no longer available

1шт.

7

K952539

PRODUCT GRAPHIC

DECAL quadrant, no longer available

1шт.

8

K947548

DECAL

alternator

1шт.

9

K917425

PRODUCT GRAPHIC

DECAL negative earth

1шт.

10

K952670

PRODUCT GRAPHIC

DECAL engine stop control, no longer available

1шт.

11

K917242

DECAL

lowering control

1шт.

12

K915179

DECAL

selector panel

1шт.

13

K915177

PLATE

DECAL hydraulic lift control

1шт.

14

K912368

DECAL filter warning lamp, no longer available, Serial Range: -11152617

1шт.

15

K952588

DECAL

gear positions, synchromesh, 1210Q, 1210Q four-wheel drive, 1210Sk and 1210Sk four-wheel drive tractors, no longer available

1шт.

16

K952168

DECAL

steering wheel hub

1шт.

17

K917237

DECAL

lift/lower

1шт.

18

K952541

DECAL

three-way valve positions

1шт.

19

K940361

PRODUCT GRAPHIC

DECAL selective sensing unit

1шт.

20

K952450

DECAL

live take-off valve lever, no longer available

1шт.

21

K952542

DECAL

dump valve lever

1шт.

22

K952699

SEALING STRIP

DECAL hand throttle control, no longer available

1шт.

23

K943368

DECAL

Hydra-Shift lever positions, 1212Q and 1212Sk tractors

1шт.

24

K949760

DECAL

multi-speed PTO, warning note, no longer available

1шт.

25

K954771

DECAL

PTO unit (Replaces decal K952560)

1шт.

26

K952636

GEAR

DECAL gear positions, Hydra-Shift, 1212Q and 1212Sk tractors

1шт.

27

K950497

DECAL

PTO hand clutch lever, no longer available, order decal 321-6370 below

1шт.

27a

321-6370

DECAL

PTO hand clutch lever

1шт.

28

K952685

DECAL

operator warning, left-hand

1шт.

29

K952686

DECAL

operator warning, right-hand

1шт.

30

K953665

DECAL

ignition switch

1шт.

31

K953599

PRODUCT GRAPHIC

DECAL overturning warning (Replaces decal K774910)

1шт.

32

K952482

PLATE type approval, used with 1210Q, 1210Sk, 1212Q and 1212Sk tractors, no longer available

1шт.

32

K952484

PLATE type approval, used with 1210Q and 1210Sk four-wheel drive tractors, no longer available

1шт.

33

K954684

PLATE

lubrication instruction (Replaces plate K913300)

1шт.

151-526

RIVET,Pop, 1/8" x .337"

pop, 1/8 x 9/32 inch (Replaces rivet K24090)

4шт.

34

K953210

DECAL

four-wheel drive engagement, used with 1210Q and 1210Sk four-wheel drive tractors

1шт.

35

K917151

PRODUCT GRAPHIC

DECAL air cleaner, no longer available

1шт.

36

K952565

INDICATOR

CHART mph, 10/49 reductions, used with 1210Q, 1210Sk, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors, no longer available

1шт.

36

K952569

DECAL

CHART mph, 10/49 reductions, used with 1212Q and 1212Sk tractors

1шт.
