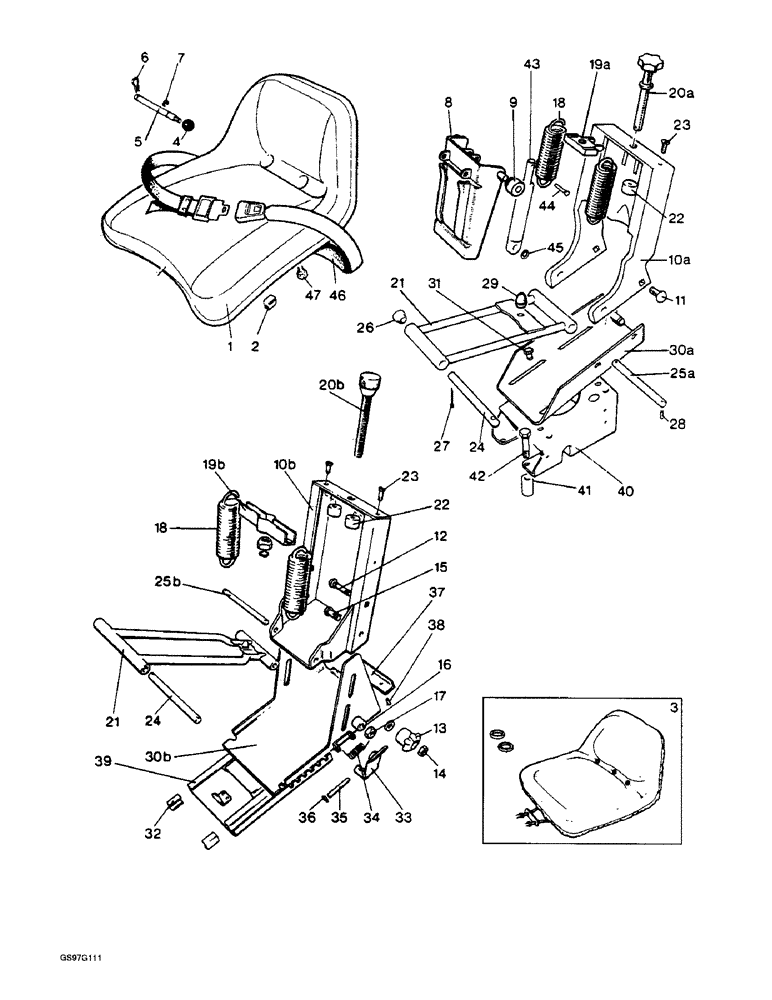

Запчасти Case IH 1210 (9-086) - SUPER COMFORT SUSPENSION SEAT, 1210, 1210G, 1210 FOUR-WHEEL DRIVE, 1212 AND 1212G TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K947414

SEAT

ASSEMBLY pan, cushion and cover, Includes: Ref. 2 - 3, String, Ring, and Anchor

1шт.

2

K963419

CATCH

plastic, no longer available

1шт.

3

K964819

SEAT COVER

cushion

1шт.

827368C1

CLIP

cover (Replaces clip K964809)

11шт.

K963422

SEAT COVER

STRING draw, cover, order cover K964819, Ref. 3

1шт.

K963423

RING

rubber, no longer available

2шт.

K963424

STRAP

ANCHOR drawstring

1шт.

K947401

SUSPENSION

ASSEMBLY seat, 80 kg, with seat belt, used with 1210 and 1212 tractors, no longer available, Includes: Ref. 4 - 45

1шт.

K950589

SEAT

SUSPENSION ASSEMBLY 60 kg, without seat belt, used with 1210, 1210 four-wheel drive and 1212 tractors (Replaces suspension assembly K947402), Includes: Ref. 4 - 45

1шт.

K947551

SEAT

SUSPENSION ASSEMBLY 60 kg, used with 1210G and 1212G tractors, no longer available, Includes: Ref. 4 - 45

1шт.

4

K965123

PIN

KNOB seat belt locking pin, used with 1210 and 1212 tractors (Replaces knob K963425)

1шт.

100-3321

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, #X21, .185" Dia, E-Type

1шт.

5

K963611

PIN

locking, seat belt, used with 1210 and 1212 tractors

1шт.

6

K38632

SPRING

CLIP locking pin, used with 1210 and 1212 tractors

1шт.

7

A22356

CIRCLIP,#X21, .185" Dia, E-Type

7/32 inch, used with 1210 and 1212 tractors

1шт.

8

K963610

SUPPORT

CARRIER single-lug damper mounting

1шт.

8

K964786

SUPPORT

CARRIER double-lug damper mounting, used with 1210, 1210 four-wheel drive and 1212 tractors, no longer available

1шт.

9

K260659

ROLLER

nylon (Replaces roller K962432)

2шт.

10

K963457

SUPPORT

FRAME spring, used with 1210G and 1212G tractors, not shown, no longer available

1шт.

10a

K964784

SPRING

FRAME without seat belt, used with 1210, 1210 four-wheel drive and 1212 tractors, no longer available

1шт.

10b

K964816

SPRING

FRAME with seat belt, used with 1210 and 1212 tractors

1шт.

11

905423R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 3.6

coach, 10 mm x 1 inch, spring frame to carrier support, 1210, 1210 four-wheel drive and 1212 tractors (Replaces bolt K963470)

2шт.

492-11038

LOCK WASHER,3/8"

spring frame to carrier support, used with 1210, 1210 four-wheel drive and 1212 tractors 3/8"

2шт.

K962493

NUT

10 mm, spring frame to carrier support, used with 1210, 1210 four-wheel drive and 1212 tractors

2шт.

12

K964802

SCREW

spring frame to carrier support, 1210 and 1212 tractors, no longer available

2шт.

K963468

WASHER

spring frame to carrier support, 1210 and 1212 tractors, no longer available

2шт.

13

K964801

KNOB

seat height adjustment, spring frame to carrier support, used with 1210 and 1212 tractors, no longer available

2шт.

14

K964781

NUT

spring frame to carrier support, 1210 and 1212 tractors, no longer available

2шт.

15

K964792

SCREW

spring frame to carrier support, 1210 and 1212 tractors, no longer available

2шт.

16

K963454

BUSHING

SPACER spring frame to carrier support, 1210 and 1212 tractors, no longer available

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Spring frame to carrier support, 1210 and 1212 tractors (Replaces washer K964793) M8 x 16 x 1.6

2шт.

K964800

SPRING

WASHER lock, spring frame to carrier support, used with 1210 and 1212 tractors, no longer available

2шт.

17

825-1408

NUT,M8, Cl 8

Spring frame to carrier support, 1210 and 1212 tractors (Replaces nut K964782) M8, Cl 8

2шт.

18

827361C1

SPRING

tension, 60 kg (Replaces spring K962437)

2шт.

18

K964944

SPRING

tension, 80 kg, with seat belt, 1210 and 1212 tractors

2шт.

19a

3134838R1

HOLDER

BRACKET spring tensioner, used with 1210, 1210 four-wheel drive and 1212 tractors (Replaces bracket K962442)

1шт.

19b

K963428

SPRING

BRACKET spring tensioner, used with 1210G and 1212G tractors, no longer available

1шт.

20a

K962436

SCREW

tension, used with 1210, 1210 four-wheel drive and 1212 tractors, no longer available

1шт.

K963429

PIN

CLIP tension screw, used with 1210, 1210 four-wheel drive and 1212 tractors, no longer available

1шт.

K626686

WASHER

tension screw, used with 1210, 1210 four-wheel drive and 1212 tractors (Replaces washer K19474)

1шт.

20b

K963465

SCREW

tension, used with 1210G and 1212G tractors, no longer available

1шт.

K963429

PIN

CLIP tension screw, used with 1210G and 1212G tractors

1шт.

K963460

NUT

tension screw, used with 1210G and 1212G tractors, no longer available

1шт.

21

K964798

BEAM

suspension

1шт.

22

826879C1

BUMPER

STOP spring frame (Replaces stop K963471)

2шт.

23

3404081R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 22

stop (Replaces screw K963472)

2шт.

24

K963452

PIN

locating, no longer available

1шт.

24

K962426

PIN

locating, with lug, used with 1210, 1210 four-wheel drive and 1212 tractors

1шт.

25a

3134840R1

PIN

pivot, used with 1210, 1210 four-wheel drive and 1212 tractors (Replaces pin K962441)

1шт.

25b

K963469

PIN

pivot, used with 1210G and 1212G tractors, no longer available

1шт.

26

3134834R1

BUSHING

locating pin (Replaces bushing K962341)

4шт.

27

132-68

PIN

cotter, 5/32 x 7/8 inch (Replaces pin K19540)

1шт.

28

934898R1

LOCK PIN,M4 x 24, Slotted

pivot pin, two used with 1210, 1210 four-wheel drive and 1212 tractors; three used with 1210G and 1212G tractors (Replaces pin K962495)

1шт.

29

3134835R1

BUMPER

STOP rubber (Replaces stop K962434)

1шт.

30a

K962427

BRACKET

SUPPORT sliding, double-lug damper mounting, used with 1210, 1210 four-wheel drive and 1212 tractors

1шт.

K964791

BRACKET

SUPPORT sliding, single-lug damper mounting, used with 1210, 1210 four-wheel drive and 1212 tractors

1шт.

30b

K963456

SUPPORT

sliding, used with 1210G and 1212G tractors, no longer available

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Support to support bracket, used with 1210, 1210 four-wheel drive and 1212 tractors (Replaces setscrew K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

K19472

WASHER

flat, support to support bracket, 3/8 inch, used with 1210, 1210 four-wheel drive and 1212 tractors

4шт.

492-11038

LOCK WASHER,3/8"

support to support bracket, used with 1210, 1210 four-wheel drive and 1212 tractors 3/8"

4шт.

32

K964799

BRACKET

U-shaped, baseplate, used with 1210G and 1212G tractors, no longer available

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

U-brackets to sliding support, 3/8 NC x 3/4 inch, used with 1210G and 1212G tractors (Replaces setscrew K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

U-brackets to sliding support, used with 1210G and 1212G tractors (Replaces washer K19482) 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

U-brackets to sliding support, Used with 1210G and 1212G tractors (Replaces nut K607045) 3/8"-16, G5

4шт.

33

K963461

PLATE

TRIGGER sliding support, used with 1210G and 1212G tractors, no longer available

1шт.

34

K963467

SPRING

sliding support, used with 1210G and 1212G tractors, no longer available

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Sliding support, Used with 1210G and 1212G tractors (Replaces washer K964793) M8 x 16 x 1.6

2шт.

35

K963464

PIN

sliding support, used with 1210G and 1212G tractors, no longer available

1шт.

36

K621592

RING, SNAP

sliding support, used with 1210G and 1212G tractors

2шт.

37

K963458

PLATE

end, sliding support, used with 1210G and 1212G tractors, no longer available

1шт.

38

K964789

SCREW

end plate to baseplate, used with 1210G and 1212G tractors, no longer available

2шт.

K964787

WASHER

end plate to baseplate, used with 1210G and 1212G tractors, no longer available

2шт.

39

K963455

BASE

PLATE base, used with 1210G and 1212G tractors, no longer available

1шт.

40

K919599

SEAT SUPPORT

BRACKET support, used with 1210, 1210 four-wheel drive and 1212 tractors

1шт.

41

K627049

BUSHING

SPACER distance, used with 1210, 1210G and 1212G tractors

4шт.

42

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

used with 1210, 1210G and 1212G tractors (Replaces bolt K600562) Hex, 3/8"-16 x 3", G5

4шт.

42

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Used with 1210 four-wheel drive and 1212 tractors (Replaces setscrew K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

353-2

PLUG,Cap, .240" OD

plastic, 1/4 inch (Replaces plug K628088)

3шт.

43

825214C1

DAMPER

hydraulic, early seats, used with 1210, 1210 four-wheel drive and 1212 tractors (Replaces damper K963430)

1шт.

43

K964817

DAMPER

hydraulic, later seats, used with 1210, 1210 four-wheel drive and 1212 tractors

1шт.

44

827364C1

RIVET,Flat Hd, M4 x 25

PIN early-type damper, used with 1210, 1210 four-wheel drive and 1212 tractors (Replaces pin K964818)

1шт.

44

K962433

PIN

later-type damper, used with 1210, 1210 four-wheel drive and 1212 tractors

1шт.

45

K962494

RING, SNAP

used with 1210, 1210 four-wheel drive and 1212 tractors

2шт.

K159600

BELT

ASSEMBLY seat, used with 1210, 1210 four-wheel drive and 1212 tractors (Replaces seatbelt assembly K930824), Includes: Ref. 46 - 47 and Washer

1шт.

46

NSS

NOT SOLD SEPARAT

BELT seat, order belt assembly K159600

1шт.

47

K945348

BOLT

special, 5/16 NF, no longer available

1шт.

K945349

WASHER

special, 9/16 inch, no longer available

1шт.
