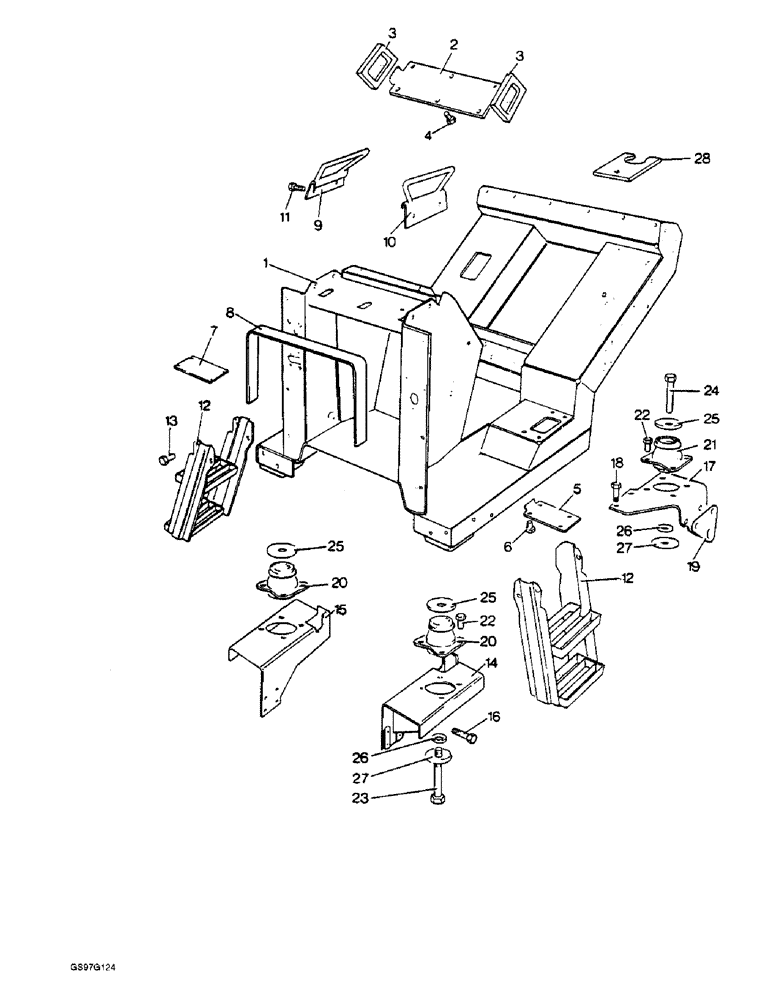

Запчасти Case IH 1210 (9-080) - CAB FLOOR AND MOUNTING, 1210Q, 1210Q FOUR-WHEEL DRIVE AND 1212Q TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

1

K955436

CAB

FLOOR tractor serial number 11153600 and after, no longer available

2шт.

1

K949333

CAB

FLOOR tractor serial numbers prior to 11153600, no longer available

1шт.

K627710

PLUG

rubber, 3/4 inch ID

1шт.

K627738

GROMMET

7/8 inch ID, no longer available

2шт.

K627743

PLUG

GROMMET 11/32 inch ID

2шт.

K627744

GROMMET

11/32 inch ID, no longer available

2шт.

K627742

GROMMET

15/32 inch ID

4шт.

K627740

GROMMET

1-1/32 inch ID, no longer available

1шт.

K627748

GROMMET

7/8 inch ID, no longer available

1шт.

353-10

PLUG,Cap, .547" OD

plastic, 1/2 inch ID (Replaces plug K628092)

1шт.

2

K950492

PLATE

blanking, cross beam aperture, no longer available

1шт.

3

K950603

PAD

sealing, plate to cab floor, no longer available

2шт.

4

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Plate to cab floor (Replaces setscrew K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

492-11038

LOCK WASHER,3/8"

plate to cab floor (Replaces washer K19482) 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

Plate to cab floor (Replaces nut K607045) 3/8"-16, G5

6шт.

5

K950382

COVER

PLATE shift lever aperture, no longer available

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Plate to cab floor Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Plate to cab floor (Replaces washer K626341) 1/4"

4шт.

K627731

GROMMET

blind, plate to cab floor, 1-3/4 inch, used with 1212Q tractors, no longer available

1шт.

K627732

GROMMET

split, plate to cab floor, 1-3/4 inch, used with 1210Q and 1210Q tractors, no longer available

1шт.

7

K952246

COVER

PLATE used with 1212Q tractors, no longer available

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, used with 1212Q tractors (Replaces screw K614944)

4шт.

8

K953103

STRIP

rubber, bonnet seating, no longer available

1шт.

9

K950983

HANDLE

grab, right-hand, no longer available

1шт.

10

K950984

HANDLE

grab, left-hand, no longer available

1шт.

11

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, 5/16 NC x 3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

425-104

NUT,1/4"-20, Cl 5

hex, 5/16 inch NC (Replaces nut K607044)

4шт.

12

K955180

STEP

left-hand, tractor serial number 11153600 and after, no longer available

1шт.

12

K955179

STEP

right-hand, tractor serial number 11153600 and after, no longer available

1шт.

12

K954660

STEP

tractor serial numbers 11156469 to 11153600, no longer available

2шт.

12

K950225

STEP

- tractor serial numbers prior to 11156469, no longer available

2шт.

13

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, steps to cab floor, 5/16 NC x 3/4 inch, tractor serial number 11153600 and after

8шт.

13

K602846

SCREW,5/16" - 18 x 5/8", Gr S

set, steps to cab floor, 5/16 NC x 5/8 inch, seven used with tractor serial numbers prior to 11153600, one used with tractor serial numbers, Serial Range: prior-11156469

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, steps to cab floor, 5/16 NC x 1 inch, tractor serial numbers 11156469 to 11153600 (Replaces screw K602847)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , steps to cab floor 5/16"

8шт.

K626682

WASHER

flat, 5/16 inch, tractor serial number 11153600 and after

4шт.

B90396

HARDWARE

NUT lock, 5/16 inch NC, tractor serial number 11156469 and after

1шт.

14

K949483

MOUNTING PARTS

BRACKET left-hand front, no longer available

1шт.

15

K949479

MOUNTING PARTS

BRACKET right-hand front, no longer available

1шт.

K950378

BUSHING

SPACER mounting bracket, no longer available

2шт.

16

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

hex, 5/8 NC x 1-5/8 inch, six used with 1210Q and 1212Q tractors, eight used with 1210Q four-wheel drive tractors (Replaces bolt K603275)

1шт.

K601331

BOLT

hex, 5/8 NC x 5-1/4 inch, used with 1210Q and 1212Q tractors

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

17

K950377

MOUNTING PARTS

BRACKET left-hand rear, used with 1210Q and 1212Q tractors, no longer available

1шт.

17

K950376

MOUNTING PARTS

BRACKET right-hand rear, used with 1210Q and 1212Q tractors, no longer available

1шт.

17

K951613

MOUNTING PARTS

BRACKET left-hand rear, used with 1210Q four-wheel drive tractors, no longer available

1шт.

17

K951610

MOUNTING PARTS

BRACKET right-hand rear, used with 1210Q four-wheel drive tractors, no longer available

1шт.

18

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

hex, brackets to axle, 5/8 NC x 1-5/8 inch (Replaces bolt K603275)

8шт.

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

(Replaces bolt K600889) Hex, 1/2"-13 x 3 3/4", G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , (Replaces washer K626345) 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

8шт.

19

K952704

SHIM

1/16 inch, no longer available

2шт.

20

K949839

BUMPER

MOUNTING rubber, front, no longer available

2шт.

21

K949838

DAMPER

MOUNTING rubber, rear

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, rubber mountings to brackets, 3/8 NC x 1-1/4 inch (Replaces screw K602936)

16шт.

K19472

WASHER

flat, rubber mountings to brackets, 3/8 inch

16шт.

492-11038

LOCK WASHER,3/8"

rubber mountings to brackets (Replaces washer K19482) 3/8"

16шт.

K11522

WASHER

lock, earth lead, rubber mountings to brackets, 3/8 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

Rubber mountings to brackets 3/8"-16, G5

16шт.

23

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

hex, front, 5/8 NC x 3-3/4 inch (Replaces bolt K601324)

2шт.

24

K601322

BOLT

hex, rear, 5/8 NC x 4 inch

2шт.

25

K949668

WASHER

grooved, 5/8 x 3-5/16 inch

2шт.

26

K626930

WASHER

special, 5/8 x 1-1/8 inch

4шт.

27

K955087

WASHER

special, 5/8 x 3-1/2 inch (Replaces washer K626931)

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

4шт.

K626855

WASHER

flat, 5/8 inch

4шт.

K955524

PLATE

NUT special, 5/8 inch NC, tractor serial number 11153600 and after, no longer available

2шт.

425-1010

NUT,5/8"-11, G5

Tractor S/N prior to 11153600 (Replaces nut K607048) 5/8"-11, G5

2шт.

28

K200021

BRACKET

top link stowage, tractor serial number 11153600 and after, bracket to rear crossmember, no longer available

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Tractor S/N 11153600 and after, bracket to rear crossmember (Replaces bolt K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

tractor serial number 11153600 and after, bracket to rear crossmember (Replaces washer K19482) 3/8"

1шт.

K200022

NUT

special, 3/8 inch NC, tractor serial number 11153600 and after, bracket to rear crossmember, no longer available

1шт.
