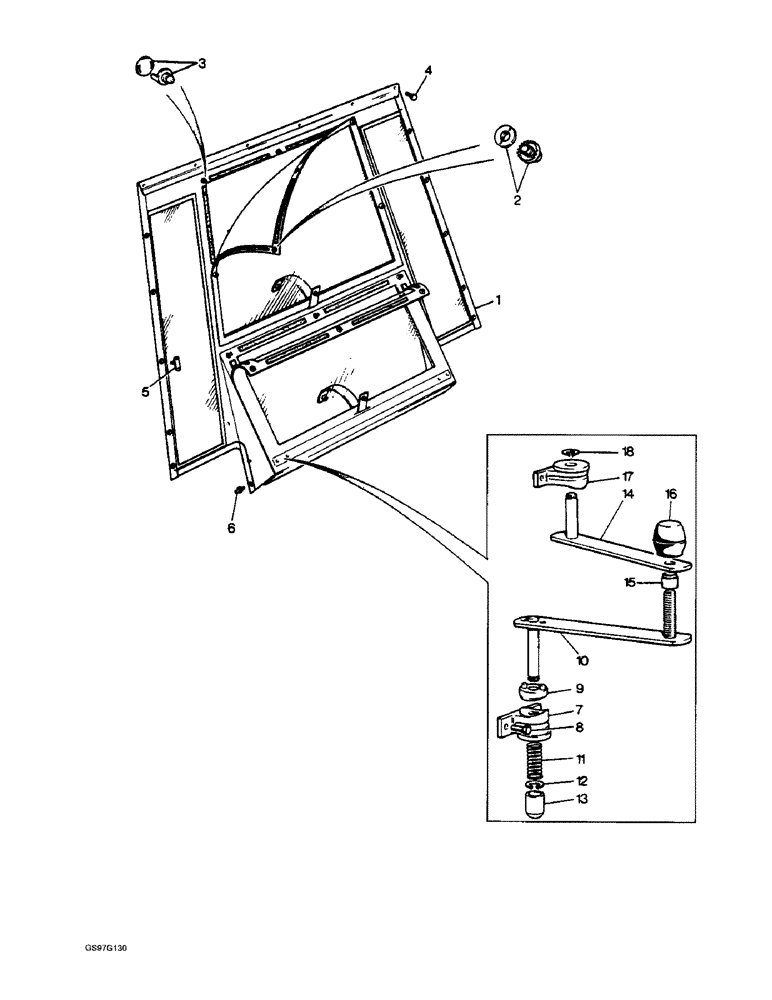

Запчасти Case IH 1210 (9-064) - CAB REAR PANEL, FLEXIBLE, 1210Q AND 1212Q TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

K932715

PANEL

ASSEMBLY flexible, rear, tractor serial number 11158600 and after, no longer available, Includes: Ref. 1 - 6, Washer's, Nut's, and Plug

1шт.

1

K951700

PANEL

ASSEMBLY flexible, rear, tractor serial numbers prior to 11158600, no longer available, Includes: Ref. 2 and 3

1шт.

1

K955717

PANEL

ASSEMBLY flexible, rear, used with panel assembly K932715, no longer available, Includes: Ref. 2 and 3

1шт.

2

K624589

BUTTON

push, female, twenty-two used with panel assembly K951700, twenty-seven used with panel assembly K932715, no longer available

1шт.

3

K624593

BUTTON

push, male, no longer available

12шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

set, panel to cab roof, 5/16 NC x 1 inch

6шт.

K626682

WASHER

flat, 5/16 inch, panel to cab roof

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , panel to cab roof 5/16"

6шт.

K607201

NUT

wing, 5/16 inch NC, panel to cab roof, no longer available

6шт.

5

K624588

BUTTON

FASTENER push button, male, riveted, rear panel to cab side panels, no longer available

8шт.

6

K624595

BUTTON

FASTENER push button, male, threaded, rear panel to cab side panels, four used with panel assembly K951700, nine used with panel assembly K932715, no longer available

1шт.

K626946

WASHER

flat, rear panel to cab side panels, 3/16 inch, two used with panel assembly K951700, seven used with panel assembly K932715

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Rear panel to cab side panels #10

2шт.

K11109

NUT

2 BA, rear panel to cab side panels

2шт.

K952497

NUT

special, 2 BA, rear panel to cab side panels, two used with panel assembly K951700, seven used with panel assembly K932715, no longer available

1шт.

K627781

PLUG

plastic, rear cross beam holes, 1/4 inch, used with panel assembly K932715, no longer available (Replaces plug K627713)

4шт.

7

K952200

HINGE

BLOCK tractor serial numbers prior to 11158600, no longer available

2шт.

8

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, blocks to cab, 1/4 NC x 5/8 inch, tractor serial numbers prior to 11158600 (Replaces screw K602733)

4шт.

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, , Blocks to cab, tractor S/N's prior to 11158600 (Replaces washer K626552) Ext Tooth, 1/4"

4шт.

9

K952240

CAM

hinge, tractor serial numbers prior to 11158600, no longer available

2шт.

10

K952239

HINGE

lower, tractor serial numbers prior to 11158600, no longer available

2шт.

11

K625295

SPRING

hinge, tractor serial numbers prior to 11158600, no longer available

4шт.

K19472

WASHER

flat, 3/8 inch, tractor serial number 11158600 and after

4шт.

12

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, , Tractor S/N's prior to 11158600 #37, .300" Dia, E-Type

2шт.

13

K947518

COVER

springs, tractor serial numbers, Serial Range: prior-11158600

2шт.

14

K952238

HINGE

upper, tractor serial numbers prior to 11158600, no longer available

2шт.

15

K953110

BUSHING

SPACER distance, tractor serial numbers prior to 11158600, no longer available

2шт.

K19472

WASHER

flat, 3/8 inch, tractor serial numbers, Serial Range: prior-11158600

2шт.

16

K950493

KNOB

hinge

2шт.

17

K952200

HINGE

BLOCK tractor serial numbers, Serial Range: prior-11158600

2шт.

K19472

WASHER

flat, 3/8 inch, tractor serial numbers, Serial Range: prior-11158600

2шт.

18

K621587

RING, SNAP

3/8 inch ID, tractor serial numbers, Serial Range: prior-11158600

2шт.
