Запчасти Case IH 1210 (9-056) - DOORS FOR DB WEATHERFRAME, 1210 AND 1212 TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

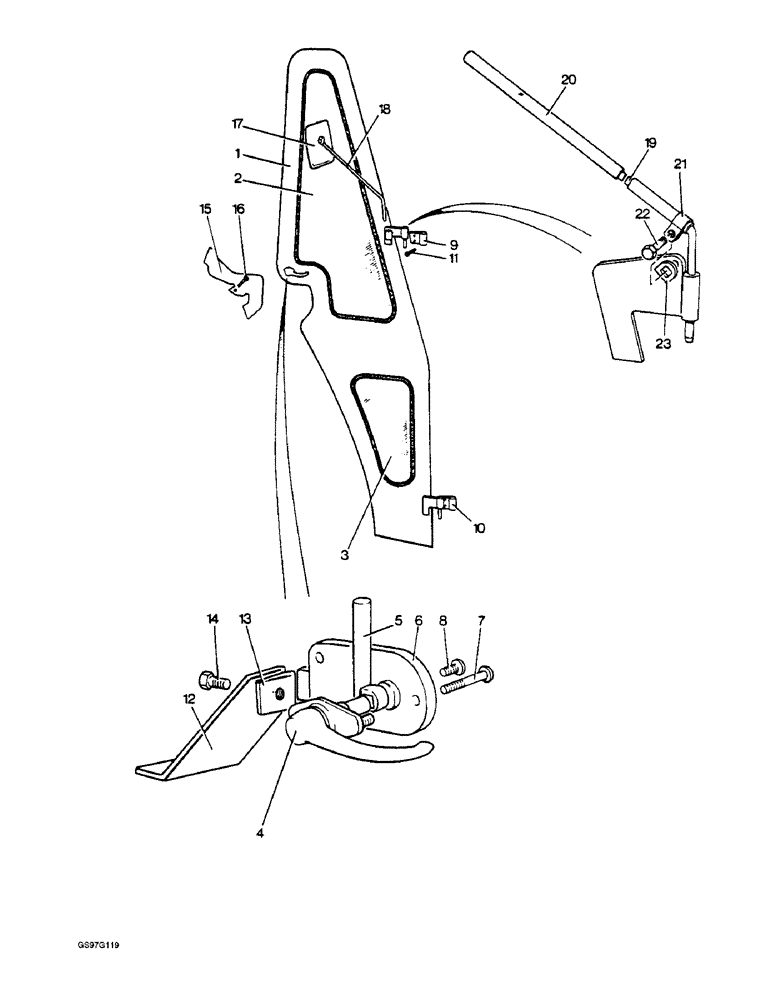

Схема запчастей Case IH 1210 - (9-056) - DOORS FOR DB WEATHERFRAME, 1210 AND 1212 TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS
17
18
14
5
4
6
1
3
20
23
7
15
10
8
13
11
12
16
22
19
9
21
2

Артикул

Название

Примечание

Количество

K773092

DOOR

right-hand, complete, no longer available

1шт.

K773096

DOOR

left-hand, complete, no longer available

1шт.

1

K722801

DOOR right-hand

1шт.

1

K772802

DOOR

left-hand, no longer available

1шт.

2

K772676

WINDOW

door top, no longer available

1шт.

3

K772675

WINDOW

door bottom, no longer available

1шт.

4

K773205

DOOR

HANDLE outer, right-hand door, no longer available

1шт.

K773206

DOOR

HANDLE outer, left-hand door, no longer available

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Handles to doors #10

4шт.

K11109

NUT

2 BA, Serial Range: handles-doors

4шт.

5

K773240

DOOR

HANDLE inner, no longer available

2шт.

K773243

DOOR

KNOB inner handle, no longer available

2шт.

K773244

RUBBER

BOSS right-hand door, no longer available

1шт.

K774050

BUSHING

BOSS rubber, left-hand door, no longer available

1шт.

6

K773203

DOOR

LATCH right-hand door, no longer available

1шт.

K773204

LATCH

left-hand door, no longer available

1шт.

7

K691954

SCREW

No. 10 NF x 1-1/4 inch, no longer available

6шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

2шт.

8

K692042

SCREW

No. 10 NF x 1/2 inch, no longer available

2шт.

K626310

WASHER

flat, 3/16 inch, no longer available

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

4шт.

9

K773175

HINGE

upper, right-hand door, no longer available

1шт.

10

K773171

HINGE

lower, right-hand door, no longer available

1шт.

K773174

HINGE

upper, left-hand door, no longer available

1шт.

K773170

HINGE

lower, left-hand door, no longer available

1шт.

K774476

HINGE

PIN upper hinge, left-hand door, no longer available

1шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Hinges to bulkhead (Replaces setscrew K602985) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

8шт.

K19472

WASHER

flat, 3/8 inch, Serial Range: hinges-bulkhead

16шт.

492-11038

LOCK WASHER,3/8"

hinges to bulkhead (Replaces washer K19482) 3/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

Hinges to bulkhead (Replaces nut K607045) 3/8"-16, G5

8шт.

12

K772996

PLATE

BRACKET right-hand striker plate, no longer available

1шт.

K772995

PLATE

BRACKET left-hand striker plate, no longer available

1шт.

13

K773071

PLATE

striker, no longer available

2шт.

14

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, 5/16 NC x 3/4 inch, plates to brackets

2шт.

K626682

WASHER

flat, 5/16 inch, Serial Range: plates-brackets

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , plates to brackets (Replaces washer K19481) 5/16"

2шт.

15

K773222

FENDER

EXTENSION right-hand fender, no longer available

1шт.

15

K773225

FENDER

EXTENSION left-hand fender, no longer available

1шт.

16

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

hex, 1/4 NC x 5/8 inch, extensions to fenders, no longer available

2шт.

K626662

WASHER

flat, 1/4 inch, extensions to fenders (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Extensions to fenders 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

extensions to fenders (Replaces nut K607043) 1/4"-20, G5

2шт.

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch, extensions to fenders (Replaces screw K614945)

2шт.

K626310

WASHER

flat, 3/16 inch, extensions to fenders, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Extensions to fenders 1/4"

2шт.

225-14210

NUT,#10-32

Extensions to fenders #10-32

2шт.

17

K773622

CAB

MIRROR driving, no longer available

1шт.

18

K773621

ARM

driving mirror, early cab, no longer available

1шт.

K692039

SCREW

set, 1/4 NC x 3/4 inch, arm to door, early cab, no longer available

1шт.

19

K774188

CAB

ARM driving mirror, no longer available

1шт.

20

K774658

ARM

outer, later cab, no longer available

1шт.

21

K774186

CLIP

later cab, no longer available

1шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch, later cab (Replaces screw K602847)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , later cab (Replaces washer K19481) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, later cab (Replaces nut K607044)

1шт.

23

K775292

PLATE

clamping, later cab, no longer available

1шт.

Выбрано товаров: 56
