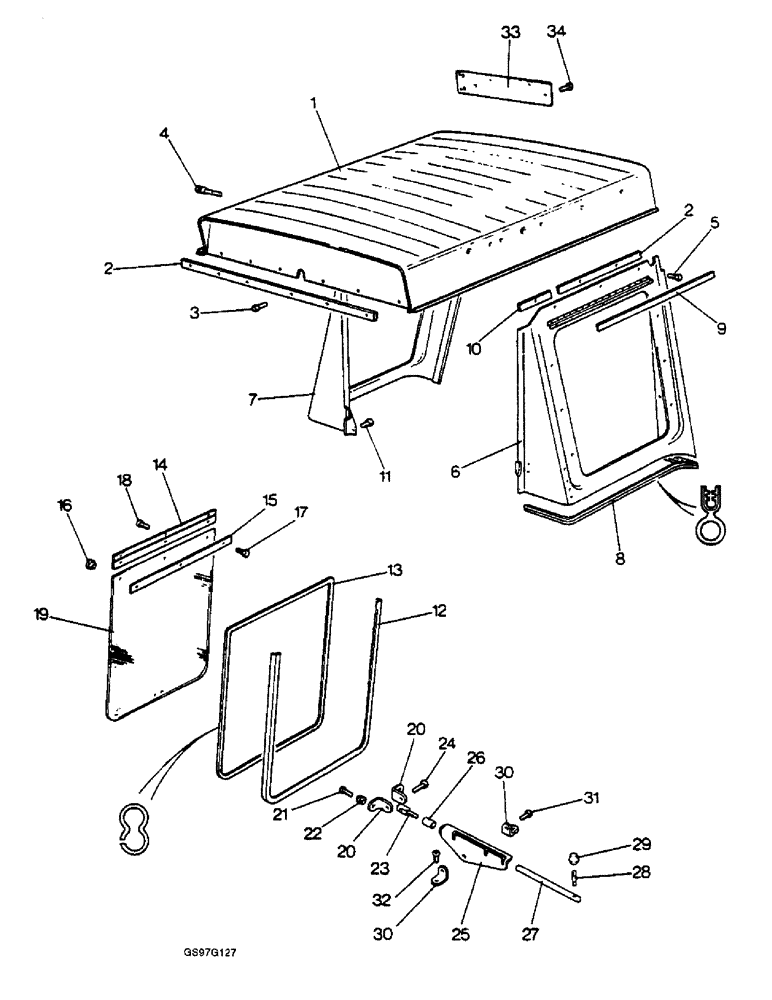

Запчасти Case IH 1210 (9-052) - CAB ROOF AND SIDE PANELS, 1210Q AND 1212Q TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

1

K955188

CAB

ROOF, tractor serial numbers prior to 11158600, no longer available

1шт.

1

K775585

ROOF

cab, tractor serial number 11158600 and after (Replaces roof K952164)

1шт.

2

K692017

RUBBER STRIP

plastic, roof to front frame, 1 x 1/16 inch, order bulk, no longer available

1шт.

3

K603926

SCREW

set, roof to front frame, 1/4 NC x 3/4 inch, eight used with tractor serial numbers prior to 11158600, six used with serial number 11158600 and after

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Roof to front frame (Replaces washer K626341) 1/4"

8шт.

K627745

GROMMET

roof panel, 3/4 inch, tractor serial numbers prior to 11158600, no longer available

4шт.

4

K950477

BOLT

lifting, no longer available

4шт.

K692065

BOLT

INSERT threaded, roof and side panels to upper frame, 1/4 NC, twenty-eight used with serial numbers prior to 11158600, twenty used with serial number 11158600 and after, no longer available

1шт.

5

K603926

SCREW

set, roof and side panels to upper frame, 1/4 NC x 3/4 inch, twenty-six used with serial numbers prior to 11158600, twenty used with serial number 11158600 and after

1шт.

K626662

WASHER

flat, roof and side panels to upper frame, 1/4 inch, twenty-six used with serial numbers prior to 11158600, twenty used with serial number 11158600 and after (Replaces washer K19470)

1шт.

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, , Roof and side panels to upper frame, twenty-six used with serial numbers prior to 11158600, twenty used with S/N 11158600 and after (Replaces washer K626552) Ext Tooth, 1/4"

1шт.

6

K955174

PANEL

side, left-hand, tractor serial number 11158600 and after, no longer available

1шт.

6

K950469

PLATE

PANEL side, left-hand, tractor serial numbers prior to 11158600, no longer available

1шт.

7

K955173

PLATE

PANEL side, right-hand, tractor serial number 11158600 and after, no longer available

1шт.

7

K950470

PANEL

side, right-hand, tractor serial numbers prior to 11158600, no longer available

1шт.

8

K691979

PANEL

STRIP sealing, side panels, order bulk, no longer available

1шт.

9

K692156

STRIP platsic, 1 x 1/16 inch, order bulk, no longer available

1шт.

10

K950219

STRIP

plastic, no longer available

2шт.

11

K602846

SCREW,5/16" - 18 x 5/8", Gr S

set, side panels to fenders, 5/16 NC x 5/8 inch

2шт.

K626682

WASHER

flat, side panels to fenders, 5/16 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , side panels to fenders (Replaces washer K19481) 5/16"

2шт.

12

K955702

PANEL

EDGING, right-hand, tractor serial number 11158600 and after, no longer available

1шт.

13

K955705

SEAL

EXCLUDER draught, panel to opening window, tractor serial number 11158600 and after, no longer available

1шт.

14

K955728

HINGE

right-hand window, tractor serial number 11158600 and after, no longer available

1шт.

15

K955703

STRIP

backing, tractor serial number 11158600 and after, no longer available

1шт.

16

K955706

SLEEVE

BUSHING rubber, tractor serial number 11158600 and after, no longer available

3шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Tractor S/N 11158600 and after (Replaces screw K602735) Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

18

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

set, 1/4 NC x 5/8 inch, tractor serial number 11158600 and after

3шт.

K626662

WASHER

flat, 1/4 inch, tractor serial number 11158600 and after (Replaces washer K19470)

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Tractor S/N 11158600 and after (Replaces washer K626341) 1/4"

3шт.

234-11025

NUT dome, 1/4 inch NC, tractor serial number 11158600 and after (Replaces nut K607251)

3шт.

425-104

NUT,1/4"-20, Cl 5

Tractor S/N 11158600 and after (Replaces nut K607043) 1/4"-20, G5

3шт.

19

K955192

GLASS

window, right-hand side panel, tractor serial number 11158600 and after, no longer available

1шт.

20

K955714

BRACKET

angle, tractor serial number 11158600 and after, no longer available

2шт.

21

K691892

SCREW

hex, 1/4 NC x 1 inch, tractor serial number 11158600 and after, no longer available

2шт.

22

K955707

GROMMET

BUSHING rubber, tractor serial number 11158600 and after, no longer available

2шт.

23

K955713

SCREW

pivot, tractor serial number 11158600 and after, no longer available

1шт.

24

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

machine, pan head slotted, 1/4 NC x 1-1/4 inch, tractor serial number 11158600 and after (Replaces screw K603931)

1шт.

K626662

WASHER

flat, 1/4 inch, tractor serial number 11158600 and after (Replaces washer K19470)

5шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, Tractor S/N 11158600 and after (Replaces nut K607300) 1/4"-20, GB

3шт.

K956195

BOLT

CATCH ASSEMBLY window, tractor serial number 11158600 and after, no longer available, Includes: Ref. 25 - 31, Washer, and Nut

1шт.

25

K955708

BOLT

BARREL window, no longer available

1шт.

26

K955711

BUSHING

nylon, no longer available

1шт.

27

K955712

BOLT

window, no longer available

1шт.

28

K955715

STUD

3/8 - 1/4 NC, no longer available

1шт.

29

K950493

KNOB

window

1шт.

30

K955714

BRACKET

angle

2шт.

31

K603297

SCREW hex, 1/4 NC x 7/8 inch

1шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut K607300) 1/4"-20, GB

1шт.

32

K603926

SCREW

hex, catch to fender, 1/4 NC x 3/4 inch, tractor serial number 11158600 and after

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Catch to fender, tractor S/N 11158600 and after (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

Tractor S/N 11158600 and after (Replaces nut K607043) 1/4"-20, G5

2шт.

33

K952425

PLATE

number, no longer available

1шт.

34

K604093

SCREW

set, 1/4 NC x 1/2 inch, no longer available

2шт.

K627705

GROMMET

lamp lead, 1/2 inch, no longer available

1шт.
