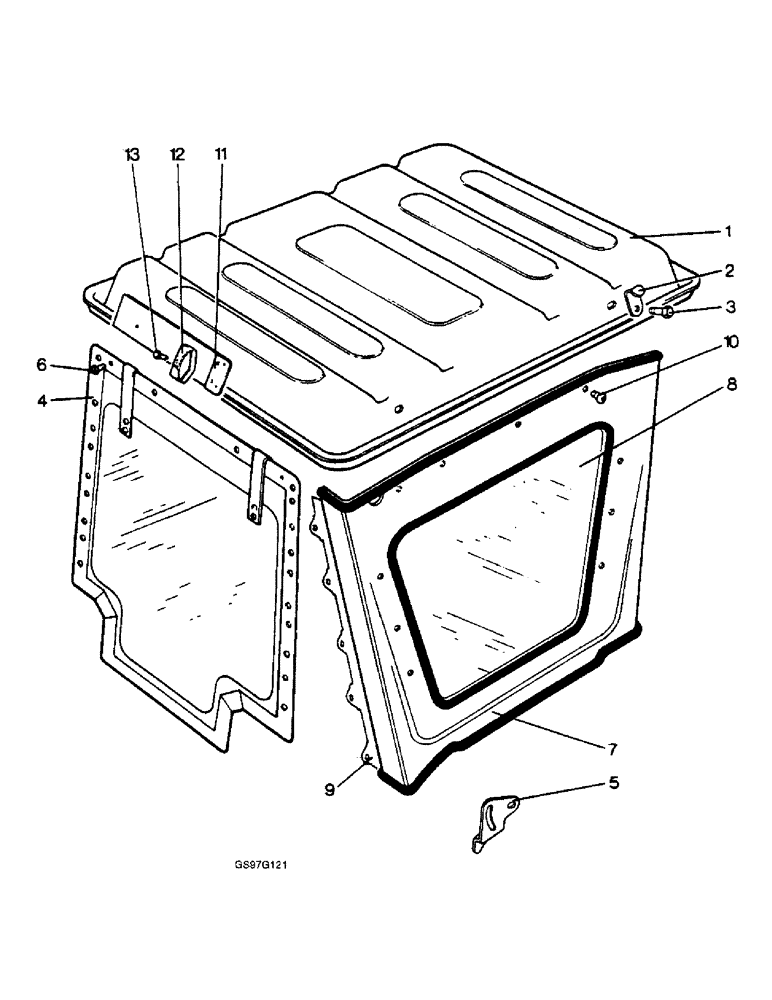

Запчасти Case IH 1210 (9-048) - ROOF AND SIDE PANELS FOR DB WEATHERFRAME, METAL CLAD, 1210 AND 1212 TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

1

K772681

ROOF

ASSEMBLY cab, no longer available as an assembly, order components, Includes: Ref. 2 and 3

1шт.

2

K772319

BRACKET

lifting

4шт.

K691857

WASHER

special

4шт.

K691959

GROMMET

roof

5шт.

K691965

COLLAR

BOSS grommet

3шт.

3

K773277

BOLT

special, roof to frame, 1/2 NC

4шт.

4

K771376

SKIRT

CURTAIN rear, no longer available

1шт.

5

K772960

SKIRT

HOOK curtain, right-hand fender

1шт.

K773202

SKIRT

HOOK curtain, left-hand fender, no longer available

1шт.

6

K691892

SCREW

set, rear curtain to frame, 1/4 NC x 1 inch, no longer available

4шт.

K626662

WASHER

flat, rear curtain to frame, 1/4 inch (Replaces washer K19470)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Rear curtain to frame 1/4"

4шт.

K691893

NUT

wing, rear curtain to frame, no longer available, 1/4 inch NC

4шт.

K773593

ROPE

rear curtain, upper, no longer available

2шт.

K773594

ROPE

rear curtain, lower, no longer available

2шт.

K774036

ATTACHMENT

HOOP rubber, rear curtain, no longer available

2шт.

K773069

PANEL

ASSEMBLY side, right-hand, complete, no longer available, Includes: Ref. 7 - 9

1шт.

K773073

PANEL, SIDE

ASSEMBLY side, left-hand, complete, no longer available, Includes: Ref. 7 - 9

1шт.

7

K772649

PANEL

side, right-hand, no longer available

1шт.

7

K772644

PANEL

side, left-hand, no longer available

1шт.

8

K772654

WINDOW

side panel

1шт.

K774418

SPOOL

BOBBIN window, no longer available

5шт.

K692095

RIVET

window, no longer available

5шт.

9

K772895

WASHER

RAIL curtain, right-hand, no longer available

1шт.

9

K773003

RAIL curtain, left-hand, no longer available

1шт.

10

K603926

SCREW

hex, panels to frame, 1/4 NC x 3/4 inch, no longer available

24шт.

K773209

STUD panels to frame, no longer available

2шт.

K626662

WASHER

flat, panels to frame, 1/4 inch (Replaces washer K19470)

26шт.

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, , Panels to frame Ext Tooth, 1/4"

26шт.

425-104

NUT,1/4"-20, Cl 5

panels to frame (Replaces nut K607043) 1/4"-20, G5

2шт.

K773276

HOOK

coat, panels to frame, no longer available

2шт.

11

K773199

PLATE

rear number, no longer available

1шт.

12

K954461

PLATE

LAMP ASSEMBLY rear number plate, no longer available (Replaces lamp assembly K773358), Includes: Cover, Holder, Base, Screw, and Lead

1шт.

K692044

COVER

lamp, no longer available

1шт.

K692045

BASE

HOLDER bulb, no longer available

1шт.

K692046

BASE

rubber, no longer available

1шт.

K19391

SCREW

lamp (Replaces screw K692047)

1шт.

K692048

SPARE PART

LEAD lamp, no longer available

1шт.

13

K692069

SCREW

set, lamp to plate, 1/4 NC x 1 inch, no longer available

3шт.

K626662

WASHER

flat, lamp to plate, 1/4 inch (Replaces washer K19470)

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Lamp to plate (Replaces washer K626341) 1/4"

3шт.

K691893

NUT

wing, lamp to plate, 1/4 inch NC, no longer available

3шт.

K773359

ELECTRICAL WIRE

LEAD lamp to connector, no longer available

1шт.

K67916

ELEC CONNECTOR

single

4шт.

K773360

ELECTRICAL WIRE

LEAD connectors to three-way connector, no longer available

1шт.

K691989

CLIP

leads to cab, no longer available

1шт.

K692034

STRAP

CLIP, Serial Range: leads-cab

3шт.

K692035

LINK

retaining, leads to cab, no longer available

3шт.

K691892

SCREW

set, leads to cab, 1/4 NC x 1 inch, no longer available

1шт.
