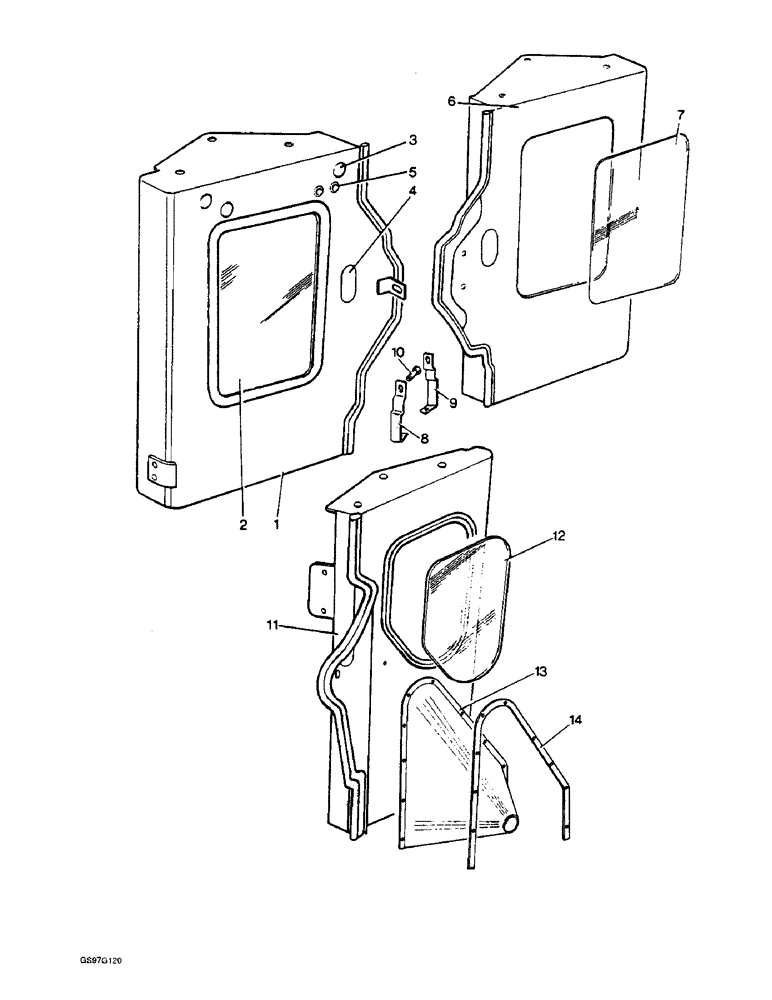

Запчасти Case IH 1210 (9-046) - BULKHEADS FOR DB WEATHERFRAME, 1210 AND 1212 TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

K773435

PANEL

ASSEMBLY bulkhead, right-hand, complete, no longer available, Includes: Ref. 1 - 5

1шт.

1

K772813

PANEL bulkhead, no longer available

1шт.

2

K772748

GLASS

PANEL, no longer available

1шт.

3

K691967

GROMMET

bulkhead panel, no longer available

3шт.

4

K691968

GROMMET

bulkhead panel, no longer available

1шт.

5

K692169

GROMMET

bulkhead panel, no longer available

2шт.

K773434

PANEL

ASSEMBLY bulkhead, left-hand, hydrostatic steering, complete, no longer available, Includes: Ref. 6 and 7

1шт.

6

K772264

PANEL bulkhead, no longer available

1шт.

7

K772748

GLASS

PANEL

1шт.

8

K773028

SUPPORT

right-hand bulkhead

1шт.

9

K772680

SUPPORT

left-hand bulkhead, no longer available

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, bulkheads to supports and supports to platforms (Replaces screw K602984)

6шт.

K19472

WASHER

flat, bulkheads to supports and supports to platforms, 3/8 inch

6шт.

492-11038

LOCK WASHER,3/8"

bulkheads to supports and supports to platforms (Replaces washer K19482) 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

Bulkheads to supports and supports to platforms (Replaces nut K607045) 3/8"-16, G5

6шт.

K773436

PANEL

ASSEMBLY bulkhead, left-hand, manual steering, complete, no longer available, Includes: Ref. 11 - 14 and Rivet

1шт.

11

K772713

PANEL bulkhead, no longer available

1шт.

12

K772747

GLASS

PANEL, no longer available

1шт.

13

K773451

BOOT

GAITER ASSEMBLY bulkhead, no longer available, Includes: Ref. 14 and Rivet

1шт.

14

K773429

CLAMP

gaiter to bulkhead, no longer available

1шт.

K691972

RIVET

gaiter to bulkhead, no longer available

11шт.
