Запчасти Case IH 1210 (9-044) - WEATHERFRAME AND WINDSHIELD, 1210 AND 1212 TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

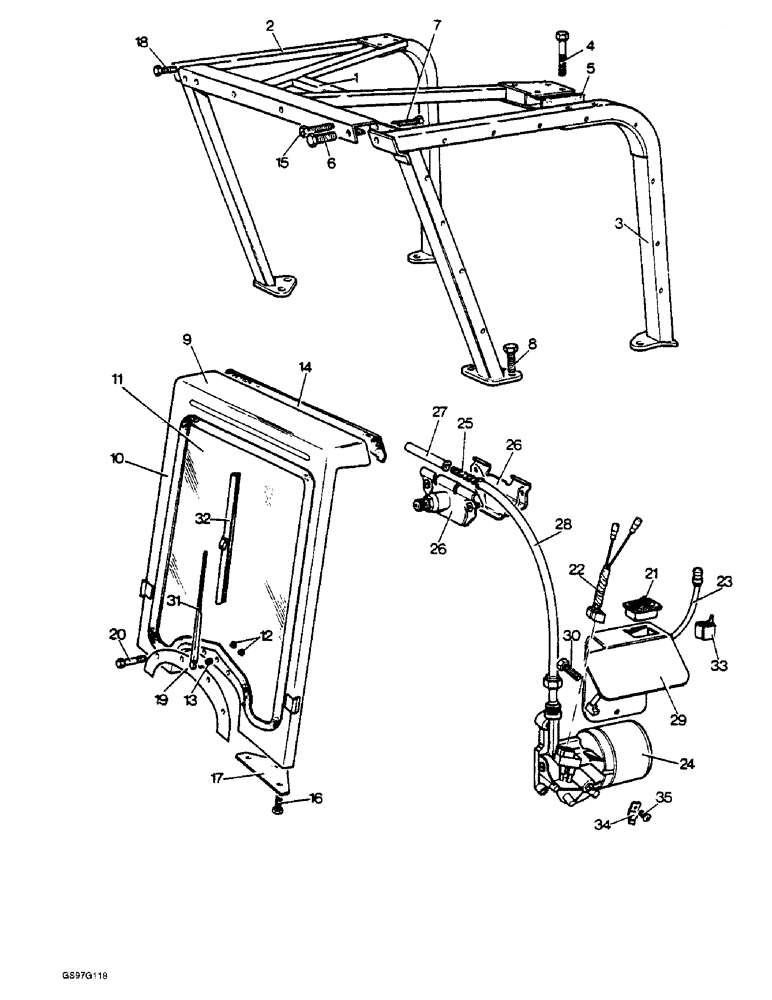

Схема запчастей Case IH 1210 - (9-044) - WEATHERFRAME AND WINDSHIELD, 1210 AND 1212 TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS
25
27
28
13
22
10
24
1
9
14
34
4
17
20
30
19
12
8
18
33
16
26
11
2
29
26
32
7
21
35
6
31
5
3
15
23

Артикул

Название

Примечание

Количество

1

K770710

FRAME

top

1шт.

K773193

PLATE identification, no longer available

1шт.

K691567

RIVET

frame, no longer available

4шт.

2

K772692

FRAME

side, right-hand

1шт.

3

K772691

FRAME

side, left-hand

1шт.

K692065

BOLT

INSERT, 5/8 inch long, no longer available

16шт.

K692101

BOLT

INSERT, 11/16 inch long, no longer available

8шт.

4

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, side frames to top frame, 1/2 NC x 3-1/4 inch (Replaces bolt K600887)

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Side frames to top frame (Replaces washer K626345) 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Side frames to top frame (Replaces nut K607047) 1/2"-13, G5

8шт.

5

K722174

PAD seating, side frames to top frame

2шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Side frames to top frame (Replaces screw K603274) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

7

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, side frames to top frame, 5/8 NC x 1-3/4 inch (Replaces screw K603276)

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Side frames to top frame (Replaces washer K19485) 5/8"

6шт.

8

K603274

SCREW

set, side frames to fenders, 5/8 NC x 1-1/2 inch

8шт.

K691826

WASHER

flat, side frames to fenders, 5/8 inch

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Side frames to fenders (Replaces washer K19485) 5/8"

8шт.

9

K773298

WINDSHIELD

ASSEMBLY frame and glass, no longer available, Includes: Ref. 10 and 11

1шт.

10

K72931

PANEL windscreen

1шт.

11

K772674

WINDSHIELD

no longer available

1шт.

12

K628085

PLUG,Cap, .458" OD

1/2 inch ID

2шт.

13

K691959

GROMMET

3/8 inch

2шт.

14

K773009

BUSHING

SPACER rubber, windscreen to weatherframe, no longer available

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Windscreen to weatherframe (Replaces setscrew K603143) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

K691875

WASHER

special, windscreen to weatherframe, 1/2 inch, no longer available

4шт.

K691874

WASHER

rubber, windscreen to weatherframe, 1/2 inch, no longer available

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Windscreen to weatherframe (Replaces washer K626345) 1/2"

4шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Windscreen to bulkhead panels Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

492-11038

LOCK WASHER,3/8"

windscreen to bulkhead panels (Replaces washer K19482) 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

Windscreen to bulkhead panels (Replaces nut K607045) 3/8"-16, G5

6шт.

17

K773027

SEAL

PAD seating, windscreen to bulkhead panels, no longer available

2шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Windscreen to side panels (Replaces setscrew K602737) Hex, 1/4"-20 x 1", G5

2шт.

K626662

WASHER

flat, windscreen to side panels, 1/4 inch (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Windscreen to side panels (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

Windscreen to side panels (Replaces nut K607043) 1/4"-20, G5

2шт.

19

K773246

SEAL

PLATE, windscreen to bonnet, no longer available

1шт.

K692020

SCREW

set, windscreen to sealing plate, 8 x 1.25 mm, no longer available

1шт.

K692022

NUT

windscreen to sealing plate, 8 mm, no longer available

1шт.

20

413-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

hex, windscreen to sealing plate, 1/4 NC x 1-5/8 inch (Replaces bolt K692008)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Windscreen to sealing plate (Replaces washer K626341) 1/4"

4шт.

K691893

NUT

wing, windscreen to sealing plate, 1/4 inch NC, no longer available

4шт.

21

K691923

SWITCH

windscreen wiper, Lucas 39539, no longer available

1шт.

22

K773538

HARNESS

windscreen wiper, no longer available

1шт.

23

K773783

CABLE

LEAD connector to windscreen wiper connector, no longer available

1шт.

K773489

WIPER

MOTOR ASSEMBLY, Lucas 54071787 Type 14W 75666, no longer available, Includes: Ref. 24 and 25

1шт.

24

K775997

MOTOR wiper, no longer available

1шт.

25

K775998

DRIVE

CABLE drive, no longer available

1шт.

26

K691915

WHEEL

BOX, Lucas 72884, no longer available

1шт.

27

K691917

TUBE

short, Lucas 740746, no longer available

1шт.

28

K773248

TUBE

long, Lucas 54711270, no longer available

1шт.

29

K773268

COVER wiper motor

1шт.

30

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Replaces screw K602735) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

2шт.

31

K773405

WIPER

ARM

1шт.

32

K773406

WIPER

BLADE, no longer available

1шт.

33

K903822

WASHER

CLIP leads

2шт.

34

K925268

BLADE

connector, Serial Range: harness-earth

1шт.

35

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, harness to earth, No. 10 NF x 1/2 inch (Replaces screw K614944)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Harness to earth (Replaces washer K626340) #10

1шт.

225-14210

NUT,#10-32

Harness to earth (Replaces nut K617080) #10-32

1шт.

Выбрано товаров: 62
