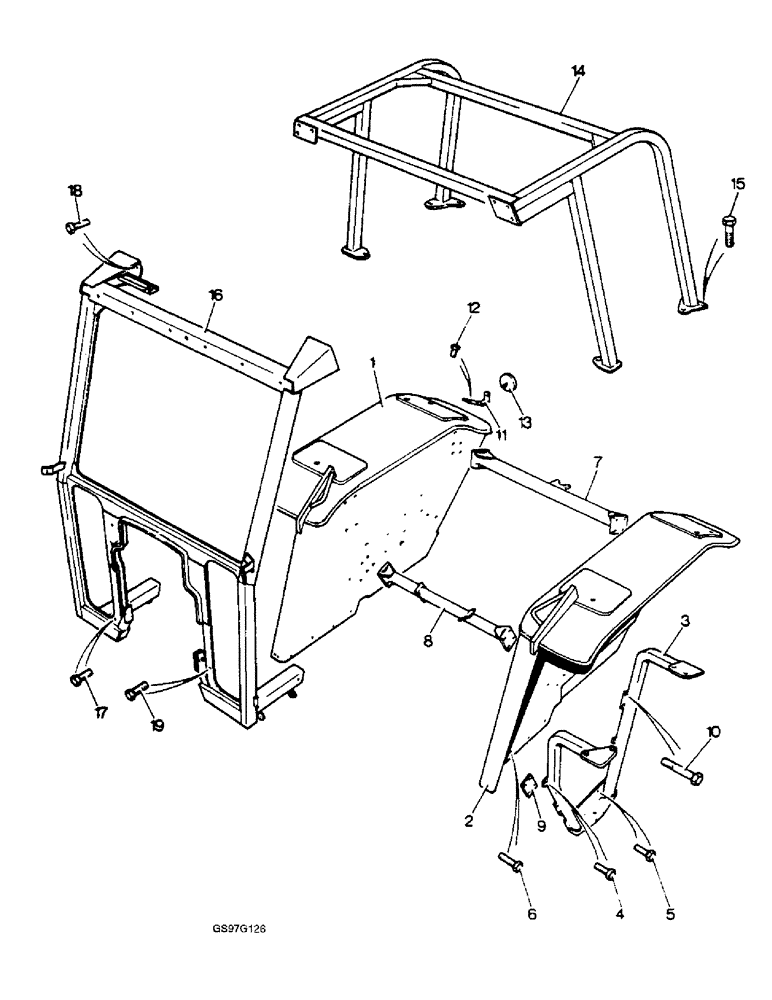

Запчасти Case IH 1210 (9-040) - FENDERS AND CAB FRAME, 1210Q, 1212Q, 1210SK AND 1212SK TRACTORS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K955161
WHEEL
FENDER full, right-hand, tractor serial number 11158600 and after, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
1
K950303
WHEEL
FENDER full, right-hand, tractor serial numbers prior to 11158600, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
1
K954084
FENDER full, right-hand, 428 mm wide, used with 1210Sk and 1212Sk tractors, no longer available
1шт.
2
K955162
RIM
FENDER full, left-hand, tractor serial number 11158600 and after, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
2
K950304
RIM
FENDER full, left-hand, tractor serial numbers prior to 11158600, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
2
K954083
FENDER full, left-hand, 428 mm wide, used with 1210Sk and 1212Sk tractors, no longer available
1шт.
3
K955119
FRAME
BRACKET support, right-hand, tractor serial number 11158600 and after, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
3
K955118
FRAME
BRACKET support, left-hand, tractor serial number 11158600 and after, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
3
K950299
FRAME
BRACKET support, right-hand, tractor serial numbers prior to 11158600, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
3
K950300
FRAME
BRACKET support, left-hand, tractor serial numbers prior to 11158600, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
4
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Hex, 5/16"-18 x 7/8", G5, Fenders to support brackets (Replaces setscrew K602849)
8шт.
Used with 1210Q and 1212Q tractors.
1шт.
K626682
WASHER
flat, fenders to support brackets, 5/16 inch
8шт.
Used with 1210Q and 1212Q tractors.
1шт.
LOCK WASHER,5/16"
WASHER, LOCK, , fenders to support brackets (Replaces washer K19481) 5/16"
8шт.
Used with 1210Q and 1212Q tractors.
1шт.
425-105
NUT,5/16"-18, G5
- hex, fenders to support brackets, 5/16 inch NC (Replaces nut K607044)
8шт.
Used with 1210Q and 1212Q tractors.
1шт.
5
K602736
SCREW
set, fenders to support brackets, 1/4 NC x 7/8 inch
4шт.
Used with 1210Q and 1212Q tractors.
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Fenders to support brackets (Replaces washer K626341) 1/4"
4шт.
Used with 1210Q and 1212Q tractors.
1шт.
425-104
NUT,1/4"-20, Cl 5
Fenders to support brackets (Replaces nut K607043) 1/4"-20, G5
4шт.
Used with 1210Q and 1212Q tractors.
1шт.
6
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
hex, fenders to cab floor, 1/4 NC x 5/8 inch (Replaces setscrew K602733)
30шт.
Used with 1210Q and 1212Q tractors.
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Fenders to cab floor 1/4"
30шт.
Used with 1210Q and 1212Q tractors.
1шт.
425-104
NUT,1/4"-20, Cl 5
Fenders to cab floor (Replaces nut K607043) 1/4"-20, G5
30шт.
Used with 1210Q and 1212Q tractors.
1шт.
7
K955742
SUPPORT
BEAM cross, rear, tractor serial number 11158600 and after, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
7
K949508
BEAM
cross, rear, tractor serial numbers prior to 11158600, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
8
K955743
BEAM
cross, front, tractor serial number 11158600 and after, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
8
K950604
BEAM
cross, front, tractor serial numbers prior to 11158600, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
9
K948719
PLATE clamping, Serial Range: beams-fenders
4шт.
Used with 1210Q and 1212Q tractors.
1шт.
10
413-748
BOLT,Hex, 7/16" - 14 x 3", Gr 5
hex, 7/16 NC x 3 inch, beams to fenders (Replaces bolt K600703)
16шт.
Used with 1210Q and 1212Q tractors.
1шт.
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, , Beams to fenders (Replaces washer K626344) 7/16"
16шт.
Used with 1210Q and 1212Q tractors.
1шт.
11
K929468
BRACKET
reflector
2шт.
Used with 1210Q and 1212Q tractors.
1шт.
12
K603924
SCREW
set, brackets to fenders, 1/4 NC x 1/2 inch
4шт.
Used with 1210Q and 1212Q tractors.
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Brackets to fenders (Replaces washer K626341) 1/4"
4шт.
Used with 1210Q and 1212Q tractors.
1шт.
425-104
NUT,1/4"-20, Cl 5
Brackets to fenders (Replaces nut K607043) 1/4"-20, G5
4шт.
Used with 1210Q and 1212Q tractors.
1шт.
13
K302778
REFLECTOR
fender (Replaces reflector K951642)
2шт.
Used with 1210Q and 1212Q tractors.
1шт.
490-1108
SCREW,Cross Pan Hd, #10-32 x 1/2"
- machine, pan Phillips, No. 10 NF x 1/2 inch
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
492-11010
LOCK WASHER,#10
WASHER, LOCK, , Reflectors to brackets (Replaces washer K626340) #10
2шт.
Used with 1210Q and 1212Q tractors.
1шт.
K11109
NUT
2 BS
2шт.
Used with 1210Q and 1212Q tractors.
1шт.
K954774
REFLECTOR
includes hardware, Sekura 945.021, used with 1210Sk and 1212Sk tractors, no longer available
2шт.
14
K955191
FRAME
upper, tractor serial number 11158600 and after, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
14
K954142
CAB
FRAME upper, tractor serial numbers prior to 11158600, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
15
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
Frame to fenders (Replaces bolt K603274) Hex, 5/8"-11 x 1 1/2", G5, Full Thd
8шт.
Used with 1210Q and 1212Q tractors.
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Frame to fenders (Replaces washer K19485) 5/8"
8шт.
Used with 1210Q and 1212Q tractors.
1шт.
K691826
WASHER
special, frame to fenders, 5/8 inch
8шт.
Used with 1210Q and 1212Q tractors.
1шт.
16
K955739
FRAME
front, tractor serial number 11158600 and after, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
16
K950373
FRAME
front, tractor serial numbers prior to 11158600, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
17
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
set, frame to cab floor, 5/16 NC x 3/4 inch
10шт.
Used with 1210Q and 1212Q tractors.
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
425-105
NUT,5/16"-18, G5
- hex, frame to cab floor, 5/16 inch NC (Replaces nut K607044)
10шт.
Used with 1210Q and 1212Q tractors.
1шт.
18
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
hex, front frame to upper frame, 3/8 NC x 1-1/4 inch (Replaces setscrew K602936)
4шт.
Used with 1210Q and 1212Q tractors.
1шт.
413-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
Front frame to upper frame (Replaces screw K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd
2шт.
Used with 1210Q and 1212Q tractors.
1шт.
492-11038
LOCK WASHER,3/8"
front frame to upper frame 3/8"
6шт.
Used with 1210Q and 1212Q tractors.
1шт.
425-106
NUT,3/8"-16, Cl 5
Front frame to upper frame 3/8"-16, G5
6шт.
Used with 1210Q and 1212Q tractors.
1шт.
19
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
hex, front frame to console, 5/16 NC x 1 inch (Replaces screw K602847)
3шт.
Used with 1210Q and 1212Q tractors.
1шт.
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
set, front frame to console, 5/16 NC x 3/4 inch
7шт.
Used with 1210Q and 1212Q tractors.
1шт.
LOCK WASHER,5/16"
WASHER, LOCK, , front frame to console (Replaces washer K19481) 5/16"
10шт.
Used with 1210Q and 1212Q tractors.
1шт.
K627726
GROMMET
rubber, front frame, 1 inch ID, no longer available
1шт.
Used with 1210Q and 1212Q tractors.
1шт.
K627742
GROMMET
PLUG rubber, loader control cable holes, 15/32 inch ID
2шт.
Used with 1210Q and 1212Q tractors.
1шт.
Выбрано товаров: 107
