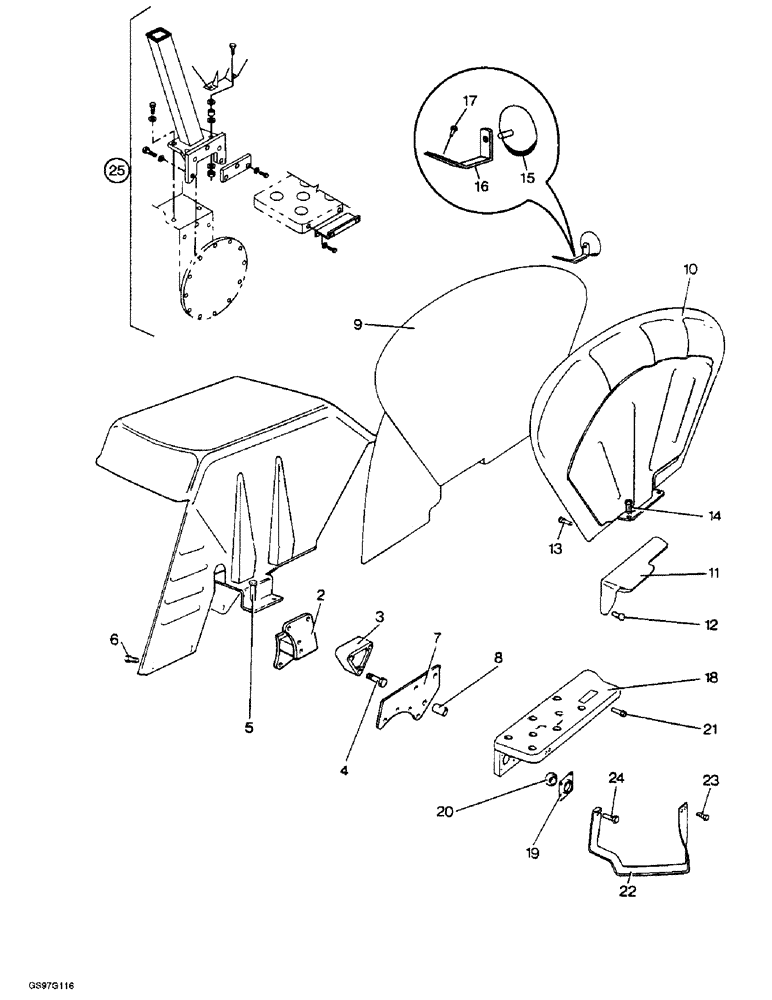

Запчасти Case IH 1210 (9-034) - FENDERS, FRAME PLATFORMS AND ROPS ATTACHMENT, 1210, 1210 FOUR-WHEEL DRIVE AND 1212 TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K952447

FENDER

ASSEMBLY full, right-hand, no longer available (Replaces fender K945490), Includes; Screw

1шт.

1

K952446

FENDER

ASSEMBLY full, left-hand, no longer available (Replaces fender K945489), Includes: Screw

1шт.

K602740

SCREW

hex, harness to fender, 1/4 NC x 5/8 inch, no longer used

6шт.

2

K950017

FENDER

SUPPORT right-hand, no longer available

1шт.

Used with 1210 four-wheel drive tractors with serial numbers prior to 11156468.

1шт.

2

K953769

FENDER

SUPPORT right-hand, no longer available

1шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

2

K950016

FENDER

SUPPORT left-hand, no longer available

1шт.

Used with 1210 four-wheel drive tractors with serial numbers prior to 11156468.

1шт.

2

K953768

FENDER

SUPPORT left-hand, no longer available

1шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, fenders to supports, 5/8 NC x 1-3/4 inch

2шт.

Used with 1210 four-wheel drive tractors with serial numbers prior to 11156468.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Fenders to supports (Replaces washer K19485) 5/8"

6шт.

Used with 1210 four-wheel drive tractors with serial numbers prior to 11156468.

1шт.

425-1010

NUT,5/8"-11, G5

Fenders to supports (Replaces nut K607048) 5/8"-11, G5

6шт.

Used with 1210 four-wheel drive tractors with serial numbers prior to 11156468.

1шт.

K627100

BUSHING

SPACER, Serial Range: fenders-suppports

4шт.

Used with 1210 four-wheel drive tractors with serial numbers prior to 11156468.

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Fenders to supports Hex, 5/8"-11 x 3 1/2", G5

6шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, fenders to supports, 5/8 NC x 1-3/4 inch

2шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

K627100

BUSHING

SPACER, Serial Range: fenders-supports

2шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

3

K921932

BLOCK

packing, brackets to reduction housing, 2-3/8 inch

2шт.

4

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

hex, brackets to reduction housing, 5/8 NC x 3-3/4 inch, used with 1210 and 1212 tractors (Replaces bolt K601324)

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Brackets to reduction housing, used with 1210 and 1212 tractors (Replaces washer K19485) 5/8"

6шт.

K626855

WASHER

flat, brackets to reduction housing, 5/8 inch, used with 1210 and 1212 tractors

6шт.

4

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

hex, supports to reduction housing, 5/8 NC x 3-3/4 inch (Replaces bolt K601324)

4шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

hex, supports to reduction housing, 5/8 NC x 4-1/4 inch (Replaces bolt K601334)

2шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

K626855

WASHER

flat, supports to reduction housing, 5/8 inch

6шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Supports to reduction housing (Replaces washer K19485) 5/8"

6шт.

Used with 1210 four-wheel drive tractors with serial number 11156468 and after.

1шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Fenders to axle (Replaces setscrew K603141) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Fenders to axle (Replaces washer K626345) 1/2"

2шт.

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Fender backplate to frame platforms (Replaces setscrew K702735) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fender backplate to frame platforms 1/4"

4шт.

K626662

WASHER

flat, fender backplate to frame platforms, 1/4 inch (Replaces washer K19470)

8шт.

425-104

NUT,1/4"-20, Cl 5

Fender backplate to frame platforms (Replaces nut K607043) 1/4"-20, G5

4шт.

7

K945727

SUPPORT

PLATE, brackets to reduction housing, high clearance only, used with 1210 and 1212 tractors, no longer available

2шт.

8

K627192

BUSHING

SPACER brackets to reduction housing, high clearance only, used with 1210 and 1212 tractors

6шт.

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

hex, brackets to reduction housing, high clearance only, 5/8 NC x 4-1/4 inch, used with 1210 and 1212 tractors (Replaces bolt K601217)

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Brackets to reduction housing, high clearance only, used with 1210 and 1212 tractors (Replaces washer K19485) 5/8"

6шт.

9

K916508

FENDER

shell, right-hand, no longer available

1шт.

9

K916511

FENDER

shell, left-hand, no longer available

1шт.

10

K916504

FAN

FENDER, tractors for USA only

2шт.

11

K916513

SUPPORT

BRACKET mounting, right-hand

1шт.

11

K916514

SUPPORT

BRACKET mounting, left-hand, no longer available

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Brackets to axle (Replaces setscrew K603104) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Brackets to axle (Replaces washer K19484) 1/2"

4шт.

13

K602846

SCREW,5/16" - 18 x 5/8", Gr S

set, fenders to mounting brackets, 5/16 NC x 5/8 inch

6шт.

14

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch, Fenders to mounting brackets (Replaces bolt K600322)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , fenders to mounting brackets (Replaces washer K19481) 5/16"

10шт.

425-105

NUT,5/16"-18, G5

- hex, fenders to mounting brackets, 5/16 inch NC (Replaces nut K607044)

2шт.

15

K302778

REFLECTOR

fender (Replaces reflectors K913554 and K964716)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Reflectors to bracket (Replaces washer K626340) #10

1шт.

K11109

NUT

2 BA

1шт.

16

K943024

BRACKET

reflector, shell and fan fenders

2шт.

16

K929468

BRACKET

reflector, full fenders

2шт.

17

K603924

SCREW

hex, 1/4 NC x 1/2 inch, Serial Range: brackets-fenders

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Brackets to fenders (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

Brackets to fenders (Replaces nut K607043) 1/4"-20, G5

4шт.

18

K916524

FRAME

PLATFORM ASSEMBLY, right-hand, no longer available, Includes: Ref. 19 and 20

1шт.

18

K942850

FRAME

PLATFORM ASSEMBLY, left-hand, no longer available, Includes: Ref. 19 and 20

1шт.

19

K916527

WASHER

BRACKET bearing

1шт.

20

K916526

BUSHING

BEARING frame

1шт.

21

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Platforms to main frame (Replaces K603003) Hex, 7/16"-14 x 1", G5, Full Thd

12шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Platforms to main frame (Replaces washer K19483) 7/16"

12шт.

22

K919715

STEP

STIRRUP frame platform

1шт.

22

K942687

STEP

STIRRUP frame platform, high clearance, used with 1210 and 1212 tractors, no longer available

1шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Stirrup to platform Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , stirrup to platform (Replaces washer K19481) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, stirrup to platform, 5/16 inch NC (Replaces nut K607001)

2шт.

24

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

hex, stirrup to platform, 7/16 NC x 1-1/4 inch (Replaces setscrew K603005)

1шт.

K626314

WASHER

flat, stirrup to platform, 7/16 inch (Replaces washer K19473)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Stirrup to platform (Replaces washer K19483) 7/16"

1шт.

25

227766A1

ROPS

KIT attachment

1шт.
