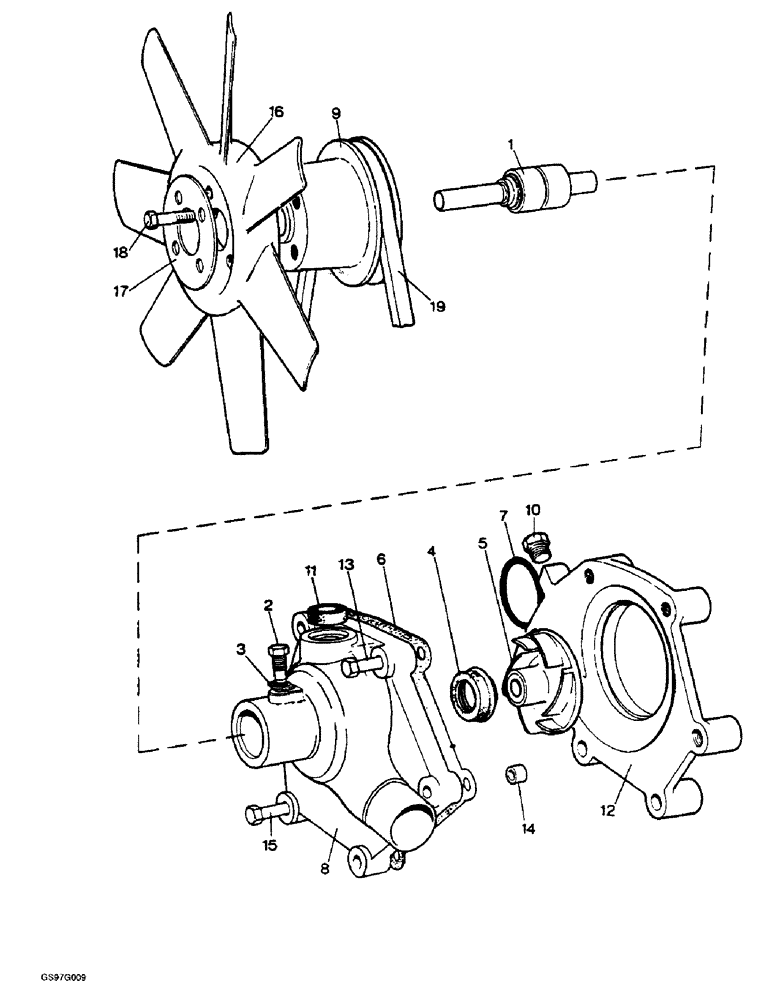

Запчасти Case IH 1210 (2-06) - WATER PUMP, FAN AND BELT (02) - ENGINE

K200679

PUMP

ASSEMBLY water (Replaces pump assemblies K945424 and K954288), Includes: Ref. 1 - 10

1шт.

1

K9262796

SHAFT water pump, includes bearing (Replaces shaft K11651)

1шт.

2

K903810

SCREW,Locating, 5/16" - 18 x 21/32"

locating, 5/16 inch NC (Replaces screw K946260)

1шт.

3

K11673

WASHER

tab, locating screw

1шт.

4

K260133

SEAL

gland (Replaces seal K68949)

1шт.

5

K943357

IMPELLER

water pump

1шт.

6

K942844

GASKET

, Serial Range: pump-housing

1шт.

7

238-6223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

housing to cylinder head, 1-3/4 ID x 1/8 inch wide (Replaces O-ring K24737)

1шт.

8

NSS

NOT SOLD SEPARAT

BODY water pump, order pump assembly (Replaces pump bodies K945308 and K953439)

1шт.

9

K942475

PULLEY

water pump

1шт.

10

K623829

PLUG

3/8 BSP

2шт.

K19500

GASKET

WASHER fibre

2шт.

11

K915330

SEALING RING

SEAL rubber, pump to cylinder head

1шт.

12

K952667

HOUSING

impeller, no longer available

1шт.

13

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch (Replaces bolt K600203)

2шт.

14

K31064

SLEEVE

DOWEL ring

2шт.

15

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch (Replaces bolt K600211)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

6шт.

16

K921359

FAN

seven blade

1шт.

17

K921361

SHIM

PLATE retaining, fan

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces screw K602984) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

19

K68073

V-BELT

Driving, Fan and alternator

4шт.

K965848

PACKAGE, REPAIR

KIT, water pump (Replaces kit K964490)

1шт.
