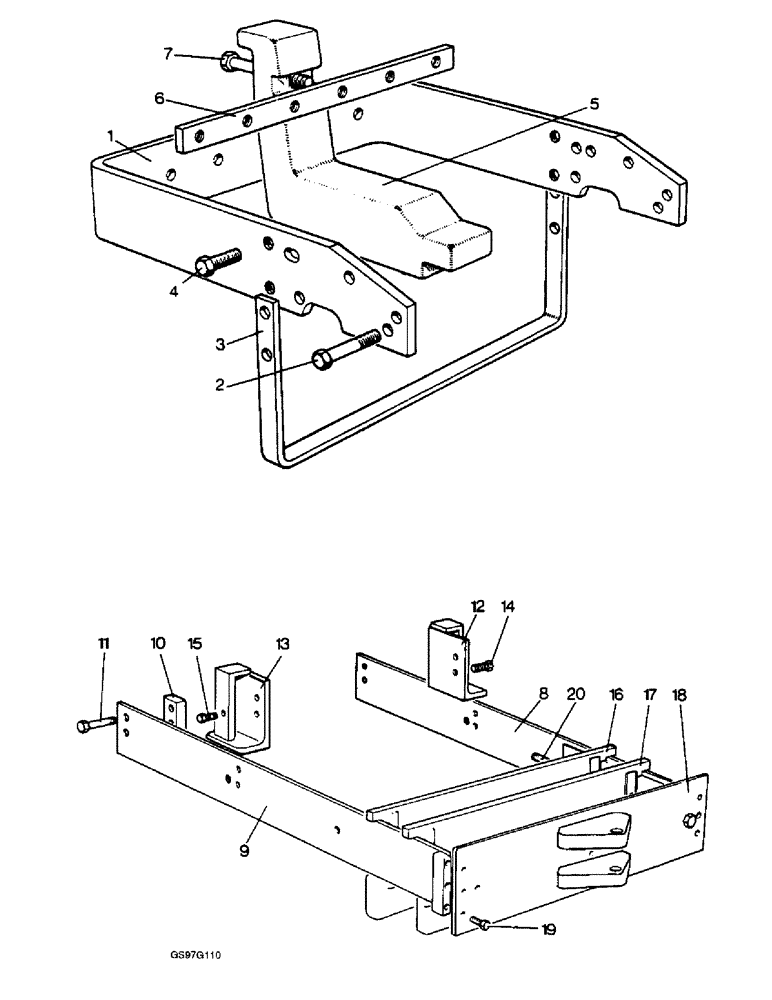

Запчасти Case IH 1210 (9-028) - CHASSIS BALLAST WEIGHTS (09) - CHASSIS/ATTACHMENTS

K186500

WEIGHT

ASSEMBLY ballast, front chassis (Replaces weight assembly K931600), Includes: Ref. 1 - 7 and Washer

1шт.

1

K916699

SUPPORT

FRAME

1шт.

2

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, frame to front extension, 5/8 NC x 1-3/4 inch (Replaces bolt K603276)

6шт.

K19475

WASHER

flat, frame to front extension, 5/8 inch

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Frame to front extension (Replaces washer K19485) 5/8"

6шт.

3

K915386

BRACKET

STIRRUP support frame

1шт.

4

K603279

SCREW

set, stirrup to support frame, 5/8 NC x 1-3/8 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Stirrup to support frame (Replaces washer K19485) 5/8"

4шт.

5

K916700

WEIGHT

ballast, 67 lb (30 kg), no longer available

6шт.

6

K915388

BAR

locking

1шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Weights to locking bar (Replaces bolt K601366) Hex, 5/8"-11 x 3 1/2", G5

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Weights to locking bar (Replaces washer K19485) 5/8"

6шт.

K184800

CARRIER

WEIGHT ASSEMBLY ballast, front chassis, used with 1210 four-wheel drive tractors (Replaces weight assembly K931469), Includes: Ref. 8 - 20, Washer's, Nut's, and Bolt

1шт.

K203000

TOOL

FRAME ASSEMBLY front chassis, used with 1210G, 1212G and 1210 four-wheel drive tractors (Replaces frame K932169), Includes: Ref. 8 - 15 and Washer

1шт.

8

K949315

LACING, BELT

FRAME side, left-hand

1шт.

9

K949316

LACING, BELT

FRAME side, right-hand, no longer available

1шт.

10

K949318

BUSHING

SPACER side frames to front extension, no longer available

2шт.

11

K601336

BOLT

hex, side frames to front extension, 5/8 NC x 3-1/4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Side frames to front extension (Replaces washer K19485) 5/8"

4шт.

12

K949319

SUPPORT

BRACKET, left-hand

1шт.

13

K949322

SUPPORT

BRACKET, right-hand

1шт.

14

K603278

SCREW

BOLT hex, support brackets to front extension, 5/8 NC x 2 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Support brackets to front extension (Replaces washer K19485) 5/8"

4шт.

15

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, support brackets to side frames, 5/8 NC x 1-3/4 inch (Replaces bolt K603276)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Support brackets to side frames (Replaces washer K19485) 5/8"

2шт.

16

K949672

WEIGHT

80 lb (36 kg), used with 1210 four-wheel drive tractors

1шт.

17

K949673

WEIGHT

80 lb (36 kg), used with 1210 four-wheel drive tractors, no longer available

10шт.

18

K950322

FRAME

front, used with 1210G, 1212G and 1210 four-wheel drive tractors, no longer available

1шт.

19

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, front frame to side frames, 5/8 NC x 2-3/4 inch, used with 1210G, 1212G and 1210 four-wheel drive tractors (Replaces bolt K601362)

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Front frame to side frames, used with 1210G, 1212G and 1210 four-wheel drive tractors (Replaces washer K19485) 5/8"

6шт.

20

K600900

BOLT

hex, weights to front frame, 1/2 NC x 15-1/2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Weights to front frame 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Weights to front frame (Replaces nut K607047) 1/2"-13, G5

2шт.

A61343

hex, 1/2 NC x 12 inch (Replaces bolt K600903)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K626345) 1/2"

1шт.

A61338

NUT

special, 1/2 inch NC (Replaces nut K607522)

1шт.
