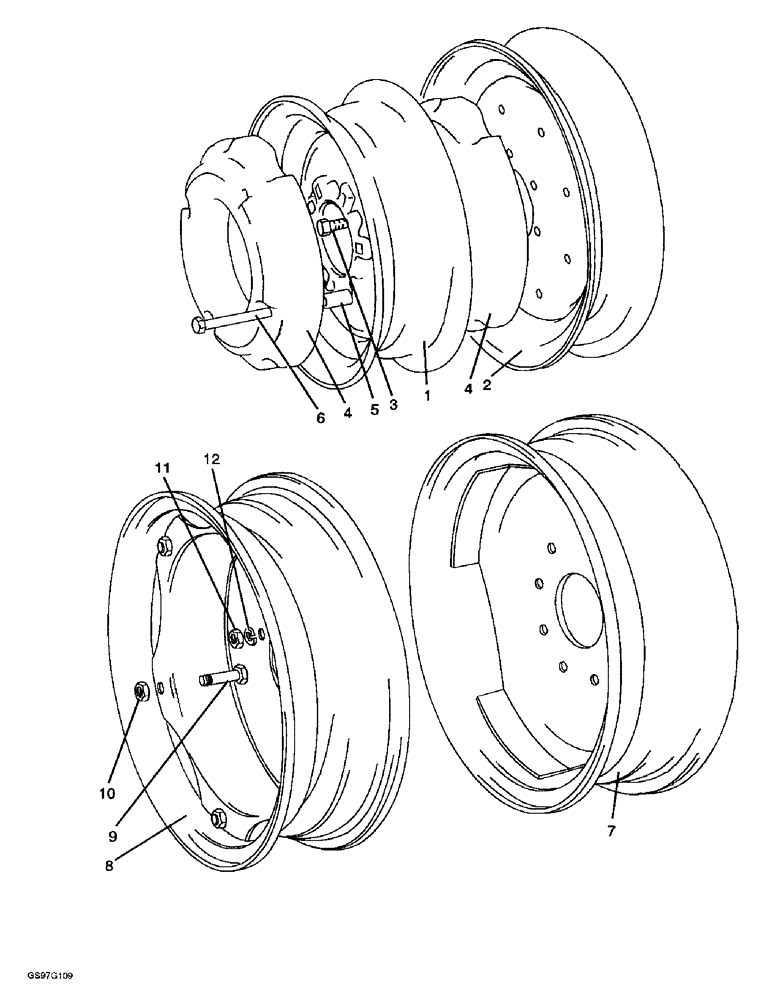

Запчасти Case IH 1210 (9-026) - FRONT WHEELS AND BALLAST WEIGHTS (09) - CHASSIS/ATTACHMENTS

1

G57046

WHEEL ASSY.

front, 5.50F x 16 inch, 1/4 inch thick center, fits 7.50-16 tires, used with 1210, 1210G, 1210Q, 1212G and 1212Q tractors (Replaces wheel K947941)

2шт.

1

K921475

RIM

front, 5.50F x 16 inch, 5/16 inch thick center, fits 7.50-16 tires, used with 1210 tractors, no longer available

2шт.

2

K301046

WHEEL

front, 5.50F x 18 inch, fits 7.50-18 tires, used with 1210, 1210Q and 1212Q tractors (Replaces wheel K949731)

2шт.

2

K947940

WHEEL

front, 4.50E x 19 inch, fits 6.00-19 tires, used with 1210, 1210Q and 1212Q tractors

2шт.

3

K600875

BOLT

wheel, 1/2 NC x 1-7/8 inch, used with 1210, 1210Q, 1212Q, 1210G and 1212G tractors

12шт.

K909326

KIT

WEIGHT ASSEMBLY ballast, 38 kilogram, used with 1210, 1210Q, 1212Q, 1210G and 1212G tractors, no longer available as an assembly, order weight K909316, Ref. 4; tube K909324, Ref. 5; bolt 413-8120, Ref. 6; washer 492-11050 and nut 425-108

1шт.

K907796

NO LONGER SERVICED

WEIGHT ASSEMBLY ballast, used with 1210, 1210Q and 1212Q tractors, no longer available as an assembly, order weight K909316, Ref. 4; bolt K600829, Ref. 6; washer 492-11050 and nut 425-108

1шт.

4

K909316

WEIGHT

ballast

4шт.

5

K909324

BUSHING

TUBE spacer, used with weight assembly K909326, no longer available

8шт.

6

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

hex, 1/2 NC x 7-1/2 inch, used with weight assembly K909326 (Replaces bolt K600831)

8шт.

6

K600829

BOLT

hex, 1/2 NC x 6-3/4 inch, used with weight assembly K907796

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, (Replaces nut K607004) 1/2"-13, G5

8шт.

7

K963984

ASSEMBLY front, complete, non-adjustable, fits 11.2/10-24 tires, used with four-wheel drive tractors (Replaces wheel assembly K944167)

2шт.

8

K954353

WHEEL

ASSEMBLY front, fits 11.2/10-24 tires, used with four-wheel drive tractors, no longer available, Includes: Ref. 9 - 12

2шт.

9

K953703

BOLT

rim, M14 x 117 mm

6шт.

K953705

WASHER

14 mm

6шт.

10

K953704

NUT

M14, no longer available

6шт.

11

K964139

NUT

wheel, M20 (Replaces nut K951824)

16шт.

12

K964140

WASHER

lock, M20 (Replaces washer K951825)

16шт.
