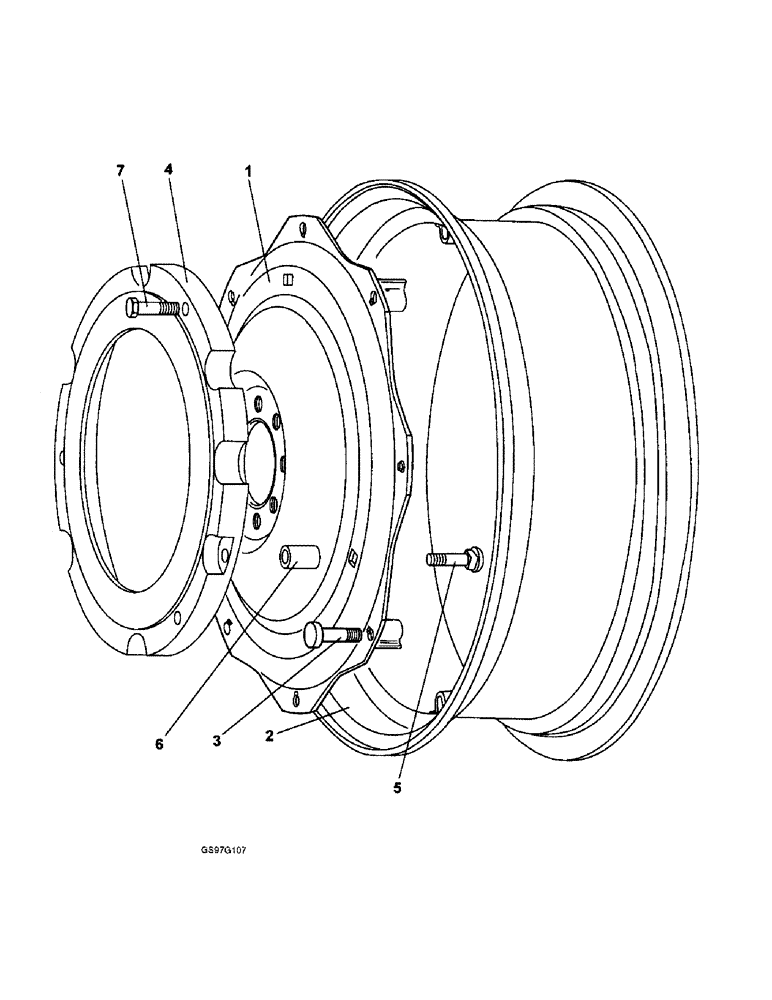

Запчасти Case IH 1210 (9-022) - REAR WHEELS AND BALLAST WEIGHTS, TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

K947707

RIM

ASSEMBLY rear and center, DW14 x 30, used with 1210Q, 1212Q, 1210, 1210G and 1210 four-wheel drive tractors, no longer available, order center K301016, rim K301015, bolt K611270, washer K626855 and nut 425-1110, Includes: Ref. 1 - 3, Washer's, and Nut

2шт.

K946551

RIM

ASSEMBLY rear & center, DW14 x 34, used with 1210, 1210 4WD, 1210Q, 1210Q 4WD, 1212Q, 1212 & 1212G tractors, no longer available, order center K301013, rim K301012, bolt K611270, washer K19475 & nut 425-1110, Includes: Ref. 1 - 3, Washer's, & Nut

2шт.

K946552

RIM

ASSEMBLY rear and center, W11 x 36, used with 1210, 1210 four-wheel drive, 1210G, 1210Q and 1212Q tractors, no longer available, order center K301010, rim K301009, bolt K611270, washer K19475 and nut 425-1110, Includes: Ref. 1 - 3, Washer's, and Nut

2шт.

K946553

RIM

ASSEMBLY rear and center, DW11 x 38, used with 1210, 1210 4WD, 1210G, 1210Q, 1210Q 4WD, 1212 and 1212Q tractors, no longer available, order center K301025, rim K301024, bolt K611270, washer K19475 and nut 425-1110, Includes: Ref. 1 - 3, Washer's, and Nut

2шт.

K946576

RIM

ASSEMBLY rear and center, W14 x 34, used with 1210G four-wheel drive tractors, no longer available, Includes: Ref. 1 - 3, Washer's, and Nut

2шт.

1

K301016

WHEEL

CENTER rear, used with rim assembly K947707 (Replaces center K946542)

1шт.

1

K301013

DISC, WHEEL

CENTER wheel, used with rim assembly K946551 (Replaces center K946543)

1шт.

1

K301010

DISC, WHEEL

CENTER rear, used with rim assemblies K946552 and K946553 (Replaces center K946544)

1шт.

1

K946575

WHEEL

CENTER rear, cast iron, used with rim assembly K946576

1шт.

1

K301025

WHEEL

CENTER rear

1шт.

2

K301015

RIM

rear, used with rim assembly K947707 (Replaces rim K947706)

1шт.

2

K301012

WHEEL

RIM rear, used with rim assemblies K946551 and K946576 (Replaces rim K947005)

1шт.

2

K301009

WHEEL

RIM rear, used with rim assembly K946552 (Replaces rim K916742)

1шт.

2

K301024

RIM

rear, used with rim assembly K946553 (Replaces rim K954145)

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT hex, 5/8 NF x 2-7/8 inch, six used with rim assembly K947707; eight used with rim assemblies K946551, K946552 and K946553

1шт.

3

K611275

BOLT

hex, 5/8 NF x 4-1/2 inch, used with rim assembly K946576

8шт.

K19475

WASHER

lock, 5/8 inch, six used with rim assembly K947707; eight used with rim assemblies K946551, K946552, K946553 and K946576

1шт.

K626855

WASHER

rim and center

1шт.

425-1110

NUT,5/8"-18, G5

6 used with rim assembly K947707; 8 used with rim assemblies K946551, K946552, K946553 and K946576 5/8"-18, G5

1шт.

K21180

BALLAST

WEIGHT ASSEMBLY ballast, used with rim assemblies K946551, K946552 & K946553, no longer available as an assy, for service order weight K86167, Ref. 4; bolt K690452, Ref. 5; spacer K910181, Ref. 6; bolt K19305, Ref. 7; nut K19406 & washer 492-11062

1шт.

K911480

BALLAST

WEIGHT ASSEMBLY ballast, used with rim assembly K947707, no longer available as an assembly, for service order weight K86167, Ref. 4; bolt k611270, Ref. 5; stud K914869, Ref. 6; bolt K19305, Ref. 7 and washer 492-11062

1шт.

4

K86167

WEIGHT

ballast, 100 pound (45 kilogram)

4шт.

5

K690452

BOLT

coach, 5/8 BSF x 2-7/8 inch, used with assembly K21180

6шт.

5

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT coach, 5/8 NF x 2-7/8 inch, used with assembly K911480

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

6шт.

K19406

WHEEL NUT

hex, 5/8 BSF

6шт.

6

K910181

BUSHING

SPACER distance, used with weight assembly K21180

6шт.

6

K914869

STUD

special, 5/8 inch NF, used with weight assembly K911480

6шт.

7

K19305

BOLT

5/8 BSF x 2 inch

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

6шт.
