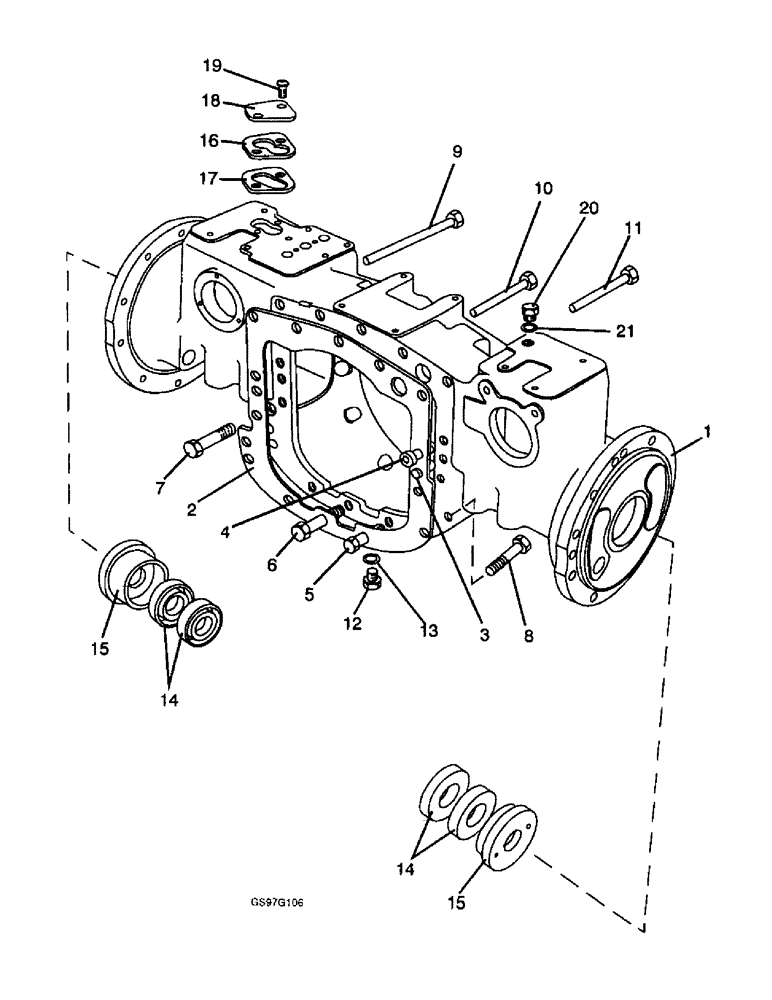

Запчасти Case IH 1210 (9-020) - REAR AXLE HOUSING AND COVERS (09) - CHASSIS/ATTACHMENTS

1

K951500

SHAFT

HOUSING rear axle, cast-iron, used with 1210Q, 1212Q, 1210Q four-wheel drive, 1210Sk, 1212Sk and 1210Sk four-wheel drive tractors; 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors with serial number 11152576 and after

1шт.

1

K942484

SHAFT

HOUSING rear axle, cast iron, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors with serial numbers, Serial Range: prior-11152576

1шт.

1

K954164

SHAFT

HOUSING rear axle, spheroidal graphite iron, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors with serial number 11152576 and after

1шт.

1

K926279

SHAFT

HOUSING rear axle, spheroidal graphite iron, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors with serial numbers, Serial Range: prior-11152576

1шт.

2

K944571

GASKET,0.25mm Thk

rear axle housing to main frame rear (Replaces gasket K922556)

1шт.

3

K900105

PIN

dowel, rear axle housing to main frame rear, 5/8 x 1-7/16 inch

2шт.

4

61-844

HEX SOC SCREW,1/2"-13 x 2 3/4"

hex, rear axle housing to main frame rear, 1/2 NC x 3 inch

2шт.

K11518

WASHER

internal tooth lock, rear axle housing to main frame rear, 1/2 inch

2шт.

5

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Rear axle housing to main frame rear, Used with 1210Q, 1212Q, 1210Q 4WD, 1210Sk, 1212Sk and 1210Sk 4WD tractors; 1210, 1212, 1210G, 1212G, 1210 4WD & 1210G 4WD tractors with S/N 11152576 & after (Replaces bolt K6000806 Hex, 1/2"-13 x 2", G5

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Rear axle housing to main frame rear, 1/2 NC x 1-3/4 inch, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors with S/N's prior to 11152576 Hex, 1/2"-13 x 1 3/4", G5

2шт.

6

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex, 5/8 NC x 2 in, Rear axle housing to main frame rear, used with 1210Q, 1212Q, 1210Q 4WD, 1210Sk, 1212Sk and 1210Sk 4WD tractors; 1210, 1212, 1210G, 1212G, 1210 4WD and 1210G 4WD tractors with S/N 11152576 and after (Replaces bolt K601204)

1шт.

7

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

hex, 1/2 NC x 4-1/4 inch (Replaces bolt K600819)

4шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 in., used with 1210Q, 1212Q, 1210Q four-wheel drive, 1210Sk, 1212Sk & 1210Sk four-wheel drive tractors; 1210, 1212, 1210G, 1212G, 1210 four-wheel drive & 1210G four-wheel drive tractors with S/N 11152576 & after (Replaces bolt K603308)

2шт.

K600807

BOLT

hex, 1/2 NC x 2-1/8 inch, two used with 1210 and 1210G four-wheel drive tractors; three used with 1210, 1212, 1210G and 1212G tractors, no longer available

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

3шт.

9

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

hex, 1/2 NC x 8 inch (Replaces bolt K600832)

1шт.

10

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Used with 1210Q, 1212Q, 1210Q four-wheel drive, 1210Sk, 1212Sk & 1210Sk four-wheel drive tractors; 1210, 1212, 1210G, 1212G, 1210 four-wheel drive & 1210G four-wheel drive tractors with S/N 11152576 & after (Replaces bolt Hex, 5/8"-11 x 4 1/2", G5

3шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors with serial numbers prior to 11152576

3шт.

11

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch (Replaces bolt K600820)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

3шт.

12

K623826

PLUG

drain, 3/4 BSP, no longer available, order plug K623851 and washer K626318, Ref. 12 and 13

1шт.

12

K623851

PLUG

flanged, 3/4 BSP

1шт.

13

K626315

WASHER

sealing, 1-1/16 inch, used with plug K623826

1шт.

13

K626318

WASHER

flat, aluminum, 1-1/16 ID, used with plug K623851

1шт.

14

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

oil, 1-3/4 x 3-3/16 x 1/2 inch

4шт.

15

K62356

HOUSING

oil seal (Replaces housings K920444 and K200090)

2шт.

16

K929465

COVER

PLATE, dump valve, no longer available

1шт.

17

K929464

GASKET

cover plate

1шт.

18

K929463

COVER

PLATE, dump valve blanking

1шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Replaces screw K602803) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

20

K619528

PLUG

oil return port

1шт.

21

K30085

GASKET

WASHER fibre, 7/8 inch

1шт.

K963606

CONVERSION KIT

KIT conversion, high clearance

1шт.
