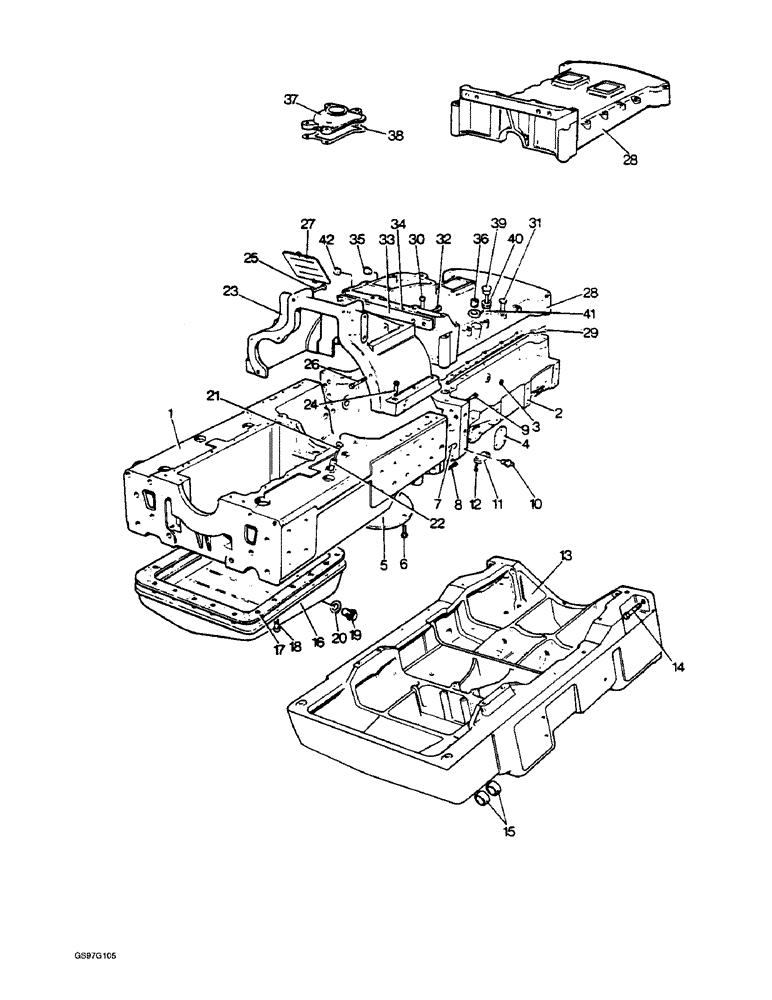

Запчасти Case IH 1210 (9-016) - MAIN FRAME AND COVERS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K948211
FRAME
main, front, no longer available
1шт.
2
K952347
FRAME
main, rear, used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after
1шт.
2
K951236
FRAME main, rear, used with 1210Q and 1210Sk tractors with serial numbers prior to 11152617, no longer available
1шт.
2
K951237
FRAME main, rear, used with 1212Q and 1212Sk tractors with serial numbers prior to 11152617, no longer available
1шт.
2
K951080
FRAME
main, rear, used with 1210 tractors with serial numbers prior to 11152617, no longer available
1шт.
2
K940385
FRAME
main, rear, 1212 tractors with serial numbers prior to 11152617, no longer available, order frame K947865, bolt K600810, washer 492-11050 and screws K606021 and K606047
1шт.
2
K947865
FRAME
main, rear
1шт.
K600810
BOLT
hex, 1/2 NC x 2-1/2 inch
1шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
K606021
SCREW
square end, 5/16 NC x 5/16 inch
1шт.
K606047
SCREW square end, 3/8 NC x 7/8 inch
1шт.
2
K952346
FRAME
main, rear, used with 1210G and 1212G tractors with serial number 11152576 and after, no longer available
1шт.
2
K951081
FRAME
main, rear, used with 1210G tractors with serial numbers prior to 11152576, no longer available
1шт.
2
K948423
FRAME
main, rear, used with 1212G tractors with serial numbers prior to 11152576, no longer available
1шт.
2
K952496
FRAME
main, rear, used with 1210 four-wheel drive tractors with S/N 11152576 and after, 1210G four-wheel drive tractors with S/N 11151792 and after, 1210Q four-wheel drive tractors with S/N 11152617 and after, no longer available
1шт.
2
K949078
FRAME
main, rear, used with 1210G four-wheel drive tractors with serial numbers prior to 11151792, no longer available
1шт.
2
K949077
FRAME
main, rear, used with 1210 four-wheel drive tractors with serial numbers prior to 11152576, no longer available
1шт.
2
K951234
FRAME main, rear, used with 1210Q four-wheel drive tractors with serial numbers prior to 11152617, no longer available
1шт.
353-11
PLUG,Cap, .610" OD
tapered, 5/8 inch (Replaces plug K628084)
30шт.
81-3315
SET SCREW,5/16"-18 x 5/16", Slotted
set, slotted headless, 5/16 NC x 5/16 inch, flat point, main frame rear, 1212, 1212Q and 1212Sk tractors with serial number 11152617 and after; 1212G tractors with serial number 11152576 and after
3шт.
3
K951336
GAUGE
oil sight, used with 1210Q, 1210Q four-wheel drive, 1210Sk, 1212Q and 1212Sk tractors, no longer available
1шт.
K623798
PLUG
core, oil sight gauge aperture, 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors, no longer available
1шт.
4
K950897
PLATE
blanking, two used with 1210Q, 1210Sk, 1212Q and 1212Sk tractors; one used with 1210Q four-wheel drive tractors, no longer available
1шт.
K951124
PLATE
blanking, left-hand, includes anchor bracket, used with 1210Q four-wheel drive tractors, no longer available
1шт.
K916652
GASKET
blanking plate to main frame rear, used with 1210Q, 1210Q four-wheel drive, 1210Sk, 1212Q and 1212Sk tractors, no longer available
2шт.
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd, Blanking plate to main frame rear, 1210Q, 1210Q four-wheel drive, 1210Sk, 1212Q and 1212Sk tractors
6шт.
LOCK WASHER,5/16"
WASHER, LOCK, , blanking plate to main frame rear, used with 1210Q, 1210Q four-wheel drive, 1210Sk, 1212Q and 1212Sk tractors 5/16"
6шт.
5
K919622
PLATE
cover clutch pit
1шт.
K11933
PIN
cotter, 1/8 x 5/8 inch, cover plate, no longer available, order pins 132-45 and 432-812 below
1шт.
132-45
COTTER PIN,1/8" x 5/8"
Pin, Split (Cotter), 1/8" x 5/8"
1шт.
432-812
COTTER PIN,3/4" OAL x 1/8" W
PIN, SPLIT (COTTER), 1/8" x 3/4"
2шт.
6
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
Cover to main frame Hex, 5/16"-18 x 5/8", G5, Full Thd
4шт.
7
K900105
PIN
dowel, main frame front to main frame rear, 5/8 x 1-7/16 inch
2шт.
8
413-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
hex, 1/2 NC x 2-1/4 inch, Main frame front to main frame rear (Replaces fitting K690973), 4 used w/210Q, 1210Sk, 1212Q, 1212Sk, 1210 & 1212 tractors; 6 used w/1210 4WD, 1210G 4WD, 1210Q 4WD, 1210G & 1212G tractors. (Replaces fitting K690973)
1шт.
9
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
hex, main frame front to main frame rear, 1/2 NC x 3 inch (Replaces bolt K600814)
6шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Main frame front to main frame rear (Replaces washer K19484) 1/2"
10шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Main frame front to main frame rear 1/2"-13, G5
2шт.
10
LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF
FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch, clutch cross-shaft, one used with 1210Q 4WD, 1210Q, 1210Sk, 1212Q & 1212Sk tractors; two used with 1210, 1212, 1210G, 1212G, 1210 4WD and 1210G 4WD tractors (Replaces fitting K690973)
1шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper, Clutch cross-shaft, used with 1210Q four-wheel drive, 1210Q, 1210Sk, 1212Q and 1212Sk tractors (Replaces fitting K13176) 1/4"-28 NPT x .54" lg
1шт.
11
K919728
LINK ASSY.
PLATE cover, relief valve aperture
1шт.
K919279
GASKET
cover plate
1шт.
12
K603049
BOLT
SCREW set, 7/16 NC x 7/8 inch (Replaces screw K603002)
2шт.
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, (Replaces washer K19483) 7/16"
2шт.
13
K947367
FRAME
EXTENSION front, no longer available
1шт.
41-1626
PLUG,Cup, 1 5/8", Stainless
front extension, used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210, 1212, 1210G, 1212G and 1210G four-wheel drive tractors (Replaces plug K623794)
1шт.
14
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Extension to main frame (Replaces bolt K600806) Hex, 1/2"-13 x 2", G5
12шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Extension to main frame 1/2"
12шт.
61-35024
HEX SOC SCREW,1/2"-13 x 1 1/2"
BOLT hex, extension to main frame, 1/2 NC x 1-1/2 inch, used with 1210Q, 1210Sk, 1212Q and 1212Sk tractors (Replaces screw K606708)
2шт.
193-32
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, , Extension to main frame, 1210Q, 1210Sk, 1212Q and 1212Sk tractors (Replaces washer K626482) Int Tooth, 1/2"
2шт.
15
K15597
BUSHING
trunnion bearings
4шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, Trunnion bearings, used with 1210, 1212, 1210G, 1212G, 1210Q, 1210Sk, 1212Q and 1212Sk tractors (Replaces fitting K13176) 1/4"-28 NPT x .54" lg
2шт.
K690973
FITTING
grease, 45 degree, 1/4-28 taper, all four-wheel drive tractors
2шт.
K622255
FITTING
grease, special, transverse ram, trunnion bearings, used with 1210Q, 1210Sk, 1212Q and 1212Sk tractors
1шт.
16
K956548
SUMP
COVER (Replaces cover K904077)
1шт.
17
K918684
GASKET,2.38mm Thk
sump cover to main frame (Replaces gasket K906429)
1шт.
18
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
Sump cover to main frame Hex, 5/16"-18 x 5/8", G5, Full Thd
18шт.
19
K623825
PLUG
drain, 1/2 BSP, no longer available, order plug K623849 and washer K626317
1шт.
19
K623849
PLUG
flanged, 1/2 BSP
1шт.
20
K626317
WASHER
flat, aluminum, 27/32 inch (Replaces washer K626793)
1шт.
21
K948222
DIPSTICK
used with serial number 11151792 and after (Replaces dipstick K964773)
1шт.
To service tractor serial numbers prior to 11151792, order dipstick K964773, Ref. 21, sleeve K948224, Ref. 22 and O-ring K625400
1шт.
K625400
O-RING,0.07" Thk x 0.239" ID
3/8 inch ID (Replaces O-ring K14658)
1шт.
To service tractor serial numbers prior to 11151792, order dipstick K964773, Ref. 21, sleeve K948224, Ref. 22 and O-ring K625400
1шт.
22
K948224
SLEEVE
dipstick, used with serial number 11151792 and after
1шт.
To service tractor serial numbers prior to 11151792, order dipstick K964773, Ref. 21, sleeve K948224, Ref. 22 and O-ring K625400
1шт.
23
K955054
CLUTCH
HOUSING, no longer available (Replaces housing K915609)
1шт.
24
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch, housing to main frame
6шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Housing to main frame 1/2"
6шт.
25
413-684
BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5
hex, housing to engine, 3/8 NC x 5-1/4 inch
2шт.
26
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
Housing to engine (Replaces bolt K600408) Hex, 3/8"-16 x 2", G5
1шт.
492-11038
LOCK WASHER,3/8"
housing to engine (Replaces washer K19482) 3/8"
3шт.
27
K923650
COVER
clutch housing, only for cover K915609, used with 1210Q, 1210Sk, 1212Q, 1212Sk, 1210G, 1212G, 1210G four-wheel drive, 1210Q four-wheel drive and 1210 four-wheel drive tractors, no longer available
1шт.
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
Used with cover K923650 Hex, 1/4"-20 x 1/2", G5, Full Thd
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Used with cover K923650 1/4"
2шт.
28
K950674
COVER
gearbox, used with 1210Q, 1210Sk and 1210Q four-wheel drive tractors, no longer available
1шт.
28
K950673
COVER
gearbox, 1212Q and 1212Sk tractors, no longer available
1шт.
28
K947614
COVER
gearbox, used with 1210 tractors with serial number 11152617 and after; 1210 four-wheel drive, 1210G and 1210G four-wheel drive tractors with serial number 11152576 and after, no longer available
1шт.
28
K940988
COVER
gearbox, used with 1210 tractors with serial numbers prior to 11152617; 1210 four-wheel drive, 1210G and 1210G four-wheel drive tractors with serial numbers, Serial Range: prior-11152576
1шт.
28
K947105
COVER
gearbox, 1212 tractors with serial number 11152617 and after, 1212G tractors with serial number 11152576 and after, no longer available
1шт.
28
K943906
COVER
gearbox, 1212 tractors with serial numbers prior to 11152617, 1212G tractors with serial numbers prior to 11152576, no longer available
1шт.
29
K205303
GASKET
gearbox cover to main frame (Replaces gasket K922555)
2шт.
30
K600829
BOLT
hex, 1/2 NC x 6-3/4 inch, gearbox cover to main frame, four used with 1210Q, 1210Sk and 1210Q four-wheel drive tractors; two used with all other models
1шт.
413-888
BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5
hex, 1/2 NC x 5-1/2 inch, gearbox cover to main frame, four used with 1212Q and 1212Sk tractors; six used with 1212 and 1212G tractors (Replaces bolt K600824)
1шт.
413-880
BOLT,Hex, 1/2" - 13 x 5", Gr 5
hex, 1/2 NC x 5 inch, gearbox cover to main frame, used with 1212Q, 1212Sk and 1212G tractors (Replaces bolt K600822)
2шт.
13-876
BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5
Gearbox cover to main frame, used with 1212 and 1212G tractors (Replaces bolt K600821) Hex, 1/2"-13 x 4 3/4", G5
2шт.
413-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
hex, 1/2 NC x 4 inch, gearbox cover to main frame, used with 1212Q and 1212Sk tractors (Replaces bolt K600818)
2шт.
413-860
BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5
Gearbox cover to main frame, two used with 1210Q, 1210Sk, 1212Q, 1212Sk and 1210Q four-wheel drive tractors; four used with 1212 and 1210 four-wheel drive tractors Hex, 1/2"-13 x 3 3/4", G5
1шт.
31
413-856
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
hex, 1/2 NC x 3-1/2 inch, gearbox cover to main frame, two used with 1212Q and 1212Sk tractors; ten used with 1210Q, 1210Sk and 1210Q four-wheel drive tractors; twelve used with 1210, 1210G, 1210 four-wheel drive and 1210G four-wheel drive tractors
1шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Gearbox cover to main frame, ten used with 1210, 1210G and 1210G four-wheel drive tractors; fourteen used with 1212, 1212Q, 1212Sk, 1212G and 1210G four-wheel drive tractors; sixteen used with 1210Q, 1210Sk and 1210Q four-wheel drive t 1/2"
1шт.
K14582
WASHER
sealing, 1/2 inch, gearbox cover to main frame, used with 1210, 1210 four-wheel drive, 1210G and 1210G four-wheel drive tractors
4шт.
32
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, gearbox cover to clutch housing, 1/2 NC x 2-1/2 inch
4шт.
K626890
WASHER
special, gearbox cover to clutch housing, 1/2 inch, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors
2шт.
K626686
WASHER
flat, gearbox cover to clutch housing, 1/2 inch, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors (Replaces washer K19474)
2шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Gearbox cover to clutch housing, two used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors; four used with 1210Q four-wheel drive, 1210Q, 1210Sk, 1212Q and 1212Sk tractors (Replaces washer K19484 1/2"
1шт.
33
K205305
WEDGE
gearbox cover to clutch housing (Replaces wedge K915674)
1шт.
34
K205306
SHIM,.040" Thk
Gearbox cover to clutch housing (Replaces shim K915720) .040" Thk
1шт.
35
K19578
PLUG
taper, gearbox cover, 3/4 BSP, used with 1212, 1212Q, 1212Sk and 1212G tractors, no longer available
1шт.
36
K12362
PLUG
taper, 1 inch BSP, oil filler, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors
1шт.
37
K950755
COVER
control valve, used with 1212Q, 1212Sk and 1212G tractors, no longer available
1шт.
38
K950698
GASKET
cover to gearbox cover, 1212Q, 1212Sk and 1212G tractors
1шт.
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
Cover to gearbox cover, Used with 1212Q, 1212Sk and 1212G tractors (Replaces bolt K603108) Hex, 1/2"-13 x 1 1/2", G5, Full Thd
2шт.
K600840
BOLT
hex, cover to gearbox cover, 1/2 NC x 10-1/4 inch, used with 1212Q, 1212Sk and 1212G tractors, no longer available
1шт.
113-2257
BOLT,Hex, 1/2" - 13 x 8-3/4", Gr 5
hex, cover to gearbox cover, 1/2 NC x 8-3/4 inch, used with 1212Q, 1212Sk and 1212G tractors (Replaces bolt K600834)
1шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Cover to gearbox cover, used with 1212Q, 1212Sk and 1212G tractors (Replaces washer K19484) 1/2"
4шт.
39
K947616
DIPSTICK
transmission sump, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors, no longer available
1шт.
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
-013, 70 Duro, .426" ID x .070" Thk, Used with 1212Q, 1212Sk and 1212G tractors (Replaces O-ring K24701)
1шт.
41
K942348
SLEEVE
dipstick, used with 1212Q, 1212Sk and 1212G tractors
1шт.
42
K623831
PLUG
band stop, 1 inch BSP, used with 1212 and 1212G tractors
1шт.
Выбрано товаров: 110
