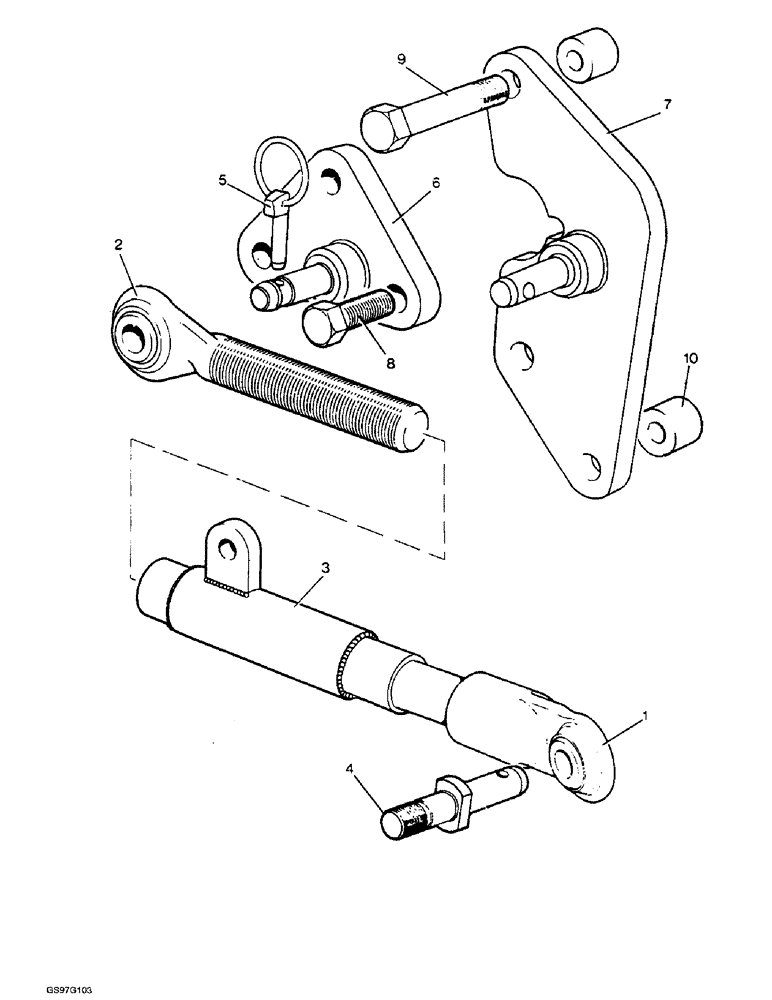

Запчасти Case IH 1210 (9-012) - LINKAGE STABILIZERS, TELESCOPIC, 1210G, 1210G FOUR-WHEEL DRIVE AND 1212G TRACTORS (09) - CHASSIS/ATTACHMENTS

K925752

SPARE PART

STABILIZER ASSEMBLY linkage, used with 1210G and 1212G tractors, no longer available, Includes: Ref. 1 - 3

1шт.

K931967

SPARE PART

STABILIZER ASSEMBLY linkage, used with 1210G four-wheel drive tractors, no longer available, Includes: Ref. 1 - 3

1шт.

K914997

STABILIZER

ASSEMBLY telescopic, no longer available, Includes: Ref. 1 - 3

2шт.

1

K914948

HOUSING ball, rear, no longer available

1шт.

2

K914993

END

HOUSING ball, front

1шт.

3

K914996

TUBE housing, no longer available

1шт.

4

K907008

PIN

lower link

2шт.

492-11075

LOCK WASHER,3/4"

(Replaces washer K19486) 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

(Replaces nut K607049) 3/4"-10, G5

2шт.

5

A33509

PIN,11.18mm OD

linch (Replaces pin K920359)

4шт.

6

K922664

PLATE

BRACKET stabilizer, used with stabilizer assembly K925752

2шт.

7

K948478

STABILIZER

BRACKET left-hand, used with stabilizer assembly K931967

1шт.

K948477

STABILIZER

BRACKET right-hand, used with stabilizer assembly K931967, no longer available

1шт.

8

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

hex, 5/8 NC x 1-3/8 inch, Used with stabilizer assembly K925752 (Replaces screw K603305)

6шт.

9

B90209

SCREW

BOLT hex, 5/8 NC x 3-1/4 inch, used with stabilizer assembly K931967 (Replaces bolt K601213)

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

6шт.

10

K627101

BUSHING

SPACER, 1-9/16 inch, used with stabilizer assembly K931967

4шт.

K627100

BUSHING

SPACER, 1-3/32 inch, used with stabilizer assembly K931967

2шт.

K919616

BUSHING

SPACER, used if check chain anchor is not fitted, 1210G and 1212G tractors, no longer available

2шт.

K919680

SPACER, used if check chains are not fitted, 1210G and 1212G tractors

2шт.
