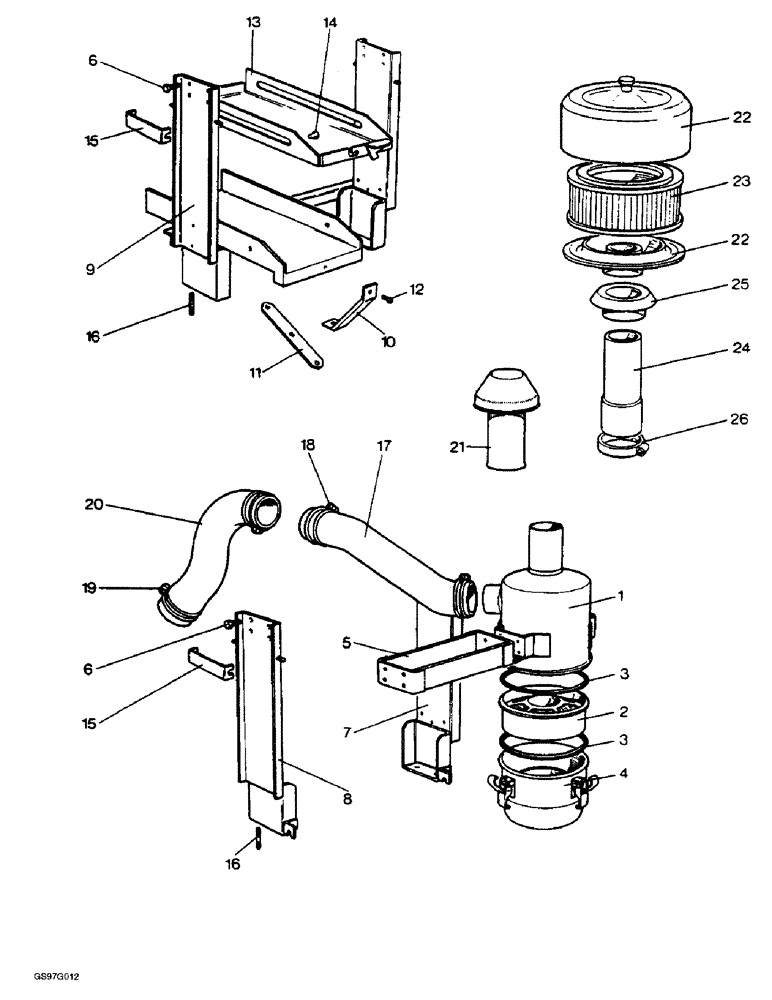

Запчасти Case IH 1210 (2-04) - AIR CLEANER, PIPES AND SUPPORTS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
K918866
CLEANER
ASSEMBLY air (Replaces cleaner assembly K918833), Includes: Ref. 2 - 4
1шт.
2
K918842
AIR FILTER
lower
1шт.
3
K962639
SEALING RING
RING sealing
2шт.
4
K210352
COVER
BOWL includes toggle clips (Replaces bowl K916318)
1шт.
5
K917660
BRACKET
spacer
1шт.
6
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
(Replaces bolt K602701) Hex, 1/4"-20 x 1/2", G5, Full Thd
12шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, (Replaces washer K19480) 1/4"
12шт.
425-104
NUT,1/4"-20, Cl 5
(Replaces nut K607000) 1/4"-20, G5
4шт.
7
K950518
SUPPORT
BRACKET, left-hand, with single hydraulic pump, no longer available
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
7
K950690
BALL KNOB
BRACKET support, left-hand, with single hydraulic pump, no longer available
1шт.
Used with 1210G and 1212G tractors.
1шт.
8
K950519
SUPPORT
BRACKET, right-hand, with single hydraulic pump, no longer available
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
8
K950691
SEAL
BRACKET support, right-hand, with single hydraulic pump, no longer available
1шт.
Used with 1210G and 1212G tractors.
1шт.
9
K917658
SUPPORT
BRACKET, with tandem hydraulic pump
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
10
K920955
STAY
STRUT support bracket, with tandem hydraulic pump
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
11
K949983
STAY
SUPPORT strut, with tandem hydraulic pump
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
12
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
with tandem hydraulic pump (Replaces screw K602902) Hex, 3/8"-16 x 3/4", G5, Full Thd
2шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
K19472
WASHER
flat, 3/8 inch, with tandem hydraulic pump
2шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
492-11038
LOCK WASHER,3/8"
with tandem hydraulic pump 3/8"
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
280136
NUT,3/8"-16, G8
with tandem hydraulic pump 3/8"-16, G8
2шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
13
K918883
COVER
TRAY battery
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
14
K917661
PIN
pivot, 3/8 inch NC
2шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
492-11038
LOCK WASHER,3/8"
2шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
425-106
NUT,3/8"-16, Cl 5
(Replaces nut K607045) 3/8"-16, G5
2шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
15
K920878
SUPPORT
BRACKET side, no longer available
2шт.
K626310
WASHER
flat, 3/16 inch, no longer used
4шт.
225-14108
NUT,#8-32
hex, No. 8 NC (Replaces nut K607040)
4шт.
16
K608212
STUD
3/8 NC x 1-1/8 inch
4шт.
492-11038
LOCK WASHER,3/8"
3шт.
493-41039
LOCK WASHER,Ext Tooth, 3/8"
WASHER, LOCK, (Replaces washer K11522) Ext Tooth, 3/8"
1шт.
280136
NUT,3/8"-16, G8
4шт.
17
K921980
LARGE HOSE
PIPE air, Serial Range: cleaner-radiator
1шт.
18
214-1444
HOSE CLAMP,58.6mm - 82.5mm
CLAMP, HOSE, , Adjustable #44, 2.31/3.25 Type F Worm
2шт.
19
214-1448
HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm
adjustable, 2-9/16 - 3-1/2 inch diameter
2шт.
20
K921973
RADIATOR HOSE
, Serial Range: Radiator-Manifold
1шт.
21
K918869
CLEANER
PRE-CLEANER air (Replaces pre-cleaner K918834)
1шт.
K116100
PRESCREENER
ELEMENT ASSEMBLY paper, pre-cleaner (Replaces element K918599), Includes: Ref. 22 - 26
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
22
K924272
PRECLEANER
air
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
23
K922630
AIR FILTER
paper
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
24
K924273
PIPE
inlet, 7-1/2 inch (191 mm) long (Replaces pipe K921552)
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
25
K919721
PIPE
SLEEVE rubber
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
26
214-1444
HOSE CLAMP,58.6mm - 82.5mm
CLAMP, HOSE, , Adjustable (Replaces clamp K12755) #44, 2.31/3.25 Type F Worm
1шт.
Used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors.
1шт.
Выбрано товаров: 62
