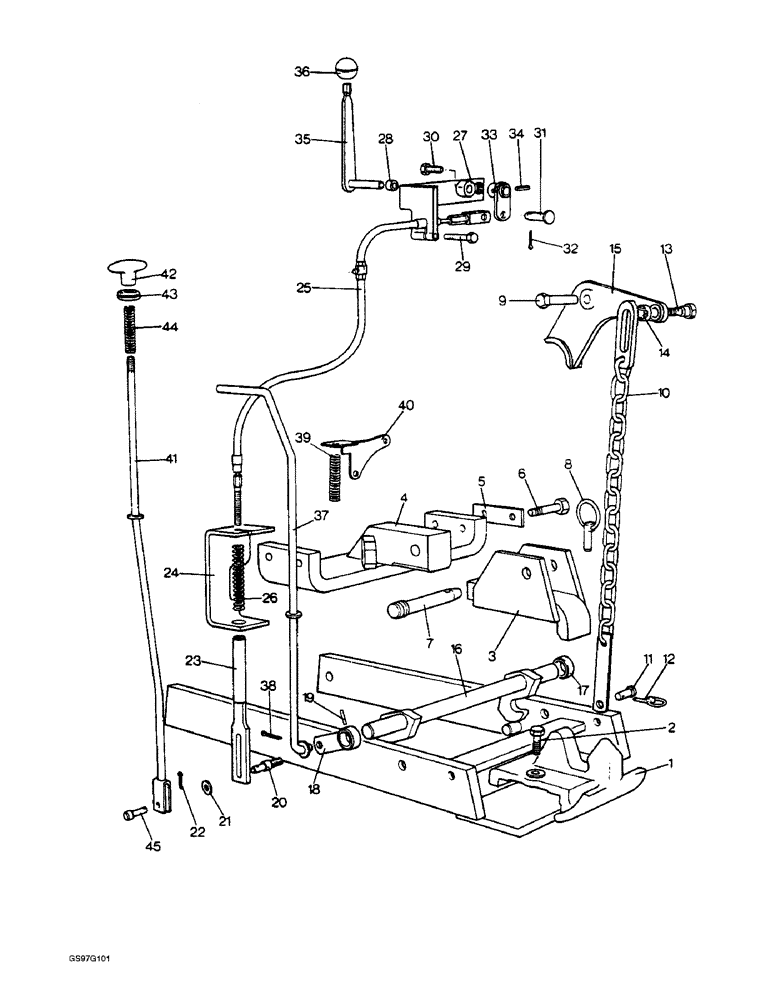

Запчасти Case IH 1210 (9-006) - PICK-UP HITCH, TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

K932776

HITCH pick-up, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

K932771

HITCH pick-up, used with 1210, 1212, 1210G and 1212G tractors, no longer available

1шт.

K932778

HITCH pick-up, used with 1210Q four-wheel drive tractors, no longer available

1шт.

K932773

HITCH pick-up, used with 1210 four-wheel drive tractors, no longer available

1шт.

1

K940590

HOOK

towing, no longer available

1шт.

2

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hook to drawbar frame (Replaces bolt K601208) Hex, 5/8"-11 x 2 1/2", G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Hook to drawbar frame (Replaces washer K19485) 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut K607006) 5/8"-11, G5

2шт.

3

K947179

STOP

towing hook, no longer available

1шт.

4

K947176

PLATE

bridge

1шт.

5

K947200

SHIM

bridge plates to hitch plates, 1/16 inch

1шт.

5

K947201

SHIM

bridge plates to hitch plates, 1/32 inch

1шт.

6

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Bridge plates to hitch plates (Replaces bolt K601208) Hex, 5/8"-11 x 2 1/2", G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bridge plates to hitch plates (Replaces washer K19485) 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut K607006) 5/8"-11, G5

4шт.

7

K919725

PIN,19.05mm OD x 111.13mm L

link

1шт.

8

K210316

LINCH PIN

linch (Replaces pin K66408)

1шт.

9

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch (Replaces bolt K601462)

2шт.

425-1012

NUT,3/4"-10, G5

(Replaces nut K607049) 3/4"-10, G5

2шт.

10

K947183

CHAIN (AG)

lift, used with all tractors except four-wheel drive, no longer available

2шт.

10

K954574

CHAIN (AG)

lift, used with four-wheel drive tractors, no longer available

2шт.

11

K909503

PIN

lift chain

2шт.

12

A33509

PIN,11.18mm OD

linch, lift chain (Replaces pin K920359)

2шт.

13

K942612

PIN

pivot, 5/8 inch NC

2шт.

14

K942611

WASHER

serrated, 5/8 inch

2шт.

K19475

WASHER

flat, 5/8 inch

2шт.

K607331

NUT

hex, self-locking, 5/8 inch NC

2шт.

15

K953068

ARM

lift, in pairs, no longer available

2шт.

16

K940094

LATCH

towing hook

1шт.

17

K940098

COLLAR

latch, no longer available

1шт.

18

K940097

LEVER

latch

1шт.

19

K690732

SPRING

PIN roll, 3/16 x 3/4 inch

1шт.

20

K953533

PIN

3/8 inch, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

21

K19472

WASHER

flat, 3/8 inch, tractor serial number 11158600 and after

2шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

PIN cotter, 3/32 x 3/4 inch (Replaces pin K19528)

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

23

K953186

LATCH

ROD, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

24

K953190

BRACKET

anchor, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

25

K953170

CABLE

inner and outer, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

lock, 5/16 inch NF

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

26

K625296

SPRING

return, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

27

K952255

BRACKET

pivot, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

28

K628759

BUSHING

pivot bracket

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

29

K600154

BOLT

special, 1/4 NC x 1-3/4 inch

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

30

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, 5/16 NC x 3/4 inch, bracket to cab

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to cab 5/16"

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

31

K625941

PIN

clevis, 5/16 x 7/8 inch

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

K626682

WASHER

flat, 5/16 inch

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

32

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Replaces pin K19528) 3/32" x 3/4"

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

33

K952260

LEVER

operating

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

34

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, (Replaces pin K623740) 3/16" x 7/8", Slotted

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

35

K952515

LEVER

hand, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

36

K950493

KNOB

hand lever

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after.

1шт.

37

K948345

ROD

release, used with 1210, 1212, 1210G and 1212G tractors, no longer available

1шт.

37

K954950

PIPE

ROD release, used with 1210Q four-wheel drive tractors with serial number 11158600 and after

1шт.

37

K954470

ROD

release, used with 1210 four-wheel drive tractors, no longer available

1шт.

K19472

WASHER

flat, 3/8 inch, used with 1210, 1212, 1210G, 1212G, 1210Q four-wheel drive and 1210 four-wheel drive tractors

1шт.

38

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Used with 1210, 1212, 1210G, 1212G, 1210Q four-wheel drive and 1210 four-wheel drive tractors 1/8" x 3/4"

1шт.

39

K625251

SPRING

return, used with 1210, 1212, 1210G, 1212G, 1210Q four-wheel drive and 1210 four-wheel drive tractors, no longer available

1шт.

40

K949586

SHIM

GUIDE release rod, used with 1210, 1212, 1210G, 1212G and 1210 four-wheel drive tractors, no longer available

1шт.

41

K955949

ROD

release, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11158600 and after

1шт.

41

K955946

ROD

release, used with 1210Q four-wheel drive tractors with serial number 11158600 and after, no longer available

1шт.

42

K950493

KNOB

release rod,used with 1210Q four-wheel drive tractors with serial number 11158600 and after (Replaces knob K955948)

1шт.

280136

NUT,3/8"-16, G8

Used with 1210Q, 1212Q, 1210Sk, 1212Sk and 1210Q four-wheel drive tractors with S/N 11158600 and after 3/8"-16, G8

1шт.

43

K627729

GROMMET

used with 1210Q, 1212Q, 1210Sk, 1212Sk and 1210Q four-wheel drive tractors with serial number 11158600 and after

1шт.

K626884

WASHER

special, 3/8 inch, used with 1210Q, 1212Q, 1210Sk, 1212Sk and 1210Q four-wheel drive tractors with serial number 11158600 and after, no longer available

1шт.

44

K625251

SPRING

return, used with 1210Q, 1212Q, 1210Sk, 1212Sk and 1210Q four-wheel drive tractors with serial number 11158600 and after

1шт.

45

K955947

PIN

clevis, 3/8 x 1 inch, used with 1210Q, 1212Q, 1210Sk, 1212Sk and 1210Q four-wheel drive tractors with serial number 11158600 and after, no longer available

1шт.
