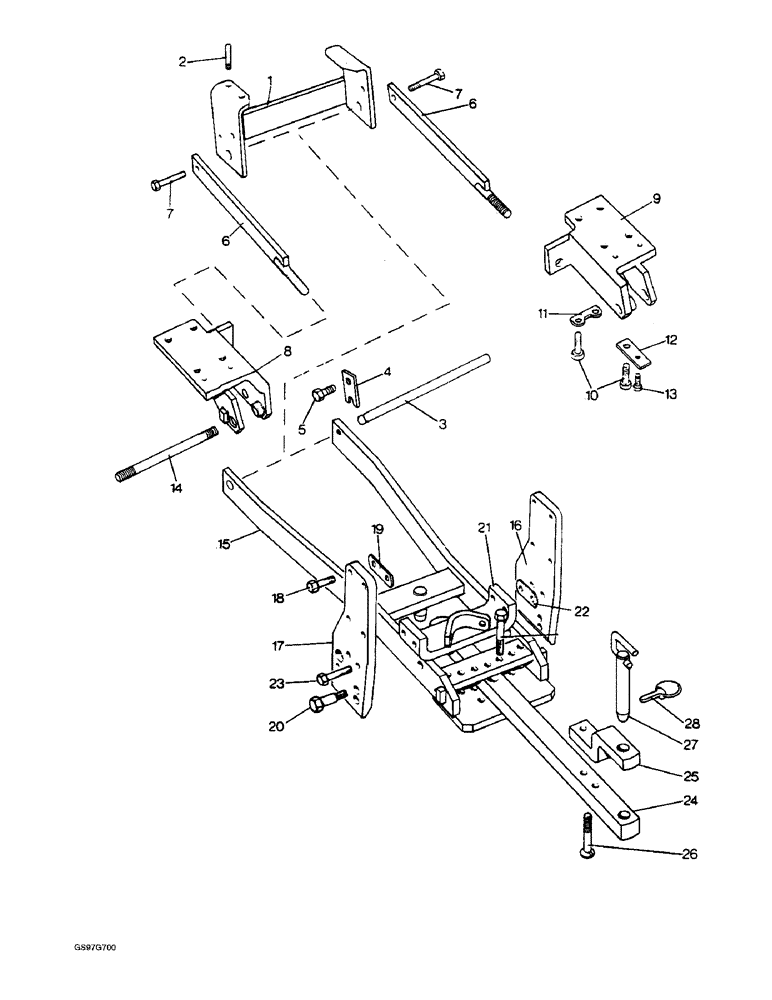

Запчасти Case IH 1210 (9-004) - DRAWBAR AND SUPPORT FRAME, 1210, 1210G, 1210Q AND 1210SK 4WD TRACTORS WITH S/N 11158038 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

K954425

SUPPORT

BRACKET hinge, no longer available

1шт.

2

K608610

STUD

5/8 NC x 2-1/2 inch

4шт.

232-14110

LOCK NUT,5/8"-11, GC

NUT, LOCK, (Replaces nut K607306) 5/8"-11, GC

4шт.

3

K943026

HINGE

BAR

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

4

K943027

PLATE

retaining

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch (Replaces bolt K600475)

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

6

K954432

BRAKE

STRUT hinge bracket, no longer available

2шт.

425-1116

NUT,1"-14, G5

hex, 1 inch NF (Replaces nut K616989)

2шт.

7

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(Replaces bolt K601465) Hex, 3/4"-10 x 2 1/4", G5

2шт.

K607446

NUT

hex, 3/4 inch NC

2шт.

8

K954556

BRACKET

hitch, left-hand, no longer available

1шт.

9

K954557

HITCH ASSY

BRACKET, right-hand, no longer available

1шт.

10

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch, eight used with 1210G four-wheel drive tractors, six used with all other models (Replaces bolt K601410)

1шт.

10

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

hex, 3/4 NC x 3-1/4 inch (Replaces bolt K601411)

2шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

11

K913121

WASHER

tab

2шт.

12

K954562

WASHER

tab, no longer available

2шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch (Replaces screw K602906)

4шт.

K607442

NUT

hex, self-locking, 3/8 inch NC, no longer available

4шт.

14

K954435

STAY

cross, no longer available

1шт.

425-1116

NUT,1"-14, G5

hex, 1 inch NF (Replaces nut K616989)

1шт.

15

K947168

SUPPORT

drawbar

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

16

K956119

HITCH ASSY

PLATE, right-hand, no longer available

1шт.

17

K956120

HITCH ASSY

PLATE, left-hand, no longer available

1шт.

18

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch, hitch plates to PTO (Replaces screw K603308)

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Hitch plates to PTO (Replaces washer K19485) 5/8"

8шт.

19

K917071

SHIM

hitch plates to PTO, 1/16 inch

1шт.

19

K917072

SHIM

hitch plates to PTO, 1/32 inch

1шт.

20

K908290

STEP BOLT

special, 3/4 NC

2шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

425-1012

NUT,3/4"-10, G5

(Replaces nut K607049) 3/4"-10, G5

2шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

21

K947174

PLATE

bridge, without pick-up hitch, no longer available

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

21

K947176

PLATE

bridge, with pick-up hitch, no longer available

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

22

K947200

SHIM

1/16 inch

1шт.

22

K947201

SHIM

1/32 inch

1шт.

23

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Replaces bolt K601208) Hex, 5/8"-11 x 2 1/2", G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut K607006) 5/8"-11, G5

4шт.

24

K948406

DRAWBAR, SWINGING

reversible shaft PTO

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

25

K916516

CLEVIS

BRACKET

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

26

K601664

BOLT

special, 5/8 NC x 3-1/2 inch (Replaces bolt K601664)

2шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

K607463

NUT

hex, 5/8 inch NC

2шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

27

K916566

PIN

hitch (Replaces pin K946789)

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.

28

A33509

PIN,11.18mm OD

linch (Replaces pin K920359)

1шт.

Used with 1210, 1210Q and 1210Sk four-wheel drive tractors.

1шт.
