Запчасти Case IH 1210 (8-66) - PIPES AND COUPLINGS, LIVE TAKE-OFF VALVES (08) - HYDRAULICS

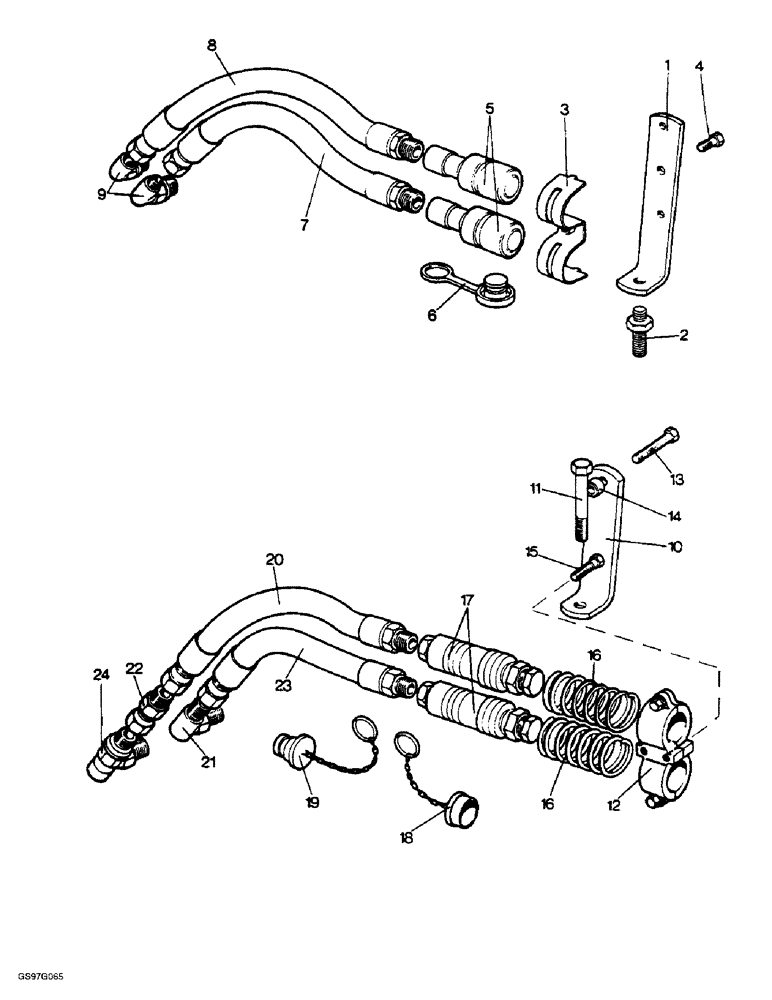

Схема запчастей Case IH 1210 - (8-66) - PIPES AND COUPLINGS, LIVE TAKE-OFF VALVES (08) - HYDRAULICS
12
4
14
24
5
15
20
8
11
6
19
3
16
17
22
16
7
13
18
23
2
10
21
1

Артикул

Название

Примечание

Количество

K180000

KIT

pipes and Bruning couplings for single valve (Replaces kit K931464), Includes: Ref. 1 - 9 and O-ring

1шт.

1

K204685

BRACKET

support (Replaces bracket K949670)

1шт.

2

K608424

STUD

special, 1/2 NC x 4-3/16 inch (Replaces stud K608411)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, (Replaces nut K607047) 1/2"-13, G5

1шт.

3

K949616

CLIP

CLAMP hose

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Clamp to bracket (Replaces setscrew K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

K19472

WASHER

lock, 3/8 inch

1шт.

5

A141156

COUPLING, BREAK AWAY

Bruning quick-release (Replaces coupling K948595)

2шт.

6

K950297

PLUG

CAP dust, coupling (Replaces cap K948612)

2шт.

7

K949705

HOSE

16-7/8 x 3/4 NF x 7/8 NF

1шт.

8

K949706

HOSE

14-3/8 x 3/4 NF x 7/8 NF

1шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adjustable O-ring boss (Replaces elbow K622114), Includes: O-ring

2шт.

K931298

KIT

pipes and Pioneer couplings for single valve, no longer available, Includes: Ref. 10 - 24

1шт.

10

K948158

VALVE

BRACKET support, no longer available

1шт.

11

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

hex, 1/2 NC x 3-1/2 inch, bracket to sensing unit (Replaces bolt K600896)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

1шт.

12

K945833

CLAMP

hose, no longer available

1шт.

13

K602853

SCREW

set, clamp to bracket, 5/16 NC x 2-1/4 inch

1шт.

K626682

WASHER

flat, clamp to bracket, 5/16 inch

1шт.

14

K627037

BUSHING

SPACER clamp to bracket, no longer available

1шт.

425-105

NUT,5/16"-18, G5

- hex, clamp to bracket, 5/16 inch NC (Replaces nut K607044)

1шт.

15

K602854

SCREW

set, clamp to bracket, no longer available, 5/16 NC x 1-3/8 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , clamp to bracket 5/16"

1шт.

16

K625286

SPRING

coupling, no longer available

2шт.

K626920

WASHER

special, no longer available

2шт.

17

K945832

COUPLING, BREAK AWAY

tractor half, Pioneer No. 7000-4-3, no longer available

2шт.

18

E71034

CAP dust (Replaces dust cap K945834)

2шт.

19

E71033

PLUG dust (Replaces plug K945835)

2шт.

20

K945839

HOSE

3/8 inch ID x 18 inch (457 mm) long x 3/8 NPT, no longer available

1шт.

21

K945837

FITTING

ELBOW, 90 degree, 3/8 NPT

1шт.

22

K945838

FITTING

UNION straight, 3/4 NF x 3/8 NPT

1шт.

23

K945840

HOSE

3/8 inch ID x 15 inch (371 mm) long x 3/8 NPT, no longer available

1шт.

24

K945836

FITTING

ELBOW, 90 degree, 3/4 NF x 3/8 NPT

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 ID x 3/32 inch wide (Replaces O-ring K623591)

2шт.

Выбрано товаров: 35
