Запчасти Case IH 1210 (8-62) - TWIN LIVE TAKE-OFF VALVES (08) - HYDRAULICS

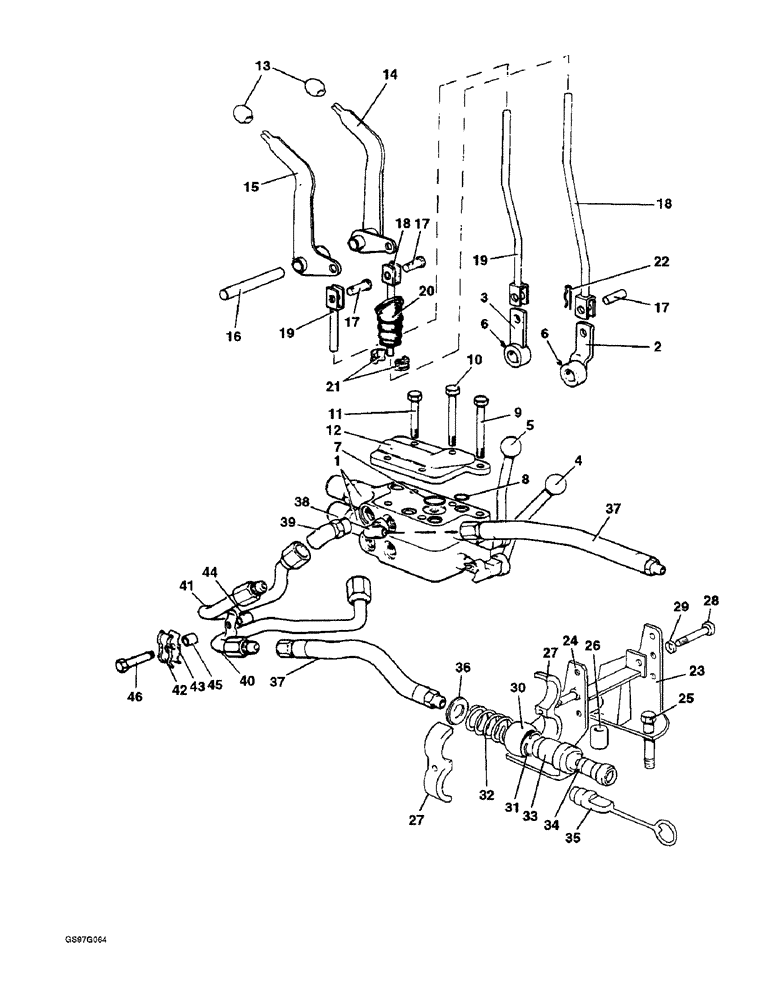

Схема запчастей Case IH 1210 - (8-62) - TWIN LIVE TAKE-OFF VALVES (08) - HYDRAULICS
26
1
19
8
13
24
38
17
2
18
42
28
40
27
36
6
35
22
20
46
25
17
3
23
39
19
32
7
4
15
44
17
37
11
16
6
37
10
45
5
41
29
21
18
31
43
12
9
30
27
34
33
14

Артикул

Название

Примечание

Количество

K964530

CYLINDER

CONTROL ASSEMBLY valve and hand, single pump, no longer available, Includes: Control's

1шт.

K931866

SPARE PART

CONTROL hand, single pump, no longer available

1шт.

K964528

CONTROL VALVE

CONTROL ASSEMBLY valve and hand, tandem pump, no longer available

1шт.

K931871

SPARE PART

CONTROL hand, tandem pump, no longer available

1шт.

K918184

SPARE PART

VALVE twin live take-off, used with 1210, 1212, 1210G and 1212G tractors

1шт.

K140000

KIT pipes and couplings for twin valve (Replaces kit K930231)

1шт.

1

K956421

VALVE

ASSEMBLY take-off, parts list Figure 8-58

2шт.

2

K950851

LEVER

cranked

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

3

K950854

LEVER

straight

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

4

K946382

LEVER

hand, cranked, used with 1210, 1212, 1210G and 1212G tractors

1шт.

5

K946383

LEVER

hand, straight, used with 1210, 1212, 1210G and 1212G tractors

1шт.

126-6

WOODRUFF KEY,# 213, 1/8" x 3/8"

(No. 403) (Replaces key K622382) # 213, 1/8" x 3/8"

2шт.

6

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

set, hex socket, 5/16 x 3/8 inch (Replaces screw K606322)

2шт.

7

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16 inch ID

2шт.

8

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

10шт.

9

413-5108

BOLT hex, single pump, 3/8 NC x 6-3/4 inch (Replaces bolt K600519)

2шт.

9

413-6116

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

hex, tandem pump, 3/8 NC x 7-1/4 inch (Replaces bolt K600520)

2шт.

10

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

hex, tandem pump, 3/8 NC x 7-3/4 inch (Replaces bolt K600520)

1шт.

10

413-6116

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

hex, single pump, 3/8 NC x 7-1/4 inch (Replaces bolt K600520)

1шт.

11

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch (Replaces bolt K600512)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

6шт.

12

K919242

COVER

control valve

1шт.

13

K950493

KNOB

hand lever

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

14

K200315

LEVER

hand, no longer available (Replaces lever K950762)

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

15

K200317

LEVER

hand, no longer available (Replaces lever K950766)

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

K614021

SET SCREW,#10 - 32 x 1/2"

No. 10 NF x 1/2 inch (Replaces screw K613984)

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

16

K950863

SHAFT

hand lever

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

17

K950866

LARGE PIN

clevis, 1/4 x 13/16 inch

4шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K623605) 1/16" x 1/2"

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

18

K965209

ROD

ASSEMBLY connecting, single pump, no longer available (Replaces rod assembly K951297), Includes: End and Nut

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

18

K965211

ROD

ASSEMBLY connecting, tandem pump, no longer available (Replaces rod assembly K951354), Includes: End and Nut

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

19

K965210

ROD

ASSEMBLY connecting, single pump, no longer available (Replaces rod assembly K951299), Includes: End and Nut

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

19

K965212

ROD

ASSEMBLY connecting, tandem pump, no longer available (Replaces rod assembly K951356), Includes: End and Nut

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

K200300

FORK

END, 5/16 NC, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

B90396

HARDWARE

NUT lock, 5/16 inch NC (Replaces nut K607081)

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

20

K950691

SEAL

GAITER hand lever, no longer available

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

21

K950861

BUSHING

two halves, no longer available

4шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

22

K950865

CLIP

retaining

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

23

K940752

MOUNTING PARTS

BRACKET support, right-hand

1шт.

24

K940573

BRACKET support, left-hand

1шт.

25

K600896

BOLT

hex, 1/2 NC x 3-1/2 inch

4шт.

26

K627074

BUSHING

SPACER distance

2шт.

27

K924286

MOUNTING PARTS

FRAME

4шт.

K626686

WASHER

lock, 1/2 inch (Replaces washer K19474)

1шт.

28

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

hex, 7/16 NC x 3 inch (Replaces bolt K607003)

1шт.

29

K627056

BUSHING

SPACER distance

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K626344) 7/16"

2шт.

280717

NUT,7/16"-14, G5

2шт.

30

K924284

RING

gimbal

4шт.

31

K924285

RING

retaining

4шт.

32

K625249

SPRING

coupling

4шт.

K921216

COUPLING, BREAK AWAY

ASSEMBLY quick-release, Aeroquip B5600/8/10, no longer available, order coupling assembly K200643, coupling K200646 and plug K9217217, Includes: Ref. 33 and 34

4шт.

K200643

COUPLING, BREAK AWAY

ASSEMBLY quick-release, Includes: Ref. 33 and 34

4шт.

33

K929247

BREAKER POINTS

quick-release, tractor half, no longer available, order coupling assembly K200643 and plug K921217

1шт.

34

K200646

COUPLING, BREAK AWAY

quick-release, hose half (Replaces coupling K921982)

1шт.

35

K921217

PLUG

dust, tractor coupling

4шт.

K200645

CAP

dust, hose coupling

2шт.

36

K626794

WASHER

special

4шт.

37

K924710

HOSE

PIPE flexible, 1/2 BSP - 3/4 NF x 16-1/4 inch

4шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adjustable O-ring boss (Replaces elbow K622114)

2шт.

39

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

45 degree, 7/8-14 flare x 3/4-16 inch adjustable O-ring (Replaces elbow K622119)

2шт.

39a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

2шт.

40

K924713

PIPE

lower

1шт.

41

K924712

PIPE

upper

1шт.

42

K916899

BRACKET

CLAMP pipe

2шт.

43

K940758

PACKING

GASKET clamp

2шт.

44

K65701

BUSHING

SPACER distance, 1/2 inch

1шт.

45

K627026

BUSHING

SPACER distance, 1-1/8 inch

1шт.

46

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch (Replaces bolt K600316)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607044)

1шт.

Выбрано товаров: 89
