Запчасти Case IH 1210 (8-58) - LIVE TAKE-OFF VALVE (08) - HYDRAULICS

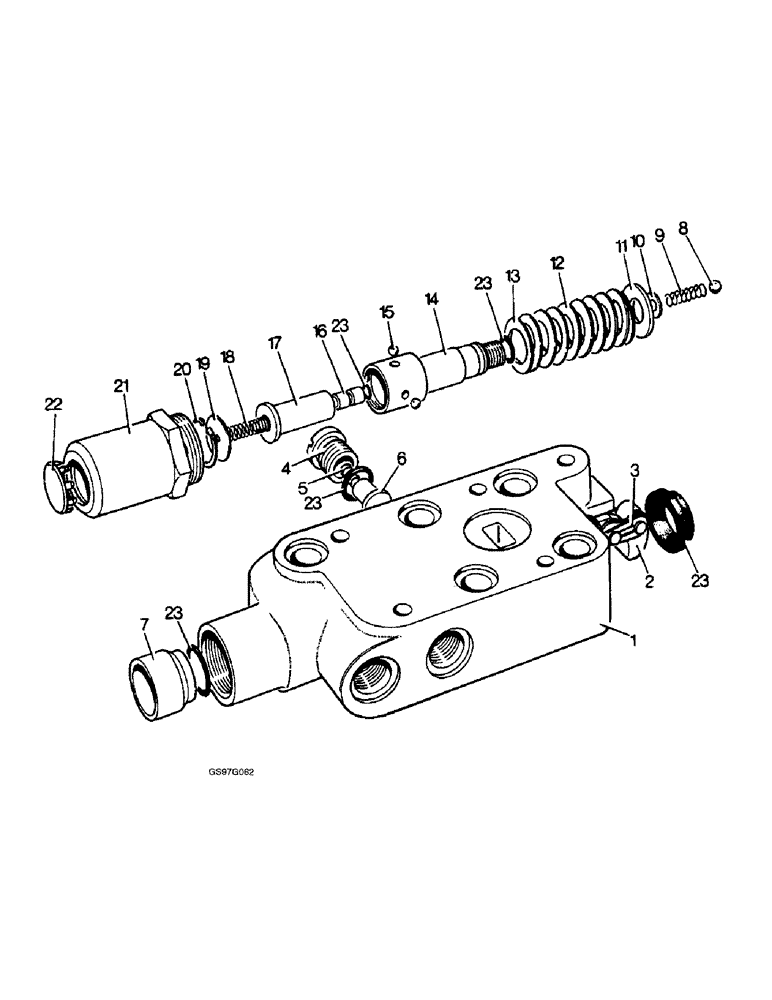

Схема запчастей Case IH 1210 - (8-58) - LIVE TAKE-OFF VALVE (08) - HYDRAULICS
23
19
3
10
23
13
23
15
7
17
23
1
12
8
21
16
2
4
14
22
23
20
5
18
9
11
6

Артикул

Название

Примечание

Количество

K943825

VALVE

ASSEMBLY live take-off, no longer available, order valve K956421 below, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY take-off valve, order valve assembly K943825

1шт.

2

K965796

LEVER

SPINDLE valve (Replaces spindle K965190)

1шт.

2

K963588

LEVER

SPINDLE valve, used with valve assembly K943825

1шт.

3

241-1315

LINK, CONNECTING

spindle to spool, connecting, single pitch, No. 50, t/8 inch pitch (Replaces link K963587)

1шт.

4

FH730382

PLUG

non-return valve (Replaces plug K962065)

1шт.

5

FH730374

SPRING

non-return valve (Replaces spring K962067)

1шт.

6

FH730366

PLUNGER

non-return valve (Replaces plunger K962066)

1шт.

7

K962020

LOCK

BUSHING body

1шт.

8

K965834

VALVE POPPET

PLUNGER detent valve (Replaces plunger K963581)

1шт.

9

K963580

SPRING

detent valve

1шт.

10

K962080

SHIM,.010" Thk

Detent valve .010" Thk

1шт.

10

K962081

SHIM,.005" Thk

Detent valve .005" Thk

1шт.

11

K962082

DISC

WASHER spool centering

1шт.

12

H57067

SPRING

spool centering (Replaces spring K964904)

1шт.

13

K962078

WASHER

spool centering

1шт.

14

K964500

RETAINER

spool detent (Replaces retainer K963581)

1шт.

K964499

PLATE

WASHER orifice, spool detent, used with retainer K964500

1шт.

15

K11483

BALL

steel, no longer available, order items 15 below

3шт.

15

211-204

BALL

chrome alloy steel, 3/16 inch, grade 48

1шт.

15

211-1006

BALL,3/16" Dia

chrome alloy steel, 3/16 inch, grade 24

2шт.

16

K962071

PISTON

detent release

1шт.

17

K963574

PLUNGER

detent release

1шт.

18

K962073

SPRING

detent release

1шт.

19

K962079

WASHER

detent release

1шт.

20

K962076

RING, SNAP

detent release

1шт.

21

K963575

CAP

body

1шт.

22

K962074

PLUG

cap

1шт.

22

K962074

PLUG

cap

1шт.

22

K962074

PLUG

cap

1шт.

23

K962083

GASKET KIT

seal, includes five (5) O-rings and two (2) wiper seals

1шт.

K956421

VALVE

live take-off, not shown

1шт.

Выбрано товаров: 32
