Запчасти Case IH 1210 (8-56) - THREE-WAY SELECTOR VALVE (08) - HYDRAULICS

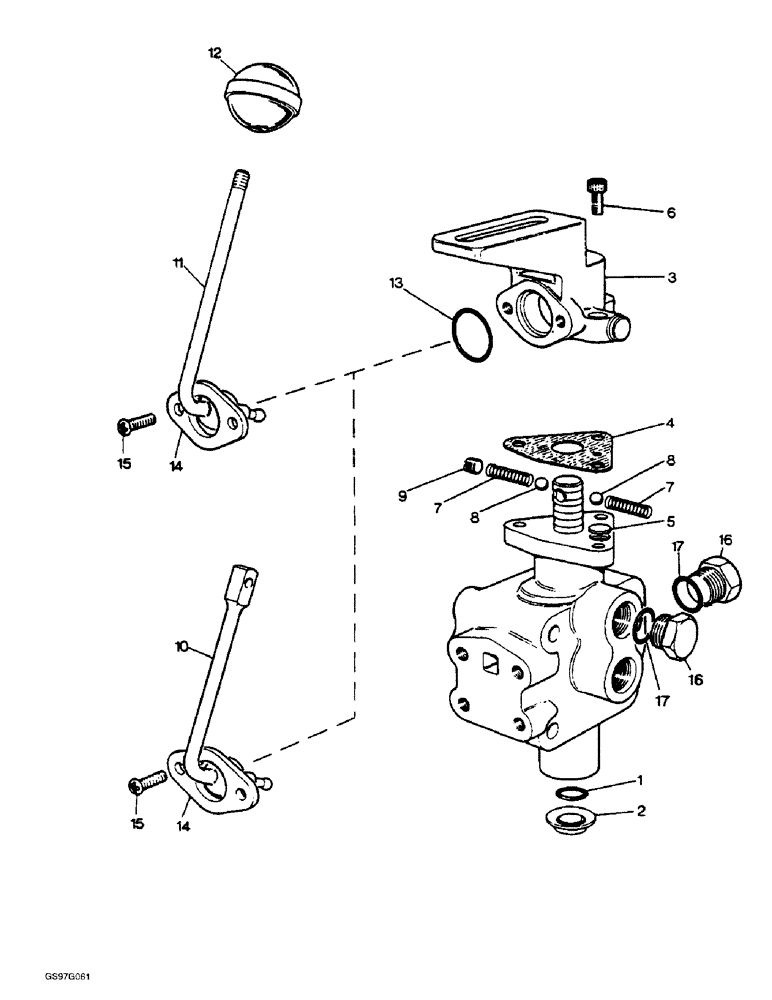

Схема запчастей Case IH 1210 - (8-56) - THREE-WAY SELECTOR VALVE (08) - HYDRAULICS
3
9
13
7
16
6
14
8
12
8
2
14
5
17
7
16
4
15
11
1
17
10
15

Артикул

Название

Примечание

Количество

K951162

SELECTOR

VALVE ASSEMBLY three-way selector, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available, Includes: Ref. 1 - 17

1шт.

K948000

SELECTOR

VALVE ASSEMBLY three-way selector, used with 1210, 1212, 1210G and 1212G tractors, Includes: Ref. 1 - 17

1шт.

1

214389

PLUG,3/4" - 16 ORB

(Replaces breather K919826), Includes Ref. 2 Hex Hd, 3/4"-16 ORB

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

K919611

COVER

selector valve

1шт.

4

K944527

GASKET,0.15mm Thk

valve cover

1шт.

5

K915393

FOAM

PAD

1шт.

6

461-32510

HEX SOC SCREW,1/4"-20 x 5/8"

BOLT hex socket head, 1/4 NC x 5/8 inch (Replaces screw K606501)

3шт.

7

K625208

SPRING

selector valve

2шт.

8

K17063

BALL

steel, 1/4 inch

2шт.

9

81-3314

SET SCREW,5/16"-18 x 1/4", Slotted

slotted headless, 5/16 NC x 1/4 inch, flat point (Replaces plug K606020)

1шт.

10

K949302

LEVER

selector valve, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

11

K919612

LEVER

selector valve, used with 1210, 1212, 1210G and 1212G tractors

1шт.

12

K902270

KNOB

selector valve lever, used with lever K919612

1шт.

13

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

(Replaces O-ring K16351) -214, 70 Duro, .984" ID x .139" Thk

1шт.

14

K919613

SHIM

PLATE selector valve lever

1шт.

15

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw K614924)

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

2шт.

16

214389

PLUG,3/4" - 16 ORB

(Replaces plug K920826), Includes Ref. 17 Hex Hd, 3/4"-16 ORB

2шт.

17

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

(Replaces O-ring K623589) -008, 90 Duro, .176" ID x .070" Thk

2шт.

Выбрано товаров: 20
