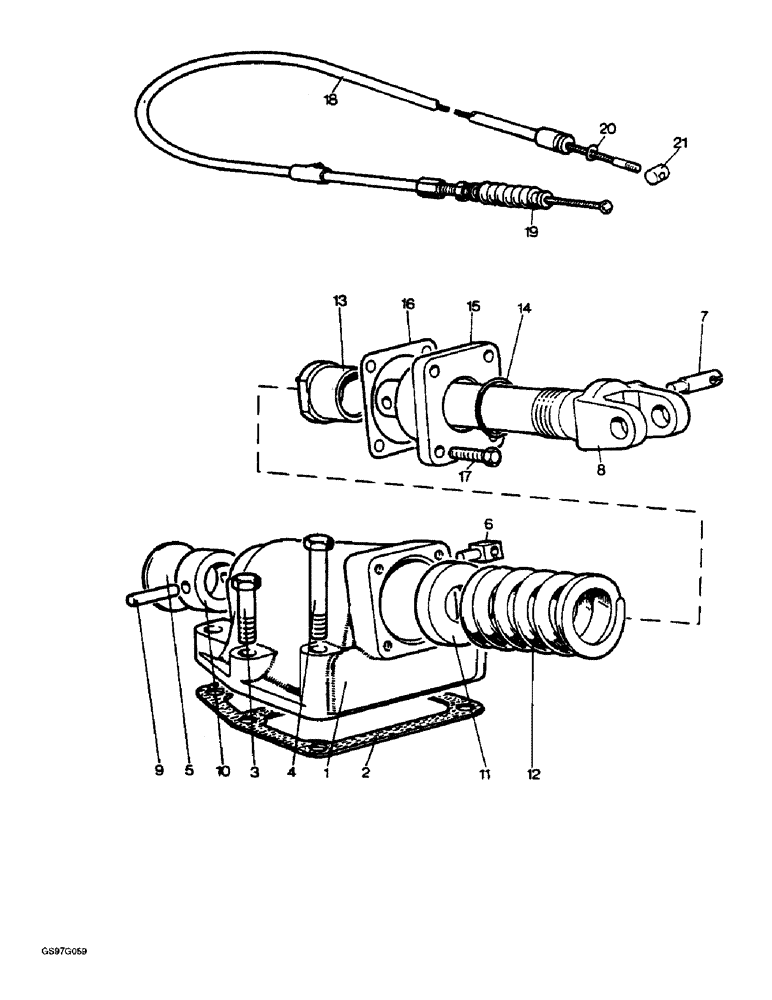

Запчасти Case IH 1210 (8-52) - SINGLE RATE SENSING UNIT, 1210, 1210G AND 1210Q TRACTORS (08) - HYDRAULICS

1

K202576

CASE

HOUSING sensing unit, used with 1210 and 1210Q tractors (Replaces housing K915092)

1шт.

1

K915111

SPRING

HOUSING sensing unit, used with 1210G tractors, no longer available

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Used with 1210 and 1210Q tractors (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch, used with 1210G tractors (Replaces fitting K690973)

1шт.

2

K926451

GASKET,0.56mm Thk

housing

1шт.

3

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

hex, 1/2 NC x 1-7/8 inch (Replaces bolt K600805)

4шт.

4

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, 1/2 NC x 3-1/4 inch (Replaces bolt K600815)

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

6шт.

5

172599

PLUG,Exp, 2 3/8"

expansion, 2-3/8 inch (Replaces plug K623813)

1шт.

6

K912371

CABLE

SUPPORT, outer

1шт.

7

K913852

LARGE PIN

SUPPORT cable, inner

1шт.

8

K919726

SHAFT

sensing

1шт.

9

37-1636

DOWEL,3/8" x 2 1/4"

hardened, 3/8 x 2-1/4 inch (Replaces pin K915117)

1шт.

10

K915266

COLLAR

sensing unit housing

1шт.

11

K915101

WASHER

thrust, 0.375 inch

1шт.

11

K915112

WASHER

thrust, 0.355 inch, no longer available

1шт.

11

K915113

WASHER

thrust, 0.365 inch

1шт.

11

K915114

WASHER

thrust, 0.385 inch, no longer available

1шт.

11

K915115

WASHER

thrust, 0.395 inch, no longer available

1шт.

11

K915116

WASHER

thrust, 0.405 inch

1шт.

12

K915103

SPRING

sensing unit housing

1шт.

13

K915259

SLEEVE

shaft

1шт.

14

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1-7/8 inch ID

1шт.

15

K915261

FLANGE

PLATE end

1шт.

16

K915096

SHIM,.005" Thk

1шт.

16

K915097

SHIM,.010" Thk

1шт.

16

K915098

SHIM,.030" Thk

1шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt K602905) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

18

K928403

CABLE

sensing

1шт.

19

K906182

RUBBER

EXCLUDER dirt

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

20

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

1/4 inch ID

1шт.

21

K915053

FITTING

cylindrical

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

2шт.
