Запчасти Case IH 1210 (8-48) - SELECTIVE SENSING ASSEMBLY (08) - HYDRAULICS

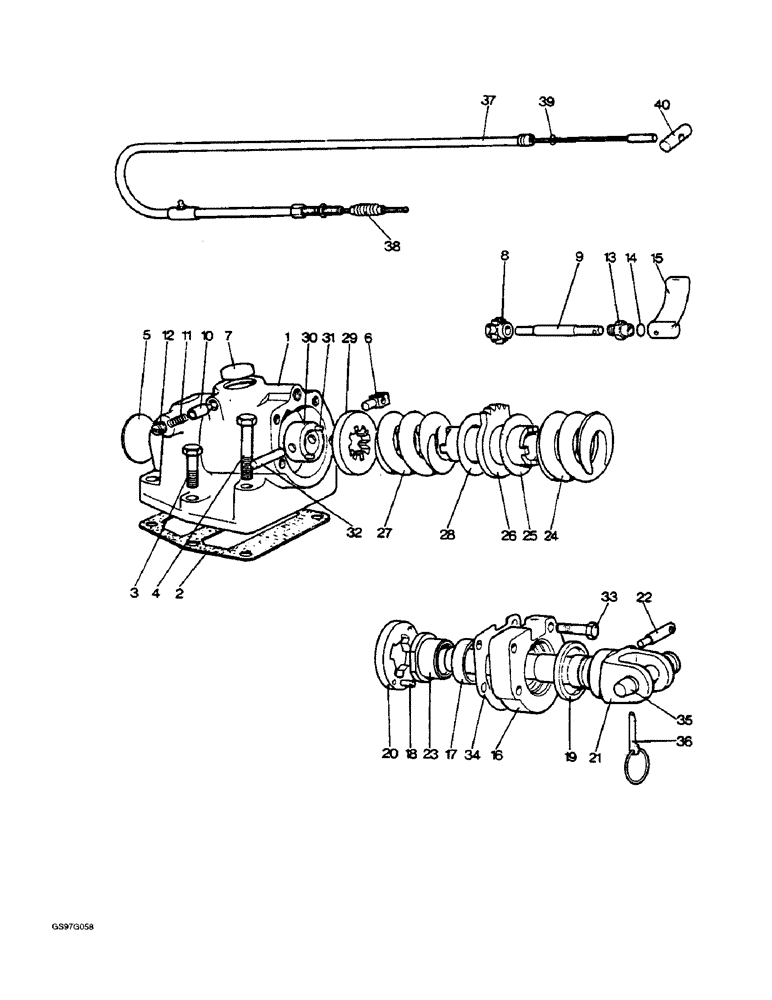

Схема запчастей Case IH 1210 - (8-48) - SELECTIVE SENSING ASSEMBLY (08) - HYDRAULICS
15
3
31
19
26
10
1
25
27
29
24
16
30
13
14
23
37
32
6
4
5
38
35
33
21
11
28
18
17
8
2
22
34
36
39
7
20
9
12
40

Артикул

Название

Примечание

Количество

K196600

SENSING ASSEMBLY selective, used with 1210, 1212, 1210Q, 1212Q, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors (Replaces sensing assembly K930051), Includes: Ref. 1 - 40 and Nut

1шт.

K931328

KIT

SENSING ASSEMBLY selective, used with 1212, 1210G and 1212G tractors, Includes: Ref. 1 - 40 and Nut

1шт.

1

K940028

SPRING

HOUSING sensing, used with K930051 and K196600 assemblies, no longer available, order housing K202577, bolts 113-2441, 326-832 and 326-852

1шт.

1

K948445

SPRING

HOUSING sensing, used with K931328 assembly, no longer available

1шт.

1

K202577

SPRING

HOUSING sensing

1шт.

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

1шт.

2

K926451

GASKET,0.56mm Thk

housing to PTO unit, two used with four-wheel drive tractors, one used with all other models

1шт.

3

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

hex, housing to PTO unit, 1/2 NC x 1-7/8 inch, all tractors except four-wheel drive models

4шт.

3

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

Housing to PTO unit, used with 4WD tractors (Replaces bolt K608828) Hex, 1/2"-13 x 2 1/2", G8

4шт.

4

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, housing to PTO unit, all tractors except four-wheel drive models, 1/2 NC x 3-1/4 inch (Replaces bolt K600815)

2шт.

4

326-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

Housing to PTO unit, used with 4WD tractors (Replaces bolt K608835) Hex, 1/2"-13 x 3 3/4", G8

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

6шт.

5

172599

PLUG,Exp, 2 3/8"

expansion, 2-3/8 inch (Replaces plug K623813)

1шт.

6

K912371

CABLE

SUPPORT, outer

1шт.

7

41-1628

PLUG,Cup, 1 3/4", Stainless

expansion, 1-3/4 inch (Replaces plug K623797)

1шт.

8

K929874

SELECTOR

PINION lever

1шт.

9

K940044

SELECTOR

SPINDLE lever

1шт.

K690338

PIN

roll, 5/32 x 5/8 inch

1шт.

10

K946440

PLUNGER

detent

1шт.

11

K625285

SPRING

detent plunger

1шт.

12

179-481

SCREW hex, 1/2 NC (Replaces screw K606281)

1шт.

13

K940045

BUSHING

threaded, no longer available

1шт.

14

K623681

WIPER

RING, 1/2 inch ID

1шт.

15

K940046

SELECTOR

LEVER

1шт.

435-1514

GROOVED PIN,5/32" x 7/8", Type A

roll, 5/32 x 7/8 inch (Replaces pin K623727)

1шт.

K947303

SHAFT

ASSEMBLY sensing assembly, Includes: Ref. 16 - 32

1шт.

16

K964912

PLATE

ASSEMBLY end, Includes: Ref. 17 - 20

1шт.

17

K621423

BUSHING

end plate

1шт.

18

K940031

PIN

dowel, end plate

2шт.

19

K623460

WIPER

SEAL

1шт.

20

K947302

WASHER

thrust

1шт.

21

K929808

SHAFT

sensing

1шт.

22

K940047

BRACKET

SUPPORT cable, inner

1шт.

23

K940035

SLEEVE

sensing shaft

1шт.

24

K928315

SPRING

2 inch ID

1шт.

25

K928388

SHIM

0.003 inch

1шт.

25

K928389

SHIM

0.007 inch, no longer available, order two (2) of 0.003 inch shim K928388

1шт.

25

K928390

SHIM

0.015 inch, no longer available, order five (5) of 0.003 inch shim K928388

1шт.

26

K940036

SUPPORT

spring

1шт.

27

K928314

SPRING

1-3/4 inch ID

1шт.

28

K928392

SHIM

0.003 inch

1шт.

28

K928393

SHIM

0.007 inch

1шт.

28

K928394

SHIM

0.015 inch

1шт.

29

K940039

WASHER

thrust, 0.373 inch

1шт.

29

K940040

WASHER

thrust, 0.365 inch

1шт.

29

K940041

WASHER

thrust, 0.357 inch

1шт.

30

K947867

COLLAR

includes pins

1шт.

31

K945061

DOWEL

PIN dowel (Replaces pin K940043)

2шт.

32

37-1636

DOWEL,3/8" x 2 1/4"

hardened, 3/8 x 2-1/4 inch (Replaces pin K915117)

1шт.

33

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

hex, end plate to housing, 7/16 NC x 2 inch (Replaces bolt K600606)

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , End plate to housing (Replaces washer K19483) 7/16"

4шт.

34

K940032

SHIM

end plate to housing, 0.005 inch

1шт.

34

K940033

SHIM

end plate to housing, 0.010 inch

1шт.

34

K940034

SHIM

end plate to housing, 0.030 inch, no longer available, order shims K940032 or K940033 as required

1шт.

35

K919725

PIN,19.05mm OD x 111.13mm L

link

1шт.

36

K210316

LINCH PIN

linch (Replaces pin K66408)

1шт.

37

K928403

CABLE

selective sensing

1шт.

38

K906182

RUBBER

EXCLUDER dirt

1шт.

39

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

1/4 inch ID

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

40

K915053

FITTING

cylindrical

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

2шт.

K964984

COLLAR

KIT service, no longer available as a kit, order components

1шт.

Выбрано товаров: 65
