Запчасти Case IH 1210 (8-46) - LEVELING LEVER AND LIFT ROD, 1210, 1210G, 1210Q AND 1210SK FOUR-WHEEL DRIVE TRACTORS (08) - HYDRAULICS

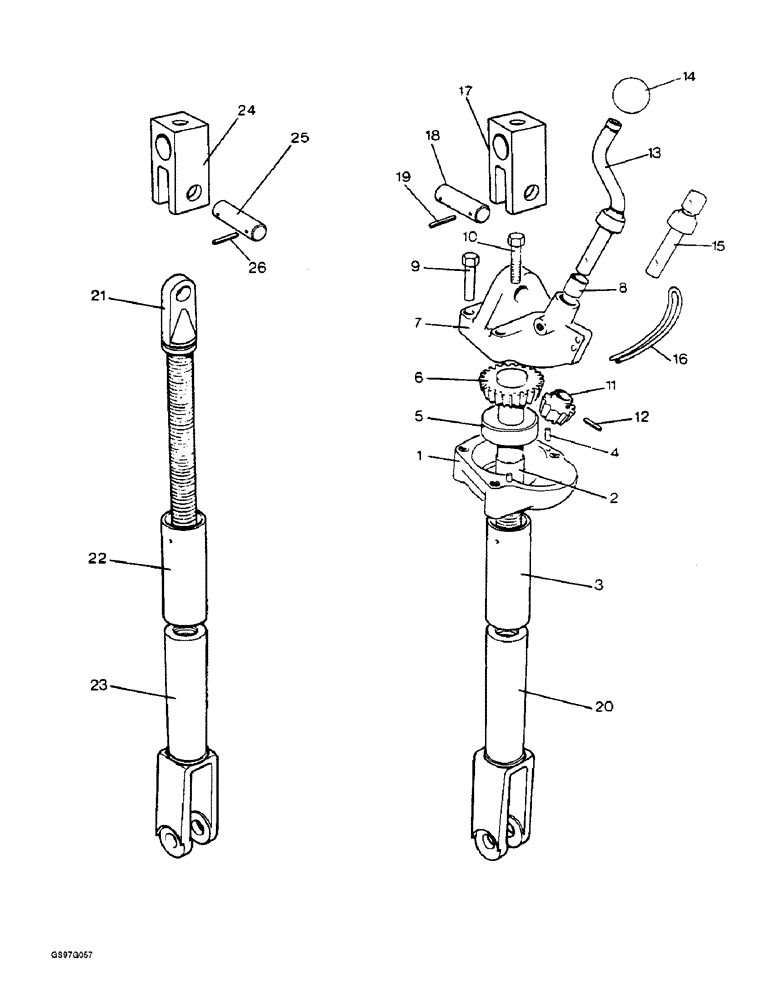

Схема запчастей Case IH 1210 - (8-46) - LEVELING LEVER AND LIFT ROD, 1210, 1210G, 1210Q AND 1210SK FOUR-WHEEL DRIVE TRACTORS (08) - HYDRAULICS
21
7
15
19
23
20
9
12
13
17
5
1
10
22
3
18
8
26
16
14
24
25
6
2
11
4

Артикул

Название

Примечание

Количество

K955055

LEVER

ASSEMBLY leveling, used with 1210Q and 1210Sk four-wheel drive tractors with serial number 11158600 and after, no longer available, Includes: Ref. 1 - 20

1шт.

K954563

LEVER

ASSEMBLY leveling, used with 1210, 1210G and 1210Sk four-wheel drive tractors with serial numbers from 11158058 to 11158600, no longer available, Includes: Ref. 1 - 20

1шт.

K940507

LEVER

ASSEMBLY leveling, used with 1210, 1210G and 1210Sk four-wheel drive tractors with serial numbers prior to 11158038, no longer available as an assembly, order components, Includes: Ref. 2 - 4

1шт.

1

K962975

HOUSING

ASSEMBLY gear

1шт.

2

K621339

BUSHING

gear housing

1шт.

3

K940510

TUBE,1.75" ID x 6.187" L

gear housing, 1-3/4 x 6-3/4 inch

1шт.

4

K32063

PIN

dowel, 3/16 x 1/2 inch

2шт.

5

K19187

THRUST BEARING

thrust

1шт.

6

K924726

SCREW leveling, 1 x 10-1/4 inch, no longer available

1шт.

7

K962691

COVER

CAP ASSEMBLY gear housing, Includes: Ref. 8

1шт.

8

K621340

BUSHING

cap

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch (Replaces bolt K600404)

2шт.

10

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex, 3/8 NC x 1-7/8 inch (Replaces bolt K600407)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

11

K919769

GEAR

PINION bevel

1шт.

12

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, (Replaces pin K623741) 5/32" x 3/4", Slotted

1шт.

13

K919761

LEVER

hand, used with 1210, 1210G and 1210Q four-wheel drive tractors with serial numbers, Serial Range: prior-11158600

1шт.

14

K919763

BUTTON

KNOB hand, used with 1210, 1210G and 1210Q four-wheel drive tractors with serial numbers, Serial Range: prior-11158600

1шт.

A10916

RING, SNAP

1/2 inch, used with 1210, 1210G and 1210Q four-wheel drive tractors with serial numbers prior to 11158600 (Replaces ring K621790)

1шт.

15

K954077

SHAFT

bevel pinion, used with 1210Q and 1210Sk four-wheel drive tractors with serial number 11158600 and after

1шт.

K961396

PIN roll, 5 x 25 mm, used with 1210Q and 1210Sk four-wheel drive tractors with serial number 11158600 and after

1шт.

16

K924723

SPRING

LATCH, used with 1210, 1210G and 1210Q four-wheel drive tractors with serial numbers, Serial Range: prior-11158600

1шт.

17

K921914

FORK

END

1шт.

18

K948353

PIVOT PIN

PIN pivot, 5/8 x 2-1/4 inch

1шт.

19

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, (Replaces pin K623740) 3/16" x 7/8", Slotted

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

3шт.

20

K955376

NUT

adjusting, slotted, used with serial number 11158038 and after

1шт.

20

K918723

NUT

adjusting, standard, used with 1210, 1210G and 1210Q four-wheel drive tractors with serial numbers prior to 11158038 (Replaces nut K940614)

1шт.

K954564

ROD

ASSEMBLY lift, used with 1210, 1210G and 1210Q four-wheel drive tractors with serial number 11158038 and after, Includes: Ref. 21 - 26 and Fitting

1шт.

K955376

NUT

ROD ASSEMBLY lift, used with 1210Sk four-wheel drive tractors with serial number 11158038 and after, Includes: Ref. 21 - 26 and Fitting

1шт.

K940506

ROD

ASSEMBLY lift,used with 1210, 1210G and 1210Q four-wheel drive tractors with S/N prior to 11158038, no longer available as an assy., order screw K962976, Ref. 21; tube K940509, Ref. 22; end K921914, Ref. 24 and fitting 219-8, Includes: Ref 21-26 & Fitting

1шт.

21

K962976

ADJUSTMENT SCREW

adjusting, 1 x 11-7/8 inch

1шт.

22

K940509

TUBE,1.75" DIA x 7.125" L

1-3/4 x 7-1/8 inch

1шт.

23

K955376

NUT

adjusting, slotted, used with serial number 11158038 and after

1шт.

23

K918723

NUT

adjusting, standard, used with 1210, 1210G and 1210Q four-wheel drive tractors with serial numbers prior to 11158038 (Replaces nut K940614)

1шт.

K954080

BUSHING

TUBE spacer, lift rod, used with 1210Sk four-wheel drive tractors, no longer available

1шт.

24

K921914

FORK

END

1шт.

25

K948353

PIVOT PIN

pivot, 5/8 x 2-1/4 inch

1шт.

26

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, (Replaces pin K623740) 3/16" x 7/8", Slotted

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

2шт.

Выбрано товаров: 40
