Запчасти Case IH 1210 (8-44) - LEVELING LEVER AND LIFT ROD (08) - HYDRAULICS

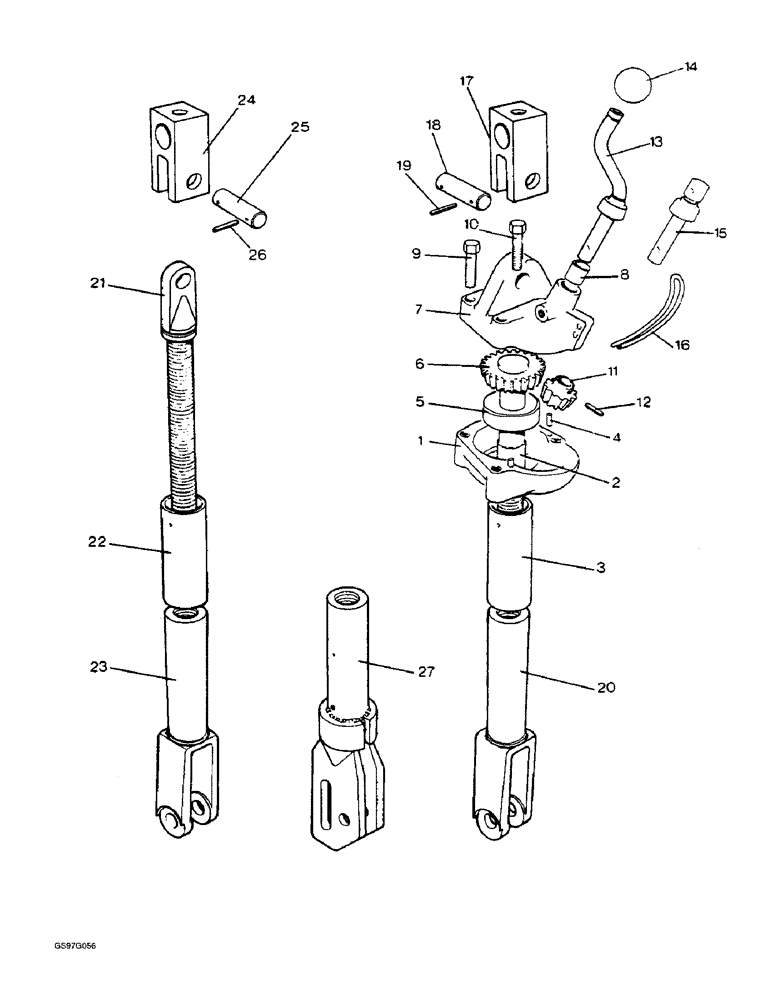

Схема запчастей Case IH 1210 - (8-44) - LEVELING LEVER AND LIFT ROD (08) - HYDRAULICS
25
17
22
19
16
27
5
20
18
2
1
11
15
26
3
4
8
24
13
9
7
14
10
21
12
6
23

Артикул

Название

Примечание

Количество

K954076

LEVER

ASSEMBLY levelling, used with 1210Q and 1212Q tractors with serial number 11158600 and after, 1210Sk and 1212Sk tractors, no longer available as an assembly, order components, Includes: Ref. 1 - 20

1шт.

K940507

LEVER

ASSEMBLY levelling, used with 1210Q and 1212Q tractors with serial numbers prior to 11158600; 1210, 1212, 1210G and 1212G tractors, no longer available as an assembly, order components, Includes: Ref. 1 - 20

1шт.

1

K962975

HOUSING

ASSEMBLY gear, Includes Ref. 2 - 4

1шт.

2

K621339

BUSHING

gear housing

1шт.

3

K940510

TUBE,1.75" ID x 6.187" L

gear housing, 1-3/4 x 6-3/4 inch

1шт.

4

K32063

PIN

dowel, 3/16 x 1/2 inch

2шт.

5

K19187

THRUST BEARING

thrust

1шт.

6

K924725

SHAFT

SCREW leveling, 1 x 10-1/4 inch

1шт.

7

K962691

COVER

CAP ASSEMBLY gear housing, Includes: Ref. 8

1шт.

8

K621340

BUSHING

cap

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, cap to gear housing, 3/8 NC x 1-1/2 inch (Replaces bolt K600404)

2шт.

10

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex, cap to gear housing, 3/8 NC x 1-7/8 inch (Replaces bolt K600407)

2шт.

492-11038

LOCK WASHER,3/8"

cap to gear housing 3/8"

4шт.

11

K919769

GEAR

PINION bevel

1шт.

12

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, (Replaces pin K623741) 5/32" x 3/4", Slotted

1шт.

13

K919761

LEVER

hand, with knob, used with 1210, 1212, 1210G and 1212G tractors

1шт.

14

K919763

BUTTON

KNOB ASSEMBLY hand lever, used with 1210, 1212, 1210G and 1212G tractors, Includes: Ring

1шт.

K621790

RING, SNAP

1/2 inch

1шт.

15

K954077

SHAFT

bevel pinion, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors

1шт.

K691396

PIN roll, 5 x 25 mm, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

16

K924723

SPRING

LATCH, used with 1210, 1212, 1210G and 1212G tractors

1шт.

17

K921914

FORK

END

1шт.

18

K948353

PIVOT PIN

pivot, 5/8 x 2-1/4 inch

1шт.

19

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, (Replaces pin K623740) 3/16" x 7/8", Slotted

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

3шт.

20

K918723

NUT

Adjusting, Standard (Replaces nut K940614)

1шт.

K940506

ROD

ASSEMBLY lift, used with 1210Q, 1212Q, 1210, 1212, 1210G and 1212G tractors, no longer available as an assembly, order screw K962976, Ref. 21; tube K940509, Ref. 22; end K921914, Ref. 24 and fitting 219-8, Includes: Ref. 21 - 26 and Fitting

1шт.

K940507

LEVER

ROD ASSEMBLY lift, used with 1210Sk and 1212Sk tractors, Includes: Ref. 21 - 26 and Fitting

1шт.

21

K962976

ADJUSTMENT SCREW

adjusting, 1 x 11-7/8 inch

1шт.

22

K940509

TUBE,1.75" DIA x 7.125" L

1-3/4 x 7-1/8 inch

1шт.

23

K940614

CLEVIS

NUT adjusting, standard

1шт.

K954080

BUSHING

TUBE spacer, lift rod, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

24

K921914

FORK

END

1шт.

25

K948353

PIVOT PIN

pivot, 5/8 x 2-1/4 inch

1шт.

26

K623740

SPLIT PIN/SAFETY PIN

roll, 3/16 x 7/8 inch

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

2шт.

27

K945967

CLEVIS

NUT adjusting, slotted, used with 1210Q, 1212Q, 1210, 1212, 1210G and 1212G tractors

2шт.

Выбрано товаров: 37
